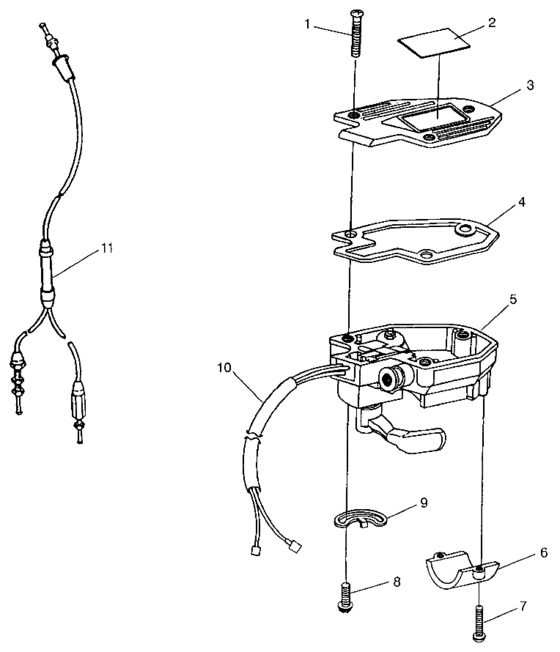

Controls (THROTTLE ASM./CABLE XPRESS 300 W969530 and XPRESS 400 W969540) Diagram Polaris XPRESS 400
- Model code
- W969540
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2010079
Screw,button head
|
2010079 |
— | ||
|
2
|
2
7072724
Decal,throttle(eng,)
No Longer Available; ENG.; |
7072724 |
— | ||
|
3
|
3
2010080
Cap
|
2010080 |
— | ||
|
4
|
4
2010081
Packing,throttle
|
2010081 |
— | ||
|
5
|
5
2010159
Throttle control asm
Incl. 1-10; |
2010159 |
— | ||
|
6
|
6
2010078 Holder |
2010078 |
US $16.24 |
||
|
7
|
7
2010077 Screw, sems10; |
2010077 |
US $3.75 |
||
|
8
|
8
2010076 Bolt, hex |
2010076 |
US $5.22 |
||
|
9
|
9
2010075
Plate
|
2010075 |
— | ||
|
10
|
10
4110203
Switch
|
4110203 |
— | ||
|
11
|
11
7080570
Cable,throttle
400; |
7080570 |
— | ||
|
11
|
11
7080615 Cable,throttle,(gen iv,300)GEN IV,300;300; |
7080615 |
US $193.31 |
