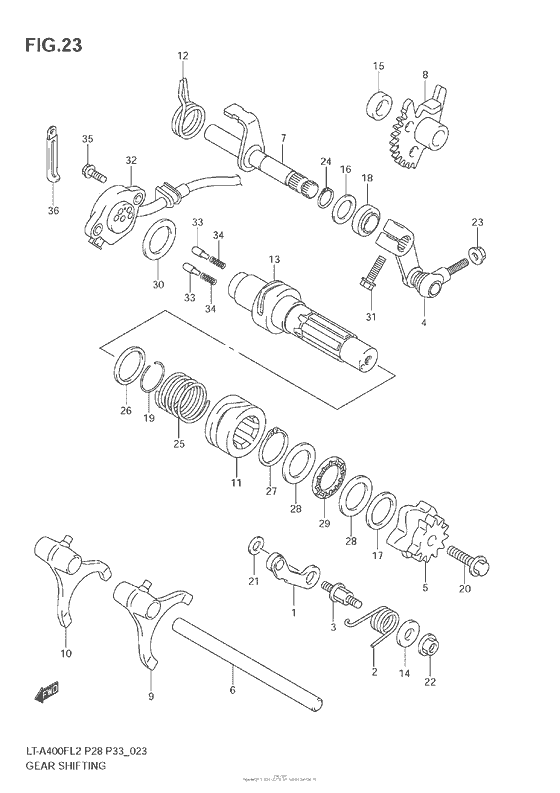

Gear Shifting Diagram Suzuki LT-A400FL
- Year
- 2012
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25350-26D01-000 STOPPER,GEAR SHIFT CAMStopper, shift cam |
25350-26D01-000 |
from US $10.08 |
||
|
2
|
2
25355-38F00-000 SPRING,GEAR SHIFT CAM STOPPERSpring, gr shift cam |
25355-38F00-000 |
from US $2.72 |
||
|
3
|
3
25356-12C00-000 SUPPORT,CAM STOPPER ARMSupport, cam stopper |
25356-12C00-000 |
from US $7.84 |
||
|
4
|
4
25360-11H10-000 ARM,SUB T/M GEAR SHIFT TArm, seledt |
25360-11H10-000 |
from US $37.90 |
||
|
5
|
5
25381-38F10-000 PLATE,GEAR SHIFT CAM STOPPER |
25381-38F10-000 |
US $26.13 |
||
|
6
|
6
25411-18900-000 SHAFT,GEAR SHIFT FORKShaft, gear shift fork |
25411-18900-000 |
from US $10.82 |
||
|
7
|
7
25510-27H00-000 SHAFT,GEAR SHIFT |
25510-27H00-000 |
US $38.64 |
||
|
8
|
8
25540-27H00-000 GEAR,SUB T/M SHIFT |
25540-27H00-000 |
US $16.23 |
||
|
9
|
9
29511-44D00-000 FORK,SUB T/M GEAR SHIFTFork, gear shift |
29511-44D00-000 |
from US $43.06 |
||
|
10
|
10
29511-44D00-000 FORK,SUB T/M GEAR SHIFTFork, gear shift |
29511-44D00-000 |
from US $43.06 |
||
|
11
|
11
29611-27H00-000 CAM,SUB T/M GEAR SHIFT |
29611-27H00-000 |
from US $41.95 |
||
|
12
|
12
29613-31G00-000 SPRING,SHIFT ARM RETURN |
29613-31G00-000 |
from US $3.31 |
||
|
13
|
13
29620-27H01-000 SHAFT,SUB T/M GEAR SHIFT |
29620-27H01-000 |
from US $83.54 |
||
|
14
|
14
09160-06022-000 WASHER(6.5X16X2.3)Washer, spring stopper |
09160-06022-000 |
US $11.40 |
||
|
15
|
15
09180-12100-000 SPACER(12X22X8.0)Spacer, sub t/m gear |
09180-12100-000 |
from US $7.28 |
||
|
16
|
16
09181-12167-000 SHIM(12X20X1)Washer, oil pump driven gear (12x20x1) |
09181-12167-000 |
from US $1.82 |
||
|
17
|
17
09181-20158-000 SHIM(20X28X0.5)Shim, fwd (t:0.5) |
09181-20158-000 |
from US $4.13 |
||
|
18
|
18
09285-12006-000 SEAL,OIL(12X22X9)Oil seal (12x22x9) |
09285-12006-000 |
from US $2.58 |
||
|
19
|
19
09380-25012-000 CIRCLIPC-ring, t/m cam stop |
09380-25012-000 |
from US $3.37 |
||
|
20
|
20
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
21
|
21
08211-06141-000 WASHERWasher |
08211-06141-000 |
from US $2.52 |
||
|
22
|
22
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
24
|
24
08331-3112A-000 CIRCLIP |
08331-3112A-000 |
from US $0.91 |
||
|
25
|
25
29612-38F00-000 SPRING,SUB T/M SHIFT CAMSpring, sub t/m shift cam |
29612-38F00-000 |
US $2.13 |
||
|
26
|
26
09181-25139-000 SHIM(25X32X1)Washer, shift cam spring |
09181-25139-000 |
from US $4.10 |
||
|
27
|
27
08331-3125A-000
Circlip, gear shift cam
|
08331-3125A-000 |
— | ||
| replacement | |||||
|
27
|
27
08331-31259-000 CIRCLIP |
08331-31259-000 |
from US $1.38 |
||
|
28
|
28
09181-20251-000 SHIM(20X34X1)Shim (t:1.0) |
09181-20251-000 |
from US $1.62 |
||
|
29
|
29
09263-20014-000 BEARING(20X35X2)Bearing, pinion thrust |
09263-20014-000 |
from US $14.24 |
||
|
30
|
30
09181-25167-000 SHIM(25X34X1)Washer, shift shaft |
09181-25167-000 |
from US $1.82 |
||
|
31
|
31
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
32
|
32
37720-27H00-000 BASE ASSY,GEAR SHIFT TERMINAL |
37720-27H00-000 |
from US $72.13 |
||
|
33
|
33
09209-05011-000 PIN(5X15.5)Contact |
09209-05011-000 |
from US $1.51 |
||
|
34
|
34
09440-04010-000 SPRING |
09440-04010-000 |
from US $1.06 |
||
|
35
|
35
07120-0516A-000 BOLT |
07120-0516A-000 |
from US $3.59 |
||
|
36
|
36
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
