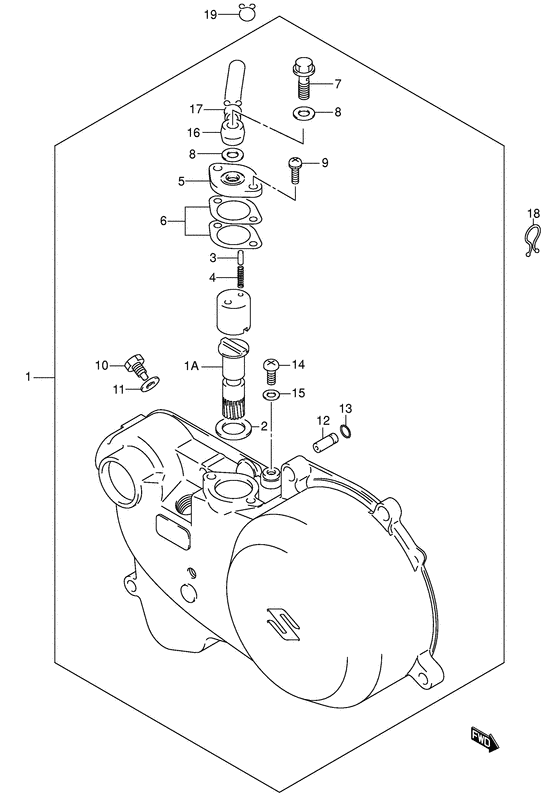

Clutch cover/oil pump Diagram Suzuki LT-A50 QuadMaster
- Model code
- LT-A50 K5
- Engine Capacity
- 82
- Year
- 2005
- Sales region
- UK (P2)
- Frame
- LM4AA123*5110001~
- Power
- 7,3 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-04893-000 Clutch cover setModel k2/k3, inc. clutch cover |
11300-04893-000 |
US $158.15 |
||
| replacement | |||||
|
1
|
1
11300-04894-000 COVER SET,CLUTCHModel k2/k3, inc. clutch cover |
11300-04894-000 |
from US $158.15 |
||
|
1
|
1
11301-04810-000 COVER SET,CLUTCHModel k4/k5, inc. clutch cover |
11301-04810-000 |
US $158.15 |
||
|
1A
|
1A
16161-04000-000 GEAR,OIL PUMP DRIVENt:23 |
16161-04000-000 |
from US $26.31 |
||
|
2
|
2
09284-12004-000 SEAL,OIL(12X18.5X3)Oil seal (12x18.5x3); |
09284-12004-000 |
from US $3.04 |
||
|
3
|
3
09261-02006-000 PIN(2.3X7.5) |
09261-02006-000 |
from US $2.35 |
||
|
4
|
4
09440-01001-000 SPRING |
09440-01001-000 |
from US $2.35 |
||
|
5
|
5
16251-04000-000
CAM,OIL PUMP
|
16251-04000-000 |
— | ||
|
6
|
6
16731-04000-H17 GASKET,OIL PUMP |
16731-04000-H17 |
from US $1.52 |
||
|
7
|
7
09360-06003-000 UNIONUnion bolt Union bolt; |
09360-06003-000 |
from US $6.02 |
||
|
8
|
8
09168-06004-000 GASKET(6.2X11X1.2)Washer (6x11.8x1.5) |
09168-06004-000 |
from US $1.06 |
||
|
9
|
9
02112-34123-000
Screw
|
02112-34123-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-3412B-000 SCREW |
02112-3412B-000 |
from US $3.15 |
||
|
10
|
10
09135-06007-000 BOLT(6X10) |
09135-06007-000 |
from US $3.42 |
||
|
11
|
11
09164-06003-000 WASHERGasket |
09164-06003-000 |
from US $2.82 |
||
|
12
|
12
16710-04010-000 VALVE,CRANK CHECK |
16710-04010-000 |
from US $8.83 |
||
|
13
|
13
09280-03003-000 O RING(D:1.05,ID:3.1) |
09280-03003-000 |
from US $2.62 |
||
|
14
|
14
02112-05083-000
Screw
Screw; |
02112-05083-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-0508A-000 SCREWScrew; |
02112-0508A-000 |
from US $0.80 |
||
|
15
|
15
09168-05001-000 GASKET(5X9.5X1)Gasket (5x9.5x1) Gasket (5x9.5x1); |
09168-05001-000 |
from US $2.72 |
||
|
16
|
16
16810-04420-000
HOSE,OIL NO.1
Hose, oil (l:320->75); |
16810-04420-000 |
— | ||
|
17
|
17
09401-08401-000 CLIPClip, fuel hose Clip; |
09401-08401-000 |
from US $0.96 |
||
|
18
|
18
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) |
09408-00012-000 |
from US $3.37 |
||
|
19
|
19
09401-08401-000 CLIPClip, fuel hose Clip; |
09401-08401-000 |
from US $0.96 |
||
