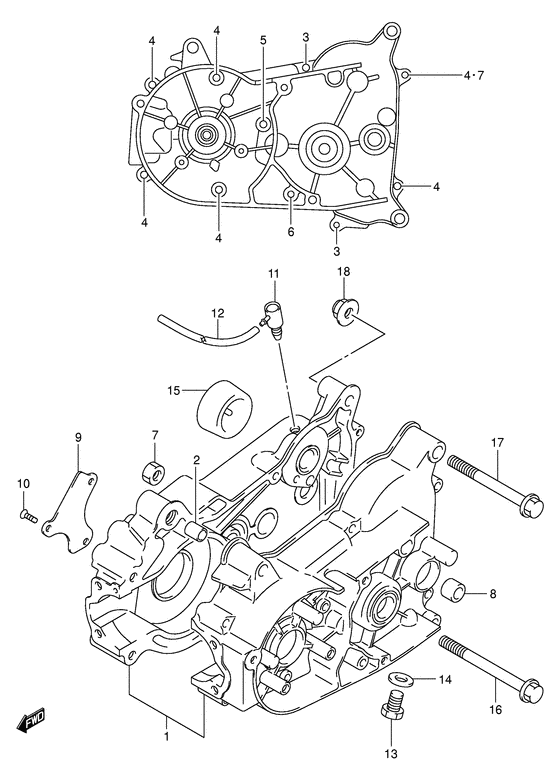

Crankcase Diagram Suzuki LT-A50 QuadMaster
- Model code
- LT-A50 K5
- Engine Capacity
- 82
- Year
- 2005
- Sales region
- US/Canada (P3/P28)
- Frame
- LM4AA123*5110001~
- Power
- 7,3 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-04883-000
Crankcase set
|
11300-04883-000 |
— | ||
| replacement | |||||
|
1
|
1
11300-04884-000 CRANKCASE SET |
11300-04884-000 |
from US $318.32 |
||
|
2
|
2
04211-11129-000 PIN |
04211-11129-000 |
from US $0.95 |
||
|
3
|
3
02112-06303-000
Screw
Screw; |
02112-06303-000 |
— | ||
| replacements | |||||
|
3
|
3
02112-0630B-000 SCREWScrew; |
02112-0630B-000 |
US $0.76 |
||
|
3
|
3
02112-0630A-000 SCREWScrew; |
02112-0630A-000 |
from US $0.80 |
||
|
4
|
4
02112-06353-000
Screw
Screw; |
02112-06353-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0635B-000 SCREWScrew; |
02112-0635B-000 |
from US $0.77 |
||
|
5
|
5
02112-06403-000
Screw
|
02112-06403-000 |
— | ||
| replacements | |||||
|
5
|
5
02112-0640B-000 SCREW |
02112-0640B-000 |
US $0.80 |
||
|
5
|
5
02112-0640A-000 SCREW |
02112-0640A-000 |
from US $0.80 |
||
|
6
|
6
02112-06553-000
Screw
|
02112-06553-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0655B-000 SCREW |
02112-0655B-000 |
from US $1.51 |
||
|
7
|
7
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
7
|
7
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
7
|
7
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
8
|
8
09304-10005-000 BUSHBush, counter shaft Bush, counter shaft; |
09304-10005-000 |
from US $7.70 |
||
|
9
|
9
12521-04000-000 PLATE,OIL RESERVOIR |
12521-04000-000 |
US $5.70 |
||
|
10
|
10
02122-04103-000
Screw
|
02122-04103-000 |
— | ||
| replacement | |||||
|
10
|
10
02122-0410A-000 SCREWScrew (4x10) |
02122-0410A-000 |
from US $0.80 |
||
|
11
|
11
24821-45100-000 BPLUG,BEVEL GEAR BREATHERPlug, breather Plug, breather; |
24821-45100-000 |
from US $5.63 |
||
|
12
|
12
09352-20503-600
HOSE(2X5X600)
Hose, breather (l:600); L:600->30 |
09352-20503-600 |
— | ||
| replacement | |||||
|
12
|
12
09352-20504-600 Hose(2X5X600)Hose, breather (l:600); L:600->30 |
09352-20504-600 |
from US $2.43 |
||
|
13
|
13
09247-10008-000 PLUG(10X12)Plug, drain Plug, oil drain; Model k2 |
09247-10008-000 |
from US $1.52 |
||
|
13
|
13
09247-10001-000 PLUGPlug, oil drain Plug, oil drain; Model k3/k4/k5 |
09247-10001-000 |
from US $3.03 |
||
|
14
|
14
09168-10002-000 GASKET(10X14X3.6)Gasket |
09168-10002-000 |
from US $1.67 |
||
|
15
|
15
24829-04410-000 SEPARATOR,BREATHERSeparator, breather; |
24829-04410-000 |
from US $3.97 |
||
|
16
|
16
09103-08158-000 BOLT(8X75)Bolt, bal housing no.2 (8x75) Bolt (l:75); |
09103-08158-000 |
from US $9.01 |
||
|
17
|
17
01550-08703-000
Bolt
Bolt (l:70); |
01550-08703-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-0870B-000 BoltBolt, sec case Bolt (l:70); |
01550-0870B-000 |
from US $3.62 |
||
|
18
|
18
08319-31083-000
Nut
|
08319-31083-000 |
— | ||
| replacement | |||||
|
18
|
18
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
