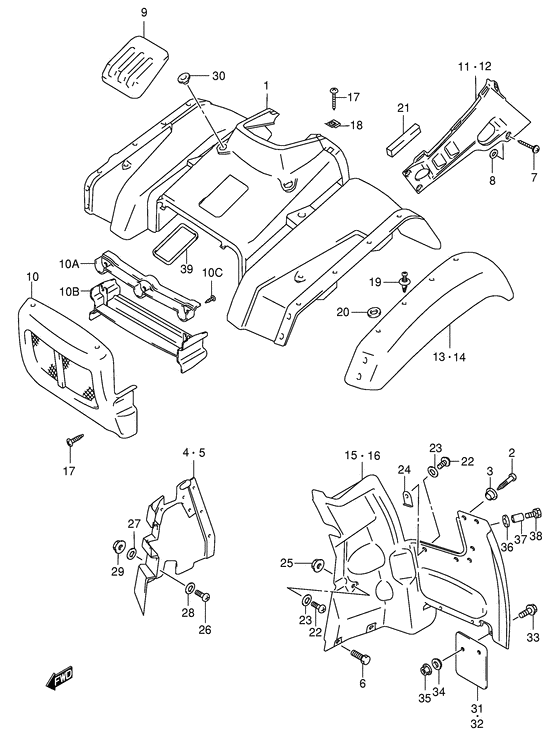

Front fender Diagram Suzuki LT-A500 QuadMaster
- Model code
- LT-A500F Y
- Engine Capacity
- 493
- Year
- 2000
- Sales region
- USA/Canada (E3/E28)
- Frame
- JSAAM42A*Y2100001~
- Model
- QuadMaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-09F02-Y9N
FENDER,FR
Fender, front (green); |
53111-09F02-Y9N |
— | ||
|
1
|
1
53111-09F02-Y9P
Fender, front (red)
Fender, front (red); |
53111-09F02-Y9P |
— | ||
|
2
|
2
02142-16163-000
Screw 6x 16
|
02142-16163-000 |
— | ||
| replacement | |||||
|
2
|
2
02142-1616B-000 SCREW |
02142-1616B-000 |
from US $3.15 |
||
|
3
|
3
09169-06057-000 WASHER |
09169-06057-000 |
from US $1.76 |
||
|
4
|
4
53411-09F01-000
MUDFLAP,FR FENDER,R
|
53411-09F01-000 |
— | ||
|
5
|
5
53421-09F01-000
Mudflap, inner lh
|
53421-09F01-000 |
— | ||
|
6
|
6
09111-06063-000
Bolt,6x14
Bolt, lower; |
09111-06063-000 |
— | ||
| replacement | |||||
|
6
|
6
09111-06085-000 BOLT(6X12)Bolt, lower; |
09111-06085-000 |
from US $2.40 |
||
|
7
|
7
03241-15203-000
Screw, inner
|
03241-15203-000 |
— | ||
| replacement | |||||
|
7
|
7
03241-1520B-000 SCREW |
03241-1520B-000 |
from US $4 |
||
|
8
|
8
53275-09FA0-000
Washer, inner
|
53275-09FA0-000 |
— | ||
| replacement | |||||
|
8
|
8
53275-09FAV-000
WASHER,FR FENDER IN
|
53275-09FAV-000 |
— | ||
|
9
|
9
53341-09F00-Y9N
LID,FR FENDER
Lid (green); |
53341-09F00-Y9N |
— | ||
|
9
|
9
53341-09F00-Y9P
Lid (red)
Lid (red); |
53341-09F00-Y9P |
— | ||
|
10
|
10
53118-09F00-Y0J
Fender, front center (gray)
Fender, front center (gray); Model y |
53118-09F00-Y0J |
— | ||
| replacement | |||||
|
10
|
10
53118-09F01-Y0J
FENDER,FR CTR
Fender, front center (gray); Model y |
53118-09F01-Y0J |
— | ||
|
10
|
10
53118-09F01-Y0J
FENDER,FR CTR
Fender, front center (gray); Model k1 |
53118-09F01-Y0J |
— | ||
|
10A
|
10A
53117-09F00-000
FIN,UPR
Model k1 |
53117-09F00-000 |
— | ||
|
10B
|
10B
53119-09F00-000
FIN,UPR
Model k1 |
53119-09F00-000 |
— | ||
|
10C
|
10C
03541-05163-000
Screw
Model k1 |
03541-05163-000 |
— | ||
| replacement | |||||
|
10C
|
10C
03541-0516A-000 SCREWModel k1 |
03541-0516A-000 |
from US $0.68 |
||
|
11
|
11
53112-09FA0-Y0J
COVER,FR FENDER SIDE,R
Cover, front fender rh (gray); |
53112-09FA0-Y0J |
— | ||
|
12
|
12
53122-09FA0-Y0J
COVER,FR FENDER SIDE,L
Cover, front fender lh (gray); |
53122-09FA0-Y0J |
— | ||
|
13
|
13
53331-09F00-Y0J MUDGUARD,FR FENDER FR,RMudguard, front rh (gray) Mudguard, front rh (gray); |
53331-09F00-Y0J |
from US $102.30 |
||
|
14
|
14
53332-09F00-Y0J
MUDGUARD,FR FENDER FR,L
Mudguard, front lh (gray); |
53332-09F00-Y0J |
— | ||
|
15
|
15
53311-09FA0-Y0J
MUDFLAP,FR FENDER,R
Mudflap, fender rh (gray); |
53311-09FA0-Y0J |
— | ||
|
16
|
16
53312-09FA0-Y0J
MUDFLAP,FR FENDER,L
Mudflap, fender lh (gray); |
53312-09FA0-Y0J |
— | ||
|
17
|
17
03241-15163-000
Screw, side panel
|
03241-15163-000 |
— | ||
| replacement | |||||
|
17
|
17
03241-1516A-000 SCREWScrew, cover rear |
03241-1516A-000 |
from US $0.76 |
||
|
18
|
18
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
19
|
19
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
20
|
20
08322-01083-000
WASHER
Washer, front; |
08322-01083-000 |
— | ||
| replacements | |||||
|
20
|
20
08322-0108B-000 WASHERWasher, front; |
08322-0108B-000 |
from US $0.80 |
||
|
20
|
20
08322-0108A-000 WASHERWasher, front; |
08322-0108A-000 |
from US $0.80 |
||
|
21
|
21
94475-21E00-000 CUSHIONCushion, side; |
94475-21E00-000 |
from US $6.84 |
||
|
22
|
22
09136-05038-000 SCREW(5X16)Screw, mudflap; |
09136-05038-000 |
from US $4.74 |
||
|
23
|
23
09160-05046-000 WASHER(5.5X20X1.4) |
09160-05046-000 |
from US $3.20 |
||
|
24
|
24
63332-09F00-000
PLATE,FENDER MAD GUARD
|
63332-09F00-000 |
— | ||
|
25
|
25
09159-05043-000 NUT |
09159-05043-000 |
from US $12.10 |
||
|
26
|
26
09139-05037-000 SCREW(5X18)Screw, mudflap inner; |
09139-05037-000 |
from US $1.28 |
||
|
27
|
27
09160-08123-000 WASHER(8.5X20X1.2)Washer |
09160-08123-000 |
from US $0.77 |
||
|
28
|
28
09160-05046-000 WASHER(5.5X20X1.4) |
09160-05046-000 |
from US $3.20 |
||
|
29
|
29
09159-05043-000 NUT |
09159-05043-000 |
from US $12.10 |
||
|
30
|
30
09250-24004-000
GROMMET(OD:32)
|
09250-24004-000 |
— | ||
|
31
|
31
53411-09FA0-Y0J MUDFLAP,LWR,RMudflap, lower rh (gray) Mudflap, lower rh (gray); |
53411-09FA0-Y0J |
from US $9.53 |
||
|
32
|
32
53421-09FA0-Y0J
Mudflap, lower lh (gray)
Mudflap, lower lh (gray); |
53421-09FA0-Y0J |
— | ||
|
33
|
33
09136-05038-000 SCREW(5X16) |
09136-05038-000 |
from US $4.74 |
||
|
34
|
34
09160-05046-000 WASHER(5.5X20X1.4) |
09160-05046-000 |
from US $3.20 |
||
|
35
|
35
09159-05043-000 NUT |
09159-05043-000 |
from US $12.10 |
||
|
36
|
36
53121-26F00-000 CUSHION,FR FENDER OUTCushion, outer Cushion, outer; |
53121-26F00-000 |
from US $3.83 |
||
|
37
|
37
09180-06247-000 SPACER(6.1X8X7) |
09180-06247-000 |
from US $3.96 |
||
|
38
|
38
09116-06149-000 BOLT(6X20) |
09116-06149-000 |
from US $5.17 |
||
|
39
|
39
53145-09F00-000
CUSHION,FR FENDER CTR
|
53145-09F00-000 |
— | ||
