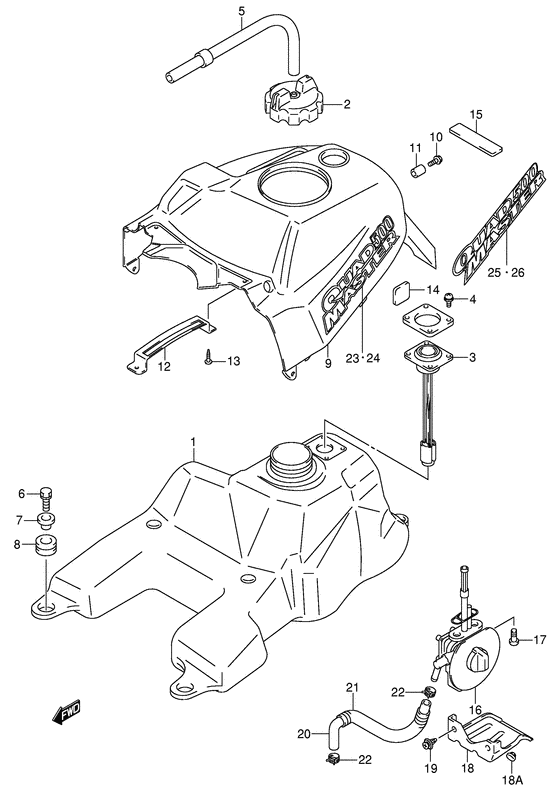

Fuel tank Diagram Suzuki LT-A500 QuadMaster
- Model code
- LT-A500F Y
- Engine Capacity
- 493
- Year
- 2000
- Sales region
- USA/Canada (E3/E28)
- Frame
- JSAAM42A*Y2100001~
- Model
- QuadMaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-09FA0-000
Tank assy, fuel
Tank assy, fuel; Model y |
44100-09FA0-000 |
— | ||
| replacement | |||||
|
1
|
1
44100-09FA1-000
TANK ASSY,FUEL
Tank assy, fuel; Model y |
44100-09FA1-000 |
— | ||
|
1
|
1
44100-09FA1-000
TANK ASSY,FUEL
Model k1 |
44100-09FA1-000 |
— | ||
|
2
|
2
44200-20B00-000 CAP,FUEL TANKCap, fuel tank |
44200-20B00-000 |
from US $47.84 |
||
|
3
|
3
44580-09FA0-000
Gauge, fuel level
|
44580-09FA0-000 |
— | ||
| replacement | |||||
|
3
|
3
44580-09FA1-000 GAUGE ASSY,FUEL LEVEL |
44580-09FA1-000 |
from US $51.52 |
||
|
4
|
4
02112-76163-000
Screw
|
02112-76163-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-7616A-000 SCREW |
02112-7616A-000 |
from US $0.96 |
||
|
5
|
5
44433-09FA0-000
HOSE,FUEL TANK BREATHER
|
44433-09FA0-000 |
— | ||
| replacement | |||||
|
5
|
5
44433-09FA1-000 Hose,fuel Tank Breather |
44433-09FA1-000 |
US $11.41 |
||
|
6
|
6
01570-08353-000
Bolt
|
01570-08353-000 |
— | ||
| replacement | |||||
|
6
|
6
01570-0835A-000 Bolt |
01570-0835A-000 |
from US $5.07 |
||
|
7
|
7
09180-08174-000 SPACER(8.6X12X16.1) |
09180-08174-000 |
from US $9.57 |
||
|
8
|
8
09320-12016-000 CUSHIONCushion |
09320-12016-000 |
from US $3.21 |
||
|
9
|
9
44271-09FA0-Y9N
Cover, fuel tank (green)
Cover, fuel tank (green); |
44271-09FA0-Y9N |
— | ||
|
9
|
9
44271-09FA0-Y9P
COVER,FUEL TANK
Cover, fuel tank (red); |
44271-09FA0-Y9P |
— | ||
|
10
|
10
01550-06203-000
Bolt
Bolt, rear; |
01550-06203-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-0620B-000 BOLTBolt, inspection cap Bolt, rear; |
01550-0620B-000 |
from US $0.76 |
||
|
11
|
11
09180-06267-000 SPACER(6.5X9X12.5) |
09180-06267-000 |
from US $1.54 |
||
|
12
|
12
57950-09FA0-000
PLATE,REVERSE LEVER
|
57950-09FA0-000 |
— | ||
|
13
|
13
03541-04123-000
Screw
|
03541-04123-000 |
— | ||
| replacements | |||||
|
13
|
13
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
13
|
13
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.80 |
||
|
14
|
14
44281-29C00-000 CushionCushion, duct ctr connector Cushion, side; |
44281-29C00-000 |
from US $1.52 |
||
| replacement | |||||
|
14
|
14
63191-25C00-000 CUSHIONCushion, guard Cushion, side; |
63191-25C00-000 |
from US $1.92 |
||
|
15
|
15
47451-38A01-000 CUSHION,TOOL HOLDERCushion, no.2 |
47451-38A01-000 |
from US $2.39 |
||
|
16
|
16
44300-09FA0-000
COCK ASSY,FUEL
|
44300-09FA0-000 |
— | ||
| replacement | |||||
|
16
|
16
44300-09FA1-000 Cock Assy,fuel |
44300-09FA1-000 |
from US $113.71 |
||
|
17
|
17
02112-36163-000
Screw
|
02112-36163-000 |
— | ||
| replacements | |||||
|
17
|
17
02112-3616B-000 SCREW |
02112-3616B-000 |
from US $0.80 |
||
|
17
|
17
02112-3616A-000 SCREW |
02112-3616A-000 |
from US $3.11 |
||
|
18
|
18
44461-09FA0-000
Cover, fuel cock
Model y |
44461-09FA0-000 |
— | ||
| replacement | |||||
|
18
|
18
44461-09FA1-000
COVER,FUEL COCK
Model y |
44461-09FA1-000 |
— | ||
|
18
|
18
44461-09FA1-000
COVER,FUEL COCK
Model k1 |
44461-09FA1-000 |
— | ||
|
18A
|
18A
44462-09FA0-000
CUSHION,FUEL COCK COVER
Model k1 |
44462-09FA0-000 |
— | ||
|
19
|
19
09409-06322-5PK CLIP(BLACK)Clip (black) Clip (black); |
09409-06322-5PK |
from US $1.58 |
||
|
20
|
20
44421-09FA0-000 HOSE,FUELHose, fuel |
44421-09FA0-000 |
from US $8.61 |
||
|
21
|
21
44423-09FA0-000
Shield, hose heat
|
44423-09FA0-000 |
— | ||
| replacement | |||||
|
21
|
21
13684-38B10-000 SHIELD,FUEL HOSE HEATER |
13684-38B10-000 |
from US $13.98 |
||
|
22
|
22
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
| replacement | |||||
|
22
|
22
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
23
|
23
68111-09FA0-BH9
Emblem, tank cover rh
Model y for y9n |
68111-09FA0-BH9 |
— | ||
|
23
|
23
68111-09FA0-BJ1
Emblem, tank cover rh
Model y for y9p |
68111-09FA0-BJ1 |
— | ||
|
24
|
24
68121-09FA0-BH9
EMBLEM,FUEL TANK COV,L
Model y for y9n |
68121-09FA0-BH9 |
— | ||
|
24
|
24
68121-09FA0-BJ1
EMBLEM,FUEL TANK COV,L
Model y for y9p |
68121-09FA0-BJ1 |
— | ||
|
25
|
25
68111-09FC0-YR5
EMBLEM,TANK COVER,R(GREEN)
Model k1 for y9n |
68111-09FC0-YR5 |
— | ||
| replacement | |||||
|
25
|
25
68111-09FC1-YR5
New Genuine Part
Model k1 for y9n |
68111-09FC1-YR5 |
— | ||
|
25
|
25
68111-09FC0-YR6
Emblem, tank cover rh
Model k1 for y9p |
68111-09FC0-YR6 |
— | ||
| replacement | |||||
|
25
|
25
68111-09FC1-YR6
EMBLEM,FUEL TANK,R(RED)
Model k1 for y9p |
68111-09FC1-YR6 |
— | ||
|
26
|
26
68121-09FC0-YR5
Emblem, tank cover lh
Model k1 for y9n |
68121-09FC0-YR5 |
— | ||
| replacement | |||||
|
26
|
26
68121-09FC1-YR5
EMBLEM,FUEL TANK,L(GREEN)
Model k1 for y9n |
68121-09FC1-YR5 |
— | ||
|
26
|
26
68121-09FC0-YR6
Emblem, tank cover lh
Model k1 for y9p |
68121-09FC0-YR6 |
— | ||
| replacement | |||||
|
26
|
26
68121-09FC1-YR6
EMBLEM,FUEL TANK,L(RED)
Model k1 for y9p |
68121-09FC1-YR6 |
— | ||
