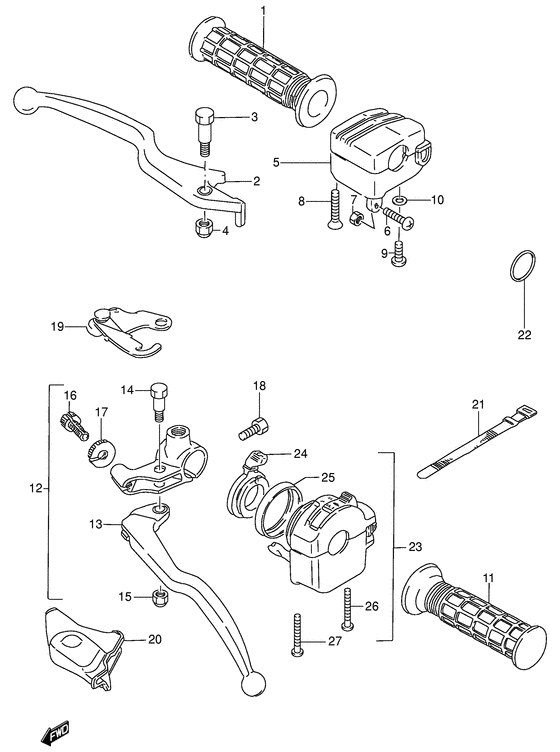

Handle lever Diagram Suzuki LT-A500 QuadMaster
- Model code
- LT-A500F Y
- Engine Capacity
- 493
- Year
- 2000
- Sales region
- USA/Canada (E3/E28)
- Frame
- JSAAM42A*Y2100001~
- Model
- QuadMaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57211-19A03-291
GRIP
Grip (black); |
57211-19A03-291 |
— | ||
| replacement | |||||
|
1
|
1
57211-19A04-291 GripGrip (black); |
57211-19A04-291 |
US $15.86 |
||
|
2
|
2
57421-39D10-000 LEVER,FR BRAKELever, brake Lever, brake; |
57421-39D10-000 |
from US $37.60 |
||
|
3
|
3
57431-13030-000
Screw, brake le
|
57431-13030-000 |
— | ||
| replacement | |||||
|
3
|
3
09111-06075-000 BOLT(6X28)Bolt |
09111-06075-000 |
from US $9.84 |
||
|
4
|
4
57433-09F00-000 NUT,LEVER PIVOT |
57433-09F00-000 |
from US $2.13 |
||
|
5
|
5
57100-39DB0-000 CASE ASSY,THROTTLE |
57100-39DB0-000 |
from US $64.03 |
||
|
6
|
6
09125-05066-000 SCREW(5X25) |
09125-05066-000 |
from US $0.81 |
||
|
7
|
7
09140-05006-000 NUT |
09140-05006-000 |
from US $3.47 |
||
|
8
|
8
02132-05307-000 SCREWScrew, case; |
02132-05307-000 |
from US $2.04 |
||
|
9
|
9
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
10
|
10
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
11
|
11
57211-19A03-291
GRIP
Grip (black); |
57211-19A03-291 |
— | ||
| replacement | |||||
|
11
|
11
57211-19A04-291 GripGrip (black); |
57211-19A04-291 |
US $15.86 |
||
|
12
|
12
57500-24502-000
LEVER ASSY,RR BRAKE
|
57500-24502-000 |
— | ||
|
13
|
13
57620-24501-000 LEVER,RR BRAKELever |
57620-24501-000 |
from US $40.95 |
||
|
14
|
14
57431-29502-000 BOLT,LEVER PIVOT |
57431-29502-000 |
from US $3.50 |
||
|
15
|
15
08319-21063-000
Nut
|
08319-21063-000 |
— | ||
| replacement | |||||
|
15
|
15
08319-2106B-000 NUT |
08319-2106B-000 |
from US $1.06 |
||
|
16
|
16
57441-44400-000 ADJUSTER,CABLEAdjuster Adjuster, cable; |
57441-44400-000 |
from US $3.04 |
||
|
17
|
17
57442-44400-000 NUT,CABLE ADJUSTER LOCKNut; |
57442-44400-000 |
US $2.66 |
||
| replacement | |||||
|
17
|
17
57442-11010-000 NUT,CABLE ADJUSTERNut Nut; |
57442-11010-000 |
from US $1.67 |
||
|
18
|
18
01500-06203-000
Bolt
|
01500-06203-000 |
— | ||
| replacement | |||||
|
18
|
18
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
19
|
19
57790-19B00-000
STOPPER,BRAKE LEVER
|
57790-19B00-000 |
— | ||
|
20
|
20
57541-29501-000 COVER,CLUTCH CABLE DUSTCover, brake dust |
57541-29501-000 |
from US $6.16 |
||
|
21
|
21
09407-12402-000 CLAMP(L:120)Clamp, wiring harness Clamp; |
09407-12402-000 |
from US $1.98 |
||
|
22
|
22
09280-24009-000 O RING(D:3.6,ID:23.5)O ring |
09280-24009-000 |
from US $10.85 |
||
|
23
|
23
37400-09F00-000
Switch assy, lh
|
37400-09F00-000 |
— | ||
| replacement | |||||
|
23
|
23
37400-09F02-000 SWITCH ASSY,HANDLE,L |
37400-09F02-000 |
from US $121.44 |
||
|
24
|
24
37571-19B01-000 LEVER,CHOKE |
37571-19B01-000 |
US $16.39 |
||
|
25
|
25
37576-19B01-000 COVER,CHOKE |
37576-19B01-000 |
from US $4.05 |
||
|
26
|
26
02112-05407-000 SCREW |
02112-05407-000 |
from US $2.99 |
||
|
27
|
27
02112-05457-000 SCREW |
02112-05457-000 |
from US $0.77 |
||
