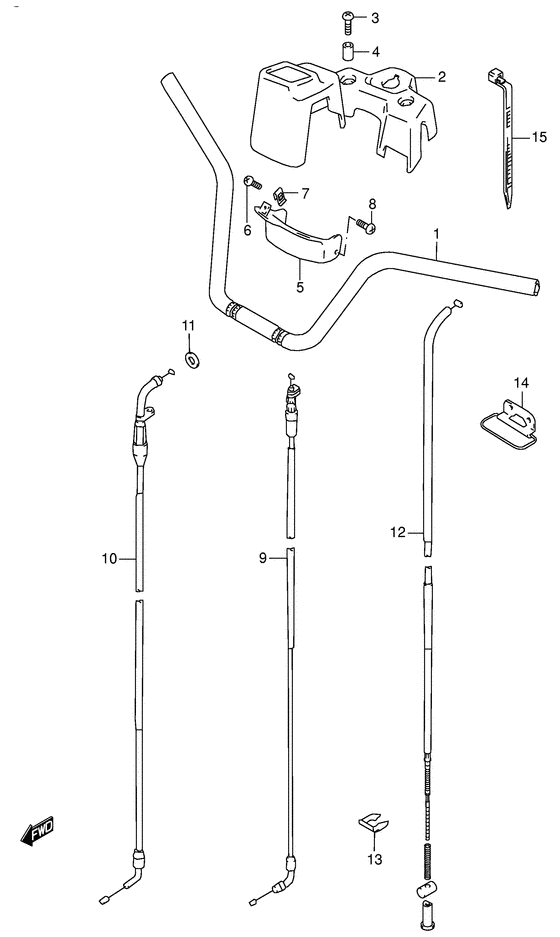

Handlebar Diagram Suzuki LT-A500 QuadMaster
- Model code
- LT-A500F Y
- Engine Capacity
- 493
- Year
- 2000
- Sales region
- USA/Canada (E3/E28)
- Frame
- JSAAM42A*Y2100001~
- Model
- QuadMaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-09FA0-000 HandlebarHandlebar; Model y |
56110-09FA0-000 |
US $113.17 |
||
| replacement | |||||
|
1
|
1
56110-09FA0-291 HANDLEBAR(BLACK)Handlebar; Model y |
56110-09FA0-291 |
from US $68.82 |
||
|
1
|
1
56110-09FA0-291 HANDLEBAR(BLACK)Handlebar (black); Model k1 |
56110-09FA0-291 |
from US $68.82 |
||
|
2
|
2
56171-09F00-000 COVER,STEERING HEADCover, head |
56171-09F00-000 |
from US $21.53 |
||
|
3
|
3
02142-06203-000
Screw
|
02142-06203-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0620A-000 SCREW |
02142-0620A-000 |
from US $0.68 |
||
|
4
|
4
09180-06248-000 SPACER(6.1X8X9.5) |
09180-06248-000 |
from US $1.68 |
||
|
5
|
5
56181-09F00-000 COVER,METER LWRCover, meter lower |
56181-09F00-000 |
US $23.43 |
||
|
6
|
6
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
7
|
7
09148-05020-000 NUT |
09148-05020-000 |
from US $0.91 |
||
|
8
|
8
02142-05123-000
Screw 5x12
Screw; |
02142-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0512A-000 SCREWScrew, lower Screw; |
02142-0512A-000 |
from US $0.80 |
||
|
9
|
9
58300-09F10-000
Cable assy, throttle
|
58300-09F10-000 |
— | ||
| replacement | |||||
|
9
|
9
58300-09FB0-000 Cable assy,throttle |
58300-09FB0-000 |
from US $23.87 |
||
|
10
|
10
58410-09F10-000 CABLE,STARTERCable assy, starter |
58410-09F10-000 |
from US $28.52 |
||
|
11
|
11
09320-06503-000 CUSHIONWasher |
09320-06503-000 |
from US $3.59 |
||
|
12
|
12
58810-09F10-000
CABLE,PARKING BRAKE
|
58810-09F10-000 |
— | ||
|
13
|
13
09383-19003-000 CLIP |
09383-19003-000 |
from US $6.38 |
||
|
14
|
14
58620-09F00-000
GUIDE,CABLE
|
58620-09F00-000 |
— | ||
|
15
|
15
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); |
09407-14403-000 |
from US $2.08 |
||
