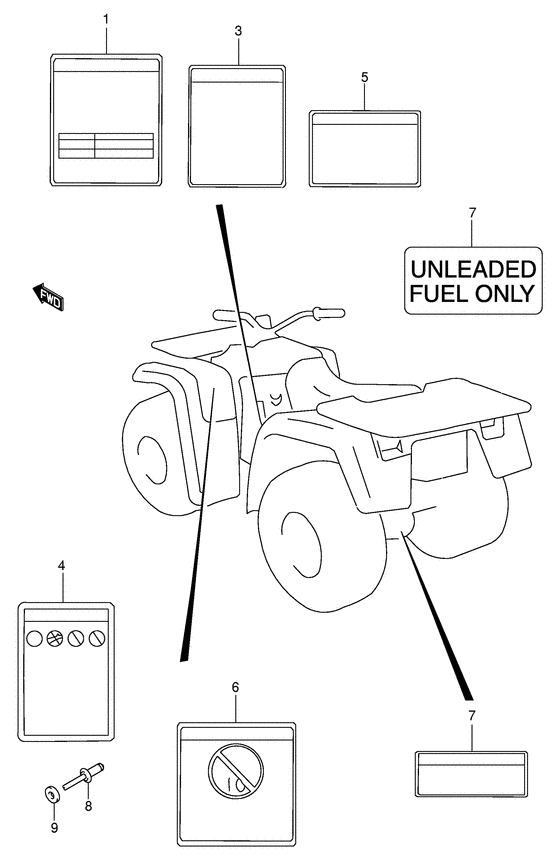

Label Diagram Suzuki LT-A500 QuadMaster
- Model code
- LT-A500F Y
- Engine Capacity
- 493
- Year
- 2000
- Sales region
- USA/Canada (E3/E28)
- Frame
- JSAAM42A*Y2100001~
- Model
- QuadMaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68332-09F40-000 LABEL,TIRE INFORMATIONLabel, tire information |
68332-09F40-000 |
from US $14.35 |
||
|
1
|
1
68332-09F50-000
LABEL,TIRE INFORMATION
Label, tire (french); E28 |
68332-09F50-000 |
— | ||
|
2
|
2
68617-19B20-000
LABEL,WARNING TRAILER TOW
Label, warning trailer; |
68617-19B20-000 |
— | ||
| replacement | |||||
|
2
|
2
68617-19B21-000 Label,warning Trailer TowLabel, warning trailer; |
68617-19B21-000 |
from US $3.90 |
||
|
2
|
2
68617-19B30-000
LABEL,WARNING TRAILER TOW
Label, warning trailer; E28 |
68617-19B30-000 |
— | ||
|
3
|
3
68633-09F00-000
LABEL,GEAR SHIFTING
Label, warning reverse; |
68633-09F00-000 |
— | ||
| replacement | |||||
|
3
|
3
68633-09F01-000 Label,gear ShiftingLabel, warning reverse; |
68633-09F01-000 |
US $13.79 |
||
|
4
|
4
68921-09F00-000 LABEL,GENERAL WARNINGLabel, warning Label, warning; |
68921-09F00-000 |
from US $29.03 |
||
|
4
|
4
68366-20B60-000
LABEL,GENERAL WARNING
Label, warning (french); E28 |
68366-20B60-000 |
— | ||
| replacement | |||||
|
4
|
4
68366-20B61-000 Label,general WarningLabel, warning (french); E28 |
68366-20B61-000 |
from US $14.87 |
||
|
5
|
5
68367-09F00-000 LABEL,NO PASSENGERLabel, warning no passenger; |
68367-09F00-000 |
from US $12.36 |
||
|
6
|
6
68931-09F00-000 LABEL,AGE 16Label, age16; |
68931-09F00-000 |
US $33.05 |
||
|
6
|
6
68633-09F30-000
Label, gear shift
Label, age16 (french); E28 |
68633-09F30-000 |
— | ||
| replacements | |||||
|
6
|
6
68633-09F31-000
LABEL,GEAR SHIFT
Label, age16 (french); E28 |
68633-09F31-000 |
— | ||
|
6
|
6
68633-09F32-000 Label,age 16 & Gear ShiftingLabel, age16 (french); E28 |
68633-09F32-000 |
from US $14.87 |
||
|
7
|
7
68353-26E01-000
Label, manual notice
|
68353-26E01-000 |
— | ||
| replacements | |||||
|
7
|
7
68353-26E02-000
LABEL, OWNERs MANUAL NOTICE
|
68353-26E02-000 |
— | ||
|
7
|
7
68353-26E03-000 Label,manual Notice |
68353-26E03-000 |
from US $3.74 |
||
|
8
|
8
68929-09F00-000 PIVET,WARNING LABEL |
68929-09F00-000 |
from US $1.95 |
||
|
9
|
9
68928-09F00-000 WASHER |
68928-09F00-000 |
from US $1.99 |
||
|
10
|
10
99011-09F60-03A MANUAL,OWNER'S LT-F500FAYModel y |
99011-09F60-03A |
from US $15.46 |
||
|
10
|
10
99011-09F61-03A MANUAL,OWNER'S LT-A500F(1)Model k1 |
99011-09F61-03A |
US $15.46 |
||
|
10
|
10
99011-09F60-28B MANUAL,OWNER'S LT-F500FAYModel k1 e28 |
99011-09F60-28B |
US $15.46 |
||
|
10
|
10
99011-09F61-28B MANUAL,OWNER'S LT-A500F(1)Model k1 e28, drawing not shown |
99011-09F61-28B |
US $15.46 |
||
