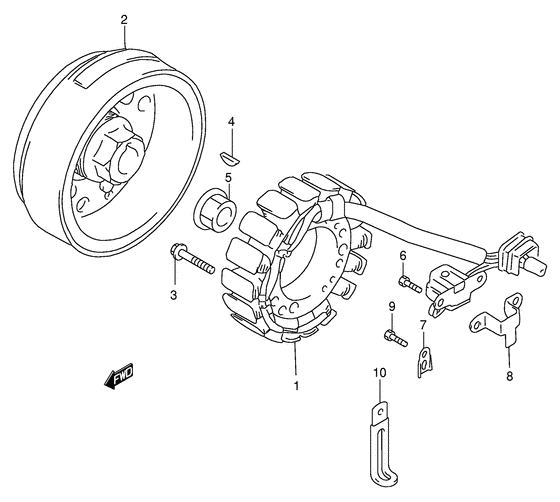

Magneto Diagram Suzuki LT-A500 QuadMaster
- Model code
- LT-A500F Y
- Engine Capacity
- 493
- Year
- 2000
- Sales region
- USA/Canada (E3/E28)
- Frame
- JSAAM42A*Y2100001~
- Model
- QuadMaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-09F01-000
STATOR ASSY
|
32101-09F01-000 |
— | ||
| replacement | |||||
|
1
|
1
32101-09F02-000 Stator Assy |
32101-09F02-000 |
from US $626.56 |
||
|
2
|
2
32102-09F10-000 ROTOR ASSY |
32102-09F10-000 |
from US $619.52 |
||
|
3
|
3
01547-06303-000
Bolt
Bolt, magneto; |
01547-06303-000 |
— | ||
| replacement | |||||
|
3
|
3
01547-0630B-000 BOLTBolt Bolt, magneto; |
01547-0630B-000 |
from US $0.96 |
||
|
4
|
4
08341-31059-000 KEYKey Key, mangeto; |
08341-31059-000 |
from US $1.49 |
||
|
5
|
5
31792-18A00-000 NUT,MAGNETO ROTORNut, magneto; |
31792-18A00-000 |
from US $5.78 |
||
|
6
|
6
09100-05019-000 BOLT(5X10)Bolt, sensor (5x10) Bolt, sensor (5x10); |
09100-05019-000 |
from US $0.91 |
||
|
7
|
7
31497-45000-000 CLAMP,GENERATOR LEAD WIREClamp, magneto no.1 Clamp, magneto no.1; |
31497-45000-000 |
from US $0.92 |
||
|
8
|
8
32371-32E00-000 CLAMP,MAGNETO LEADClamp, magneto no.2 Clamp, magneto no.2; |
32371-32E00-000 |
from US $2.94 |
||
|
9
|
9
09100-05019-000 BOLT(5X10)Bolt, sensor (5x10) Bolt, clamp no.2 (5x10); |
09100-05019-000 |
from US $0.91 |
||
|
10
|
10
09404-06431-000
CLAMP(L:65)
Clamp, magneto no.3 (l:80); |
09404-06431-000 |
— | ||
| replacements | |||||
|
10
|
10
09404-06432-000
CLAMP(L:65)
Clamp, magneto no.3 (l:80); |
09404-06432-000 |
— | ||
|
10
|
10
09404-06039-000 Clamp(L:65)Clamp, magneto no.3 (l:80); |
09404-06039-000 |
from US $1.82 |
||
|
10
|
10
09404-06038-000 Clamp(L:65)Clamp, magneto no.3 (l:80); |
09404-06038-000 |
from US $2.40 |
||
