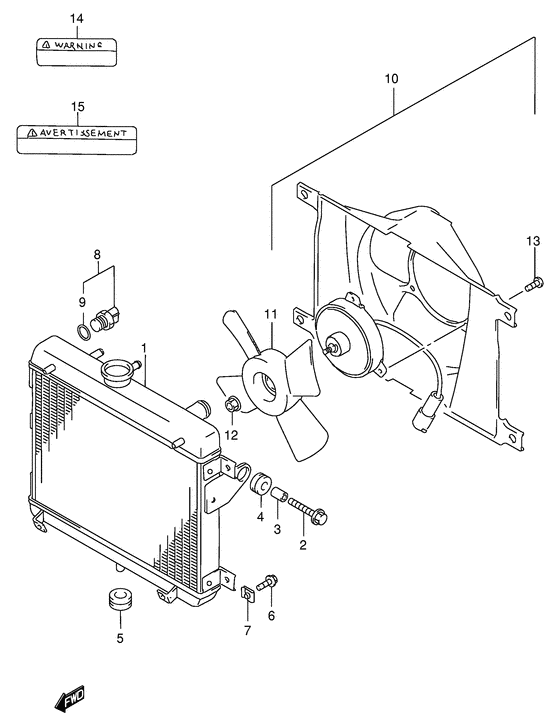

Radiator (Model y) Diagram Suzuki LT-A500 QuadMaster
- Model code
- LT-A500F Y
- Engine Capacity
- 493
- Year
- 2000
- Sales region
- USA/Canada (E3/E28)
- Frame
- JSAAM42A*Y2100001~
- Model
- QuadMaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17710-09F00-000
RADIATOR ASSY,WATER
|
17710-09F00-000 |
— | ||
|
2
|
2
09116-06131-000 BOLT(6X25)Bolt (6x25); |
09116-06131-000 |
from US $0.80 |
||
|
3
|
3
09180-06290-000 SPACER(6.5X10X12)Spacer, 6.5x10x12 |
09180-06290-000 |
from US $1.76 |
||
|
4
|
4
09320-10042-000 CUSHION |
09320-10042-000 |
from US $1.67 |
||
|
5
|
5
09320-12053-000
CUSHION
Cushion, lower; |
09320-12053-000 |
— | ||
| replacement | |||||
|
5
|
5
09320-12092-000 CushionCushion, lower; |
09320-12092-000 |
from US $5.39 |
||
|
6
|
6
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
09148-06015-000 NUT |
09148-06015-000 |
from US $2.03 |
||
|
8
|
8
17680-50F70-000
SWITCH,ENGINE COOLING FAN
|
17680-50F70-000 |
— | ||
| replacement | |||||
|
8
|
8
17680-50F71-000 Switch Comp,eng Clg Fan |
17680-50F71-000 |
from US $34.40 |
||
|
9
|
9
17689-50F00-000 O-RING |
17689-50F00-000 |
from US $1.60 |
||
|
10
|
10
17800-09F00-000
FAN ASSY,RADIATOR
|
17800-09F00-000 |
— | ||
|
11
|
11
17820-09F00-000
FAN,RADIATOR
|
17820-09F00-000 |
— | ||
|
12
|
12
17821-09F00-000
NUT,RADIATOR FAN
|
17821-09F00-000 |
— | ||
|
13
|
13
02112-15123-000
Screw
Screw; |
02112-15123-000 |
— | ||
| replacements | |||||
|
13
|
13
02112-1512A-000 SCREWScrew; |
02112-1512A-000 |
US $9.90 |
||
|
13
|
13
02142-0512A-000 SCREWScrew, lower Screw; |
02142-0512A-000 |
from US $0.80 |
||
|
14
|
14
17991-02F00-000
Label,cooling f
|
17991-02F00-000 |
— | ||
| replacements | |||||
|
14
|
14
17991-02F01-000
LABEL,COOLING FAN
|
17991-02F01-000 |
— | ||
|
14
|
14
17991-02F02-000 Label,cooling Fan |
17991-02F02-000 |
from US $3.39 |
||
|
15
|
15
17991-02F10-000
LABEL,COOLING FAN
E28 |
17991-02F10-000 |
— | ||
