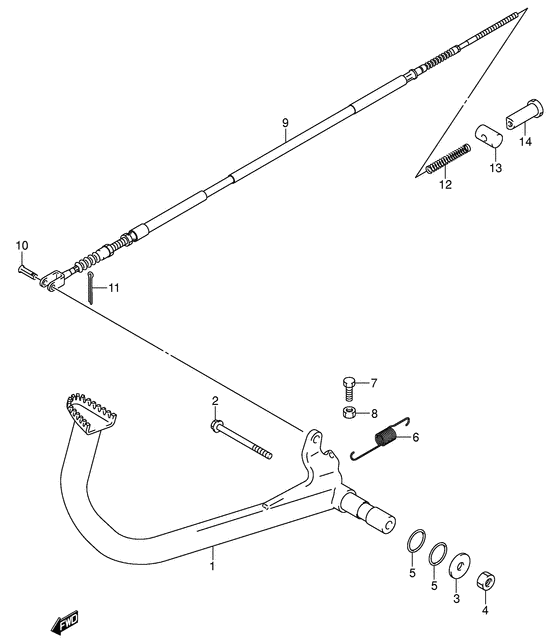

Rear brake Diagram Suzuki LT-A500 QuadMaster
- Model code
- LT-A500F Y
- Engine Capacity
- 493
- Year
- 2000
- Sales region
- USA/Canada (E3/E28)
- Frame
- JSAAM42A*Y2100001~
- Model
- QuadMaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43110-09FA0-000
PEDAL,BRAKE
|
43110-09FA0-000 |
— | ||
|
2
|
2
07120-06753-000
Bolt
|
07120-06753-000 |
— | ||
| replacement | |||||
|
2
|
2
07120-0675B-000 Bolt |
07120-0675B-000 |
from US $5.66 |
||
|
3
|
3
09160-06138-000 WASHER(6.5X22X2.3)Washer (6.5x22x2.3) |
09160-06138-000 |
from US $3.03 |
||
|
4
|
4
08319-21063-000
Nut
|
08319-21063-000 |
— | ||
| replacement | |||||
|
4
|
4
08319-2106B-000 NUT |
08319-2106B-000 |
from US $1.06 |
||
|
5
|
5
09280-14011-000 O RING(D:2.5,ID:13.8)O ring (d:2.5 id:13.8) O ring; |
09280-14011-000 |
from US $2.13 |
||
|
6
|
6
09443-11030-000 SPRING |
09443-11030-000 |
from US $2.74 |
||
|
7
|
7
01500-06203-000
Bolt
|
01500-06203-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
8
|
8
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
8
|
8
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
9
|
9
58510-09F10-000 CABLE,RR BRAKECable assy, rear brake |
58510-09F10-000 |
from US $50.78 |
||
|
10
|
10
09200-05001-000 PIN(L:17.5)Pin, front; |
09200-05001-000 |
from US $1.22 |
||
|
11
|
11
09385-06012-000 CLIPCotter pin; |
09385-06012-000 |
from US $1.22 |
||
|
12
|
12
09440-08040-000
Spring
|
09440-08040-000 |
— | ||
| replacement | |||||
|
12
|
12
09440-08040-XC0 SPRING |
09440-08040-XC0 |
from US $3.83 |
||
|
13
|
13
09209-13006-000 PINPin, adjuster Pin, rear; |
09209-13006-000 |
from US $1.92 |
||
|
14
|
14
09150-06012-000 NUT |
09150-06012-000 |
from US $5.39 |
||
