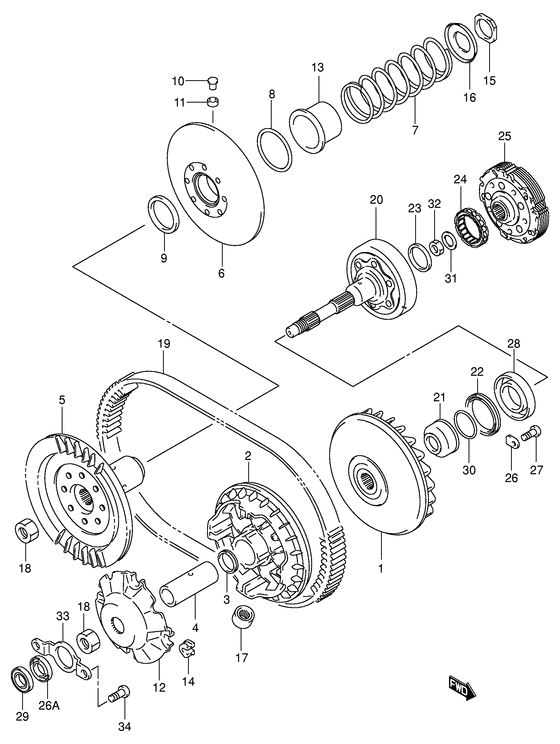

Transmission (1)(model k1) Diagram Suzuki LT-A500 QuadMaster
- Model code
- LT-A500F Y
- Engine Capacity
- 493
- Year
- 2000
- Sales region
- USA/Canada (E3/E28)
- Frame
- JSAAM42A*Y2100001~
- Model
- QuadMaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21110-09F60-000 FACE,FIXED DRIVE |
21110-09F60-000 |
US $213.40 |
||
|
2
|
2
21120-09F60-000 FACE,MOVABLE DRIVE |
21120-09F60-000 |
from US $116.66 |
||
|
3
|
3
21124-09F50-000 SEAL,MOVABLE DRIVE FACE OILSeal, movable drive |
21124-09F50-000 |
from US $6.37 |
||
|
4
|
4
21125-09F50-000 SPACER,MOVABLE DRIVESpacer, movable drive |
21125-09F50-000 |
from US $32.38 |
||
|
5
|
5
21210-09F60-000
FACE,FIXED DRIVEN
|
21210-09F60-000 |
— | ||
|
6
|
6
21240-09F60-000
FACE,MOVABLE DRIVEN
|
21240-09F60-000 |
— | ||
|
7
|
7
21243-09F52-000 SPRING,MOVABLE DRIVENSpring, movable driven |
21243-09F52-000 |
from US $39.20 |
||
|
8
|
8
21245-15F00-000 O RING,MOVABLE DRIVENO ring, movable driven |
21245-15F00-000 |
from US $2.58 |
||
|
9
|
9
21247-15F00-000 SEAL,MOVABLE DRIVEN OIL |
21247-15F00-000 |
from US $15.32 |
||
|
10
|
10
21248-15F01-000 PIN,MOVABLE DRIVEN |
21248-15F01-000 |
from US $2.11 |
||
|
11
|
11
21249-15F00-000 SPACER,MOVABLE DRIVEN PIN |
21249-15F00-000 |
from US $2.46 |
||
|
12
|
12
21431-09F50-000
Plate, movable drive
|
21431-09F50-000 |
— | ||
| replacement | |||||
|
12
|
12
21431-09F60-000 PLATE,MOVABLE DRIVE |
21431-09F60-000 |
from US $35.14 |
||
|
13
|
13
21471-09F52-000
Sheet, movable driven
|
21471-09F52-000 |
— | ||
| replacement | |||||
|
13
|
13
21471-09F60-000 SHEET,MOVABLE DRIVEN |
21471-09F60-000 |
from US $9.38 |
||
|
14
|
14
21481-14F00-000 DAMPER,MOVABLE DRIVE PLATE |
21481-14F00-000 |
from US $3.19 |
||
|
15
|
15
21518-09F50-000 NUT,DRIVEN PULLEY SPRINGNut, driven pully Nut, driven pully; |
21518-09F50-000 |
from US $15.35 |
||
|
16
|
16
21519-09F52-000 HOLDER,MOVABLE DRIVEN SPRINGHolder, movable driven |
21519-09F52-000 |
from US $10.49 |
||
|
17
|
17
21650-09F60-000 ROLLER,MOVABLE DRIVE |
21650-09F60-000 |
from US $13.58 |
||
|
18
|
18
09140-20017-000 NUT |
09140-20017-000 |
from US $9.88 |
||
|
19
|
19
27601-09F60-000 V-BELT,DRIVE |
27601-09F60-000 |
from US $244.77 |
||
|
20
|
20
21100-09F60-000 HOUSING CLUTCH |
21100-09F60-000 |
from US $257.60 |
||
|
21
|
21
21102-09F51-000 SPACER,FIXED DRIVE,L |
21102-09F51-000 |
from US $45.26 |
||
|
22
|
22
21104-09F52-000
Seal, clutch housing
|
21104-09F52-000 |
— | ||
| replacements | |||||
|
22
|
22
21104-09F56-000
SEAL,CLUTCH HOUSING OIL
|
21104-09F56-000 |
— | ||
|
22
|
22
21104-09F60-000 Seal,clutch Housing Spacer Oil |
21104-09F60-000 |
from US $40.55 |
||
|
23
|
23
21105-09F50-000 SEAL,CLUTCH HOUSING OILSeal, clutch housing |
21105-09F50-000 |
from US $17.52 |
||
|
24
|
24
21273-44D00-000 CLUTCH,PRIMARY DRIVE ONE WAYClutch, one way |
21273-44D00-000 |
US $187.26 |
||
|
25
|
25
21500-09F50-000 CLUTCH ASSY,SHOEClutch assy, shoe |
21500-09F50-000 |
from US $268.64 |
||
| replacement | |||||
|
25
|
25
21500-03G00-000 CLUTCH ASSY,SHOE |
21500-03G00-000 |
from US $323.84 |
||
|
26
|
26
24741-21A00-000 RETAINERRetainer, bearing; |
24741-21A00-000 |
from US $1.60 |
||
|
26A
|
26A
24754-09F50-000 SEAL,CLUTCH HOUSING,R |
24754-09F50-000 |
US $16.39 |
||
|
27
|
27
02112-06123-000
Screw, breather cover
Screw, retainer; |
02112-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
02112-0612B-000 SCREWScrew, oil guide plate Screw, retainer; |
02112-0612B-000 |
from US $0.76 |
||
|
27
|
27
02112-0612A-000 SCREWScrew, retainer; |
02112-0612A-000 |
from US $0.76 |
||
|
28
|
28
09262-40009-000 BEARING(40X80X18)Bearing |
09262-40009-000 |
from US $88.32 |
||
|
29
|
29
09262-17048-000 BEARING(17X47X11.5) |
09262-17048-000 |
US $83.22 |
||
|
30
|
30
09280-40010-000
O RING(D:2.4,ID:39.7)
O ring (d:2.4,id:39.7); |
09280-40010-000 |
— | ||
| replacement | |||||
|
30
|
30
09280-40020-000 O-Ring (D:2.4,id:39.7)O ring (d:2.4,id:39.7); |
09280-40020-000 |
from US $4.59 |
||
|
31
|
31
09160-18033-000 WASHER(18X30X2.5)Washer (18x30x2.5) Washer (18x30x2.5); |
09160-18033-000 |
from US $4.76 |
||
|
32
|
32
09140-18004-000 NUT |
09140-18004-000 |
from US $4.80 |
||
|
33
|
33
24751-09F60-000 RETAINER,CLUTCH HOUSING,R |
24751-09F60-000 |
US $9.37 |
||
|
34
|
34
09126-06011-000 SCREW(6X12)Screw, retainer mdl |
09126-06011-000 |
from US $0.76 |
||
