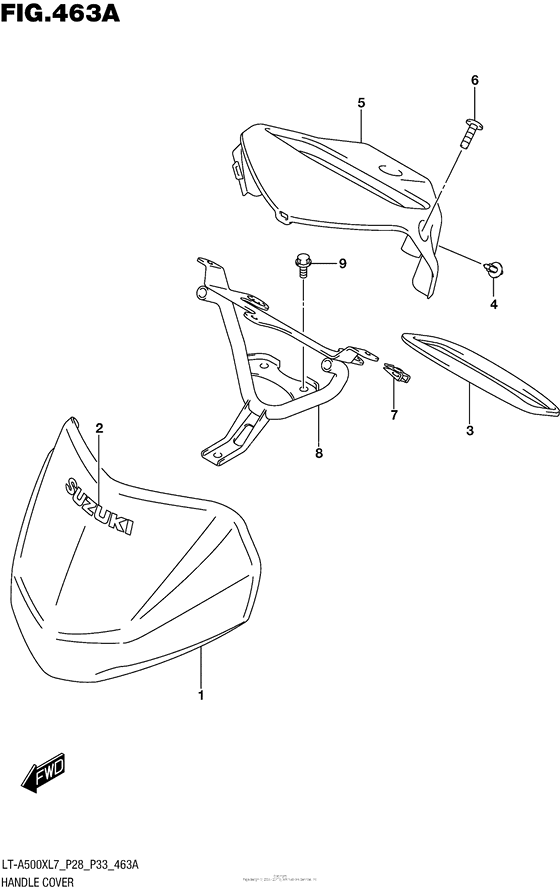

Handle Cover (Lt-A500Xl7 P28) Diagram Suzuki LT-A500 KingQuad 500AXi
- Model code
- LT-A500X L7
- Engine Capacity
- 493
- Year
- 2017
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1-1
|
1-1
56311-31GA0-YLG COVER,HANDLE FR |
56311-31GA0-YLG |
US $27.14 |
||
|
1-2
|
1-2
56311-31GA0-YLZ COVER,HANDLE FR |
56311-31GA0-YLZ |
US $26.99 |
||
|
1-3
|
1-3
56311-31GA0-YT9 COVER,HANDLE FR |
56311-31GA0-YT9 |
US $37.10 |
||
| replacement | |||||
|
1-3
|
1-3
56311-31GA1-YT9 COVER,HANDLE,FR |
56311-31GA1-YT9 |
US $41.12 |
||
|
2
|
2
68171-31GA0-1ZZ
EMBLEM,SUZUKI
|
68171-31GA0-1ZZ |
— | ||
| replacement | |||||
|
2
|
2
68171-31GA1-1ZZ Emblem,"suzuki" |
68171-31GA1-1ZZ |
from US $3.90 |
||
|
3
|
3
56317-31G00-000 MOLDING,HANDLE COVER |
56317-31G00-000 |
from US $8.48 |
||
|
4
|
4
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
5
|
5
56321-11H00-291 COVER,HANDLE RR |
56321-11H00-291 |
US $38.10 |
||
|
6
|
6
03141-0525A-000 SCREW |
03141-0525A-000 |
from US $2.18 |
||
|
7
|
7
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
8
|
8
56160-11H00-000 BRACE,HANDLE COVER |
56160-11H00-000 |
from US $87.58 |
||
|
9
|
9
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
