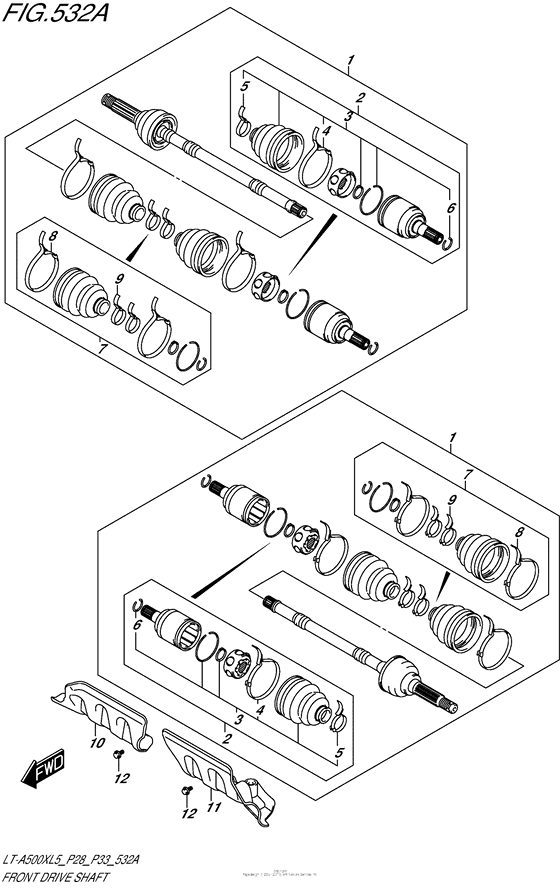

Front Drive Shaft Diagram Suzuki LT-A500 KingQuad 500AXi
- Model code
- LT-A500X L5
- Engine Capacity
- 493
- Year
- 2015
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54901-31G41-000 SHAFT ASSY,FR DRIVE |
54901-31G41-000 |
from US $485.28 |
||
|
2
|
2
54933-31G12-000
Joint set
|
54933-31G12-000 |
— | ||
| replacement | |||||
|
2
|
2
54933-31G13-000 Joint set |
54933-31G13-000 |
from US $314.08 |
||
|
3
|
3
54931-31G13-000 BOOT SET,INNER |
54931-31G13-000 |
US $88.77 |
||
|
4
|
4
44121-31G30-000 BAND,BOOT |
44121-31G30-000 |
US $6.48 |
||
|
5
|
5
44124-31G00-000 BAND,BOOT |
44124-31G00-000 |
US $5.92 |
||
|
6
|
6
54925-19B01-000 CIRCLIP |
54925-19B01-000 |
from US $3.97 |
||
|
7
|
7
54930-31G14-000 BOOT SET,OUTER |
54930-31G14-000 |
from US $111.10 |
||
|
8
|
8
44121-31G00-000
BAND,BOOT
|
44121-31G00-000 |
— | ||
|
9
|
9
44124-31G00-000 BAND,BOOT |
44124-31G00-000 |
US $5.92 |
||
|
10
|
10
54903-31G00-000 PROTECTOR,FR DRIVE SHAFT,R |
54903-31G00-000 |
from US $21.95 |
||
|
11
|
11
54904-31G00-000 PROTECTOR,FR DRIVE SHAFT,L |
54904-31G00-000 |
from US $21.95 |
||
|
12
|
12
09111-06085-000 BOLT(6X12) |
09111-06085-000 |
from US $2.40 |
||
