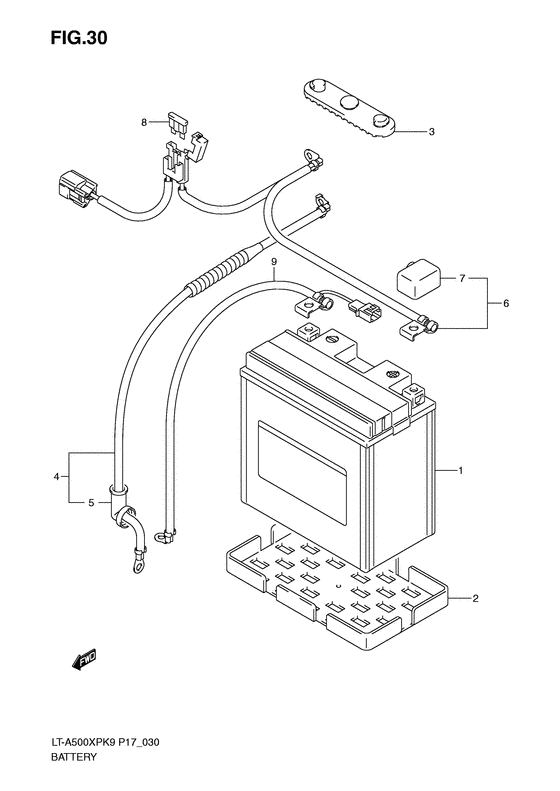

Battery Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L0
- Engine Capacity
- 493
- Year
- 2010
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*A710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-31G00-000
Battery assy
Ftz16-bs,12v18ah |
33610-31G00-000 |
— | ||
| replacements | |||||
|
1
|
1
33610-03G10-000
Battery assy
Ftz16-bs,12v18ah |
33610-03G10-000 |
— | ||
|
1
|
1
33610-31G02-000 Battery Ftz16-Bs,12V18.9Ah)Ftz16-bs,12v18ah |
33610-31G02-000 |
US $195.04 |
||
|
2
|
2
33652-16G00-000 PROTECTOR,BATTERYProtector, battery; |
33652-16G00-000 |
from US $4.26 |
||
|
3
|
3
33652-07G00-000 PROTECTOR,BATTERYProtector, battery; |
33652-07G00-000 |
from US $2.69 |
||
|
4
|
4
33810-11H00-000
WIRE,STARTER MOTOR
|
33810-11H00-000 |
— | ||
|
5
|
5
31861-48B10-000 CAP,STARTER MOTOR LEADCap, starter motor Cap, starter motor lead; |
31861-48B10-000 |
from US $3.50 |
||
|
6
|
6
33820-31G10-000
WIRE,BATTERY PLUS
|
33820-31G10-000 |
— | ||
|
7
|
7
33624-10D00-000 CAP,BATTERY PLUSCap, battery plus term Cap, battery plus term; |
33624-10D00-000 |
from US $2.40 |
||
|
8
|
8
09481-40101-000 FUSE(40A)Fuse (40a); |
09481-40101-000 |
from US $5.58 |
||
|
9
|
9
33860-31G10-000 WIRE,BATTERY MINUS |
33860-31G10-000 |
from US $48.25 |
||
