Cooling duct Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L0
- Engine Capacity
- 493
- Year
- 2010
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*A710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?

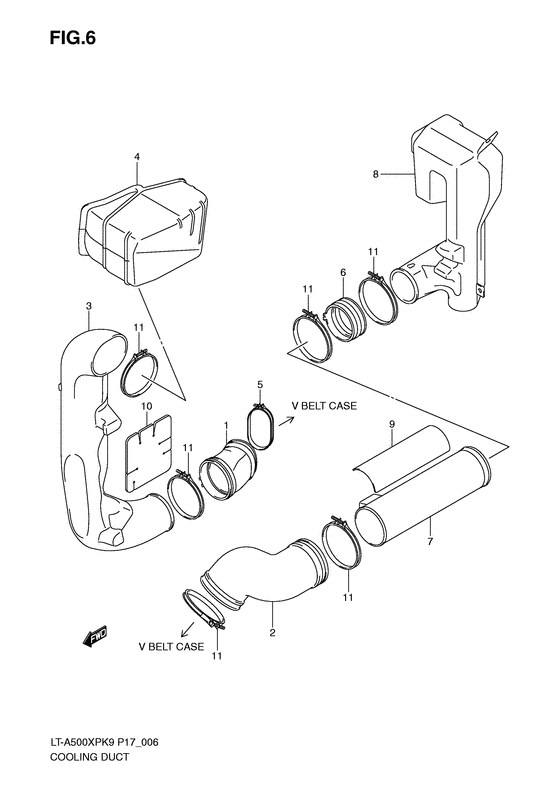

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11385-11H00-000
CONNECTOR,CLG DUCT FR
|
11385-11H00-000 |
— | ||
| replacement | |||||
|
1
|
1
11385-11H01-000 Connector,clg Duct Fr |
11385-11H01-000 |
from US $10.56 |
||
|
2
|
2
11386-31G00-000
CONNECTOR,CLG DUCT RR
|
11386-31G00-000 |
— | ||
| replacement | |||||
|
2
|
2
11386-31G01-000 Connector,clg Duct Rr |
11386-31G01-000 |
US $23.85 |
||
|
3
|
3
11387-31G00-000 DUCT,BELT COOLING FR NO.1 |
11387-31G00-000 |
US $55.96 |
||
|
4
|
4
11388-31G10-000
DUCT,BELT COOLING FR NO.2
|
11388-31G10-000 |
— | ||
| replacement | |||||
|
4
|
4
11388-31G11-000 Duct,belt Cooling Fr No.2 |
11388-31G11-000 |
US $36.72 |
||
|
5
|
5
11389-09F50-000 CLAMP,BELT COOLING DUCT FRClamp, belt clg duct fr; |
11389-09F50-000 |
from US $4.75 |
||
|
6
|
6
11397-31G00-000
CONNECTOR,CLG DUCT RR NO.2
|
11397-31G00-000 |
— | ||
| replacement | |||||
|
6
|
6
11397-31G01-000 Connector,clg Duct Rr No.2 |
11397-31G01-000 |
from US $5.34 |
||
|
7
|
7
11398-31G00-000 DUCT,BELT COOLING RR NO.1 |
11398-31G00-000 |
from US $31.65 |
||
|
8
|
8
11399-31G00-000 DUCT,BELT COOLING RR NO.2 |
11399-31G00-000 |
from US $39.74 |
||
|
9
|
9
11487-31G00-000
Shield, belt clg duct rr
Shield, belt clg duct rr; |
11487-31G00-000 |
— | ||
| replacement | |||||
|
9
|
9
11487-31G10-000
SHIELD,BELT COOLING DUCT RR
Shield, belt clg duct rr; |
11487-31G10-000 |
— | ||
|
10
|
10
11488-31G00-000
Shield, belt clg duct fr
|
11488-31G00-000 |
— | ||
| replacement | |||||
|
10
|
10
11488-31G30-000
SHIELD,BELT CLG DUCT FR
|
11488-31G30-000 |
— | ||
|
11
|
11
09402-82208-000 CLAMP |
09402-82208-000 |
from US $9.62 |
||
