Footrest Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L0
- Engine Capacity
- 493
- Year
- 2010
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*A710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Parts list
Difficulties in parts search?

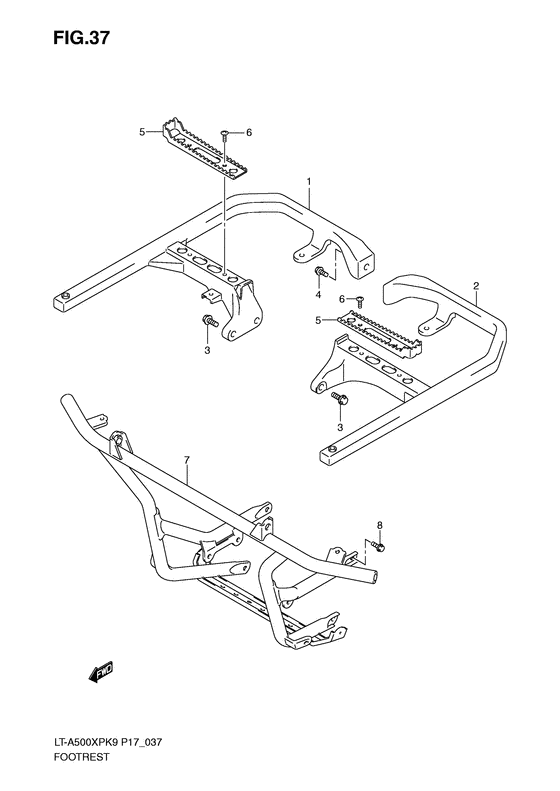

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43511-31G20-000
FOOTREST,R
|
43511-31G20-000 |
— | ||
| replacements | |||||
|
1
|
1
43510-11HA0-000 FOOTREST,R |
43510-11HA0-000 |
US $316.48 |
||
|
1
|
1
43510-11HB0-000 FOOTREST, R |
43510-11HB0-000 |
US $146.97 |
||
|
2
|
2
43521-31G20-000
Footrest,l
|
43521-31G20-000 |
— | ||
| replacement | |||||
|
2
|
2
43520-11HA0-000 FOOTREST,L |
43520-11HA0-000 |
US $145.74 |
||
|
3
|
3
09103-10378-000 BOLT(10X25)Bolt, front Bolt, front; |
09103-10378-000 |
from US $1.67 |
||
|
4
|
4
09103-08286-000 BOLT(8X20)Bolt, rear Bolt, rear; |
09103-08286-000 |
from US $0.96 |
||
|
5
|
5
43511-31G01-000
Plate,footrest
|
43511-31G01-000 |
— | ||
|
6
|
6
02142-0612B-000 SCREWScrew; |
02142-0612B-000 |
from US $0.76 |
||
|
7
|
7
43990-31GB0-000 GRIP,FR |
43990-31GB0-000 |
US $295.44 |
||
|
8
|
8
09103-08283-000
BOLT(8X16)
|
09103-08283-000 |
— | ||
| replacements | |||||
|
8
|
8
09103-08283-A05
BOLT(8X16)
|
09103-08283-A05 |
— | ||
|
8
|
8
09103-08570-000 Bolt,front Grip |
09103-08570-000 |
from US $3.69 |
||
