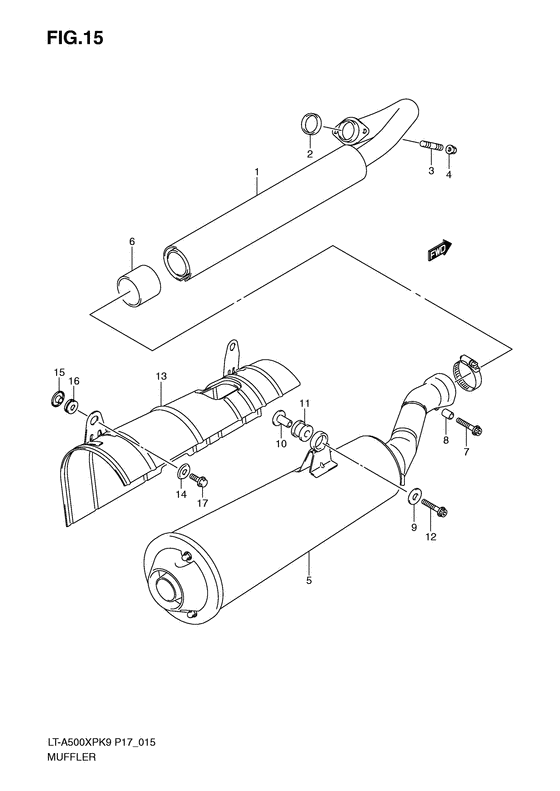

Muffler Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L0
- Engine Capacity
- 493
- Year
- 2010
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*A710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14100-11H00-000
PIPE ASSY,EXHAUST
|
14100-11H00-000 |
— | ||
| replacement | |||||
|
1
|
1
14100-11H30-000 Pipe Assy,exhaust |
14100-11H30-000 |
US $206.24 |
||
|
2
|
2
14181-18C00-000 GASKET,EXHAUSTGasket, exhaust pipe Gasket, exh pipe; |
14181-18C00-000 |
from US $3.92 |
||
|
3
|
3
01421-0820A-000 BOLT,STUDBolt, stud; |
01421-0820A-000 |
from US $3.03 |
||
|
4
|
4
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
5
|
5
14310-11H00-000
BODY,MUFFLER
|
14310-11H00-000 |
— | ||
|
6
|
6
14771-13E00-000
CONNECTOR,MUFFLER
Connector, muf jt; |
14771-13E00-000 |
— | ||
| replacement | |||||
|
6
|
6
14771-13E10-000 Connector,mufConnector, muf jt; |
14771-13E10-000 |
from US $14.43 |
||
|
7
|
7
07120-0835B-000 Bolt |
07120-0835B-000 |
from US $1.37 |
||
|
8
|
8
14424-07G01-000 SPACER |
14424-07G01-000 |
from US $1.91 |
||
|
9
|
9
09160-08503-000 WASHER(8.5X30X2.3)Washer, muffler support Washer, 8.5x30x2.3; |
09160-08503-000 |
from US $1.60 |
||
|
10
|
10
09180-08152-000 SPACER(8.6X12X24.2)Spacer, muffler support Spacer, 8.6x12x24.2; |
09180-08152-000 |
from US $2.74 |
||
|
11
|
11
09320-12071-000 CUSHIONCushion, muffler support Cushion, muf sprt; |
09320-12071-000 |
from US $12.34 |
||
|
12
|
12
07120-0840B-000 BOLT |
07120-0840B-000 |
from US $2.17 |
||
|
13
|
13
14880-31G00-000 COVER,MUFFLER |
14880-31G00-000 |
from US $103.78 |
||
|
14
|
14
14184-07G00-000 WASHER,EXHAUST PIPE COVERWasher, muf cover Washer, muf cover; |
14184-07G00-000 |
from US $0.99 |
||
|
15
|
15
14185-07G00-000 SPACER,EXHAUST PIPE COVERSpacer, muf cover Spacer, muf cover; |
14185-07G00-000 |
from US $2.17 |
||
|
16
|
16
09320-08069-000 CUSHION |
09320-08069-000 |
from US $11.29 |
||
|
17
|
17
01550-0616A-000 BOLT |
01550-0616A-000 |
