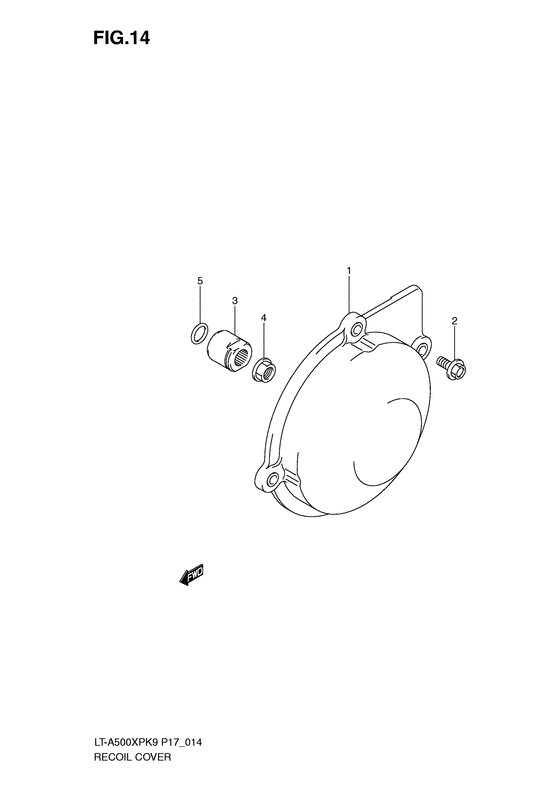

Recoil cover Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L0
- Engine Capacity
- 493
- Year
- 2010
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*A710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18110-31G00-000 COVER,RECOIL |
18110-31G00-000 |
from US $18.77 |
||
|
2
|
2
09103-06302-000 BOLT(6X14) |
09103-06302-000 |
from US $1.12 |
||
|
3
|
3
12359-31G00-000 SPACER,CRANKSHAFT,L |
12359-31G00-000 |
US $69.25 |
||
|
4
|
4
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
5
|
5
09280-12009-000 O RING(D:1.9,ID:12.6)O ring (d:1.9,id:12.6); |
09280-12009-000 |
from US $1.76 |
