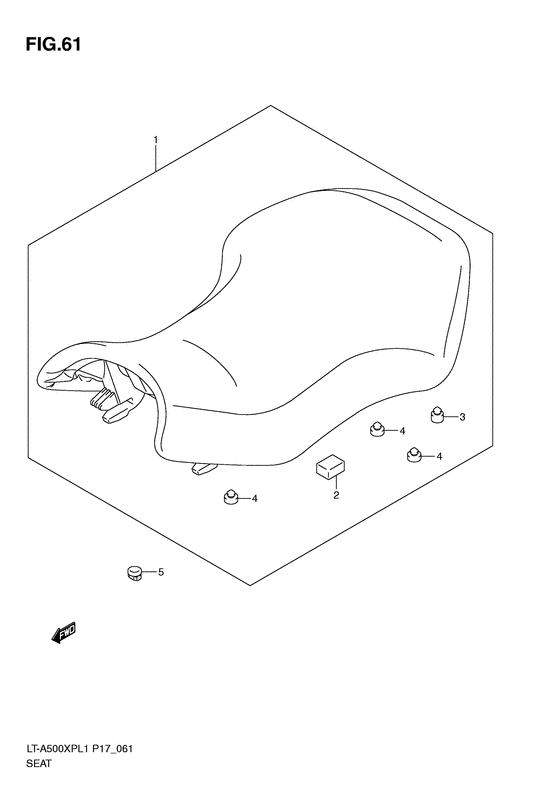

Seat (Lt-a500xpl1 p24) Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L1
- Engine Capacity
- 493
- Year
- 2011
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*B710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-31G21-R1Z SEAT ASSYSeat set; |
45100-31G21-R1Z |
from US $391.73 |
||
|
2
|
2
45146-31G10-000 CUSHION |
45146-31G10-000 |
from US $4.27 |
||
|
3
|
3
45149-31G00-000
CUSHION
|
45149-31G00-000 |
— | ||
|
4
|
4
45149-31G10-000 CUSHION |
45149-31G10-000 |
from US $9.13 |
||
|
5
|
5
45141-21G00-000 CUSHION,SEAT MOUNT FRCushion, seat mount front; |
45141-21G00-000 |
from US $2.72 |
