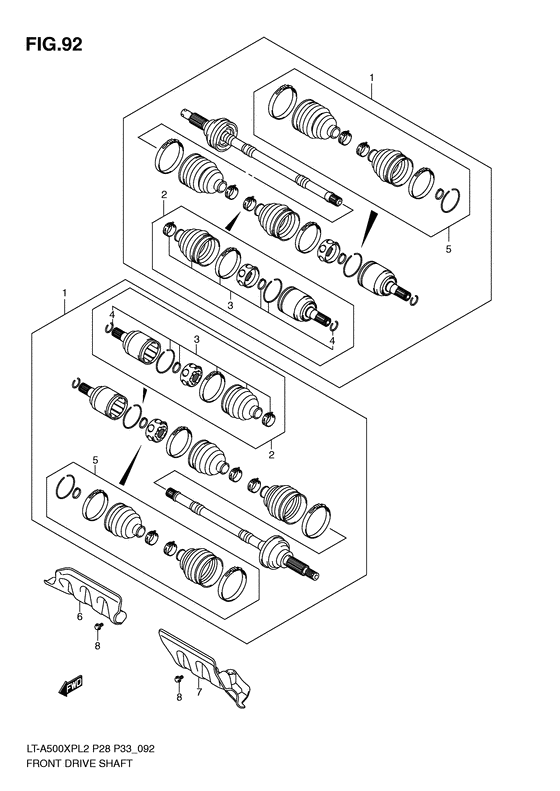

Front drive shaft Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54901-31G30-000
SHAFT ASSY,FR DRIVE
|
54901-31G30-000 |
— | ||
| replacement | |||||
|
1
|
1
54901-31G31-000 SHAFT ASSY,FR DRIVE |
54901-31G31-000 |
from US $387.58 |
||
|
2
|
2
54933-31G20-000
Joint set
|
54933-31G20-000 |
— | ||
| replacement | |||||
|
2
|
2
54933-31G21-000 Joint set |
54933-31G21-000 |
US $310.27 |
||
|
3
|
3
54931-31G12-000
Boot set, inner
|
54931-31G12-000 |
— | ||
| replacement | |||||
|
3
|
3
54931-31G13-000 BOOT SET,INNER |
54931-31G13-000 |
US $88.77 |
||
|
4
|
4
54925-19B01-000 CIRCLIP |
54925-19B01-000 |
from US $3.97 |
||
|
5
|
5
54930-31G20-000
Boot set
Boot set, outer; |
54930-31G20-000 |
— | ||
| replacement | |||||
|
5
|
5
54930-31G21-000 Boot set, outerBoot set, outer; |
54930-31G21-000 |
US $157.71 |
||
|
6
|
6
54903-31G00-000 PROTECTOR,FR DRIVE SHAFT,R |
54903-31G00-000 |
from US $21.95 |
||
|
7
|
7
54904-31G00-000 PROTECTOR,FR DRIVE SHAFT,L |
54904-31G00-000 |
from US $21.95 |
||
|
8
|
8
09111-06085-000 BOLT(6X12)Bolt (6x12); |
09111-06085-000 |
from US $2.40 |
||
