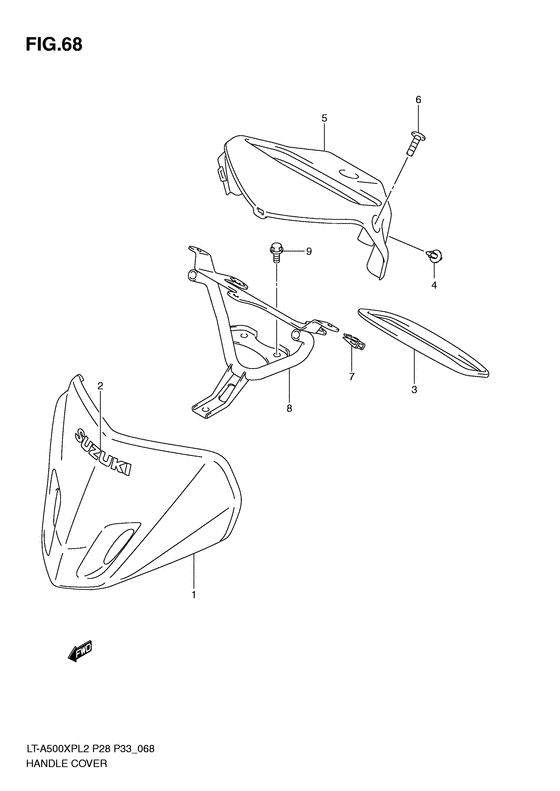

Handle cover (Lt-a500xpl2 p33) Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56311-11H01-YT9 COVER,HANDLE FRCover, front (red); |
56311-11H01-YT9 |
from US $46.37 |
||
|
1
|
1
56311-11H01-YLG COVER,HANDLE FRCover, front (green); |
56311-11H01-YLG |
from US $38.59 |
||
|
1
|
1
56311-11H01-YLZ
COVER,HANDLE FR
Cover, front (black); |
56311-11H01-YLZ |
— | ||
|
2
|
2
68171-31GA0-1ZZ
EMBLEM,SUZUKI
Emblem, suzuki (gray); |
68171-31GA0-1ZZ |
— | ||
| replacement | |||||
|
2
|
2
68171-31GA1-1ZZ Emblem,"suzuki"Emblem, suzuki (gray); |
68171-31GA1-1ZZ |
from US $3.90 |
||
|
3
|
3
56317-31G00-000 MOLDING,HANDLE COVERMolding, handle cover; |
56317-31G00-000 |
from US $8.48 |
||
|
4
|
4
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
5
|
5
56321-11H00-291 COVER,HANDLE RRCover, handle rear (black); |
56321-11H00-291 |
US $38.10 |
||
|
6
|
6
03141-0525A-000 SCREW |
03141-0525A-000 |
from US $2.18 |
||
|
7
|
7
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
8
|
8
56160-11H00-000 BRACE,HANDLE COVER |
56160-11H00-000 |
from US $87.58 |
||
|
9
|
9
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
