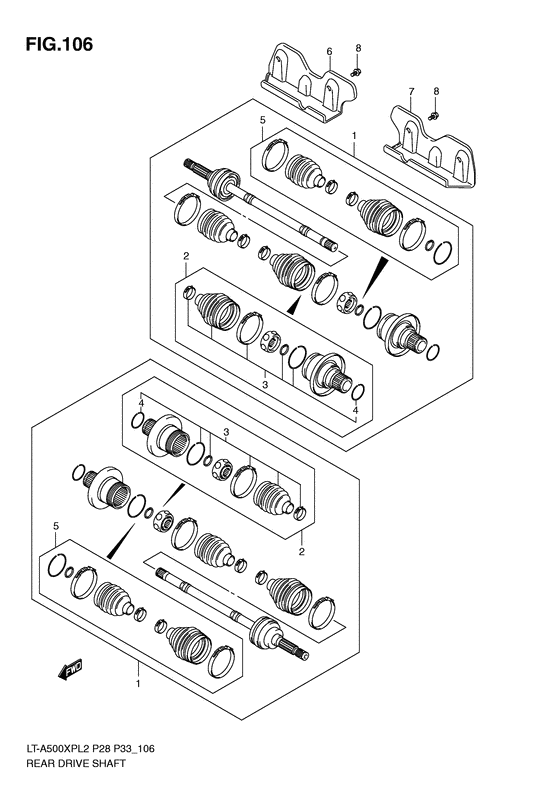

Rear drive shaft Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64901-31G30-000
Shaft assy,rear drive
|
64901-31G30-000 |
— | ||
| replacement | |||||
|
1
|
1
64901-31G31-000 SHAFT ASSY,RR DRIVE |
64901-31G31-000 |
US $433.87 |
||
|
2
|
2
64933-31G20-000
Joint set
|
64933-31G20-000 |
— | ||
| replacement | |||||
|
2
|
2
64933-31G21-000 Joint set |
64933-31G21-000 |
from US $315.38 |
||
|
3
|
3
64931-31G20-000
Boot set, inner
|
64931-31G20-000 |
— | ||
| replacement | |||||
|
3
|
3
64931-31G21-000 Boot set, inner |
64931-31G21-000 |
from US $122.74 |
||
|
4
|
4
54925-31G01-000 CIRCLIP |
54925-31G01-000 |
from US $3.97 |
||
|
5
|
5
64930-31G20-000 Boot set, outer |
64930-31G20-000 |
US $36.04 |
||
| replacement | |||||
|
5
|
5
64930-31G21-000 Boot set, outer |
64930-31G21-000 |
from US $157.71 |
||
|
6
|
6
64903-31G10-000 PROTECTOR,RR DRIVE SHAFT,R |
64903-31G10-000 |
from US $26.64 |
||
|
7
|
7
64904-31G10-000 PROTECTOR,RR DRIVE SHAFT,L |
64904-31G10-000 |
from US $26.64 |
||
|
8
|
8
09111-06085-000 BOLT(6X12)Bolt (6x12); |
09111-06085-000 |
from US $2.40 |
||
