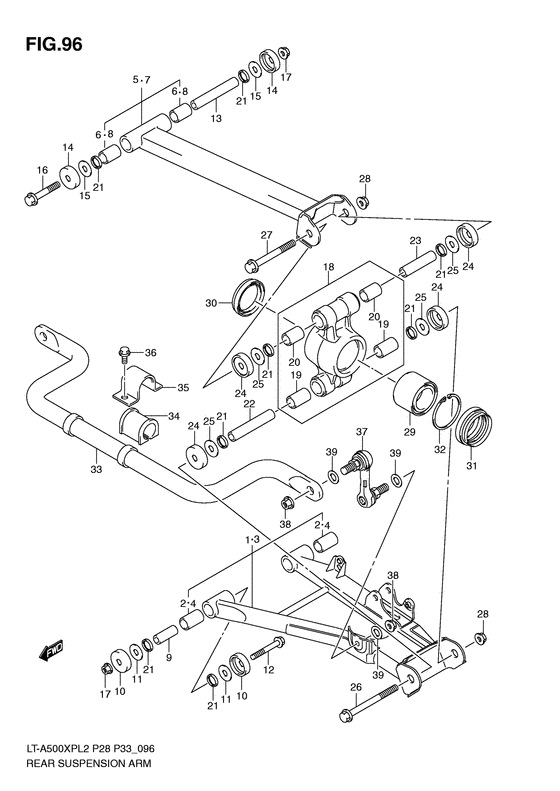

Rear suspension arm Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61510-31830-000 ARM SET,RR SUSPENSION LWR,RArm set, rr suspension lower, rh; |
61510-31830-000 |
US $367.37 |
||
|
2
|
2
51236-31G00-000 BUSH,SUSPENSION ARM PIVOTBush, rr spnsn arm lower; |
51236-31G00-000 |
US $22.73 |
||
|
3
|
3
61520-31830-000 ARM SET,RR SUSPENSION LWR,LArm set, rr suspension lower, lh; |
61520-31830-000 |
US $353.87 |
||
|
4
|
4
51236-31G00-000 BUSH,SUSPENSION ARM PIVOTBush, rr spnsn arm lower; |
51236-31G00-000 |
US $22.73 |
||
|
5
|
5
61530-31830-000 ARM SET,RR SUSPENSION UPR,RArm set, rr suspension upper, r Arm set, rr suspension upper, rh; |
61530-31830-000 |
from US $131.38 |
||
|
6
|
6
51236-31G00-000 BUSH,SUSPENSION ARM PIVOTBush, rr spnsn arm upper; |
51236-31G00-000 |
US $22.73 |
||
|
7
|
7
61540-31830-000 ARM SET,RR SUSPENSION UPR,LArm set, rr suspension upper, lh; |
61540-31830-000 |
from US $131.38 |
||
|
8
|
8
51236-31G00-000 BUSH,SUSPENSION ARM PIVOTBush, rr spnsn arm upper; |
51236-31G00-000 |
US $22.73 |
||
|
9
|
9
61552-31G10-000 SPACER,RR SPNSN ARM LWR |
61552-31G10-000 |
from US $8.98 |
||
|
10
|
10
51255-31G10-000 SEAL,FR SUSPENSION ARM PIVOTSeal, rr spnsn arm lower; |
51255-31G10-000 |
from US $9.68 |
||
|
11
|
11
08211-10281-000 WASHERLower |
08211-10281-000 |
from US $3.21 |
||
|
12
|
12
09103-10392-000 BOLT(10X70)Bolt, rr spnsn arm lower Bolt (10x70); Lower |
09103-10392-000 |
from US $2.89 |
||
|
13
|
13
61554-31G10-000 SPACER,RR SPNSN ARM UPRSpacer, rr spnsn arm upper; |
61554-31G10-000 |
from US $26.31 |
||
|
14
|
14
51255-31G00-000 SEAL,RR SPNSN ARM UPR DUST |
51255-31G00-000 |
US $22.70 |
||
|
15
|
15
08211-10281-000 WASHERUpper |
08211-10281-000 |
from US $3.21 |
||
|
16
|
16
09103-10388-000 BOLT(10X120)Bolt, rr spnsn arm upper Bolt (10x120); Upper |
09103-10388-000 |
from US $9.01 |
||
|
17
|
17
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
18
|
18
61600-31830-000 KNUCKLE SET,RR SUSPENSION |
61600-31830-000 |
from US $235.52 |
||
|
19
|
19
51236-31G00-000 BUSH,SUSPENSION ARM PIVOTBush, rr knuckle; |
51236-31G00-000 |
US $22.73 |
||
|
20
|
20
61551-31G10-000 BUSH,RR KNUCKLE UPR |
61551-31G10-000 |
from US $7.29 |
||
|
21
|
21
52454-45G00-000 SEAL,SPNSN ARM PVT INNER DUSTSeal, rr knuckle inner; |
52454-45G00-000 |
US $10.03 |
||
|
22
|
22
61554-31G10-000 SPACER,RR SPNSN ARM UPR |
61554-31G10-000 |
from US $26.31 |
||
|
23
|
23
61553-31G20-000 SPACER,RR KNUCKLE UPR |
61553-31G20-000 |
from US $19.14 |
||
|
24
|
24
51255-18900-000 DUST SEAL,KNUCKLE ARMSeal, fr suspension arm pivot Seal, rr knuckle dust; |
51255-18900-000 |
from US $4.80 |
||
|
25
|
25
08211-10281-000 WASHER |
08211-10281-000 |
from US $3.21 |
||
|
26
|
26
09103-10388-000 BOLT(10X120)Bolt, rr spnsn arm upper Bolt (10x120); Lower |
09103-10388-000 |
from US $9.01 |
||
|
27
|
27
09103-10387-000 BOLT(10X96)Bolt, rr knuckle upper Bolt (10x96); Upper |
09103-10387-000 |
from US $9.67 |
||
|
28
|
28
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
29
|
29
43440-58J00-000
BEARING,FR WHEEL
|
43440-58J00-000 |
— | ||
| replacement | |||||
|
29
|
29
43440-58J01-000 BEARING,FR WHEEL |
43440-58J01-000 |
from US $53.57 |
||
|
30
|
30
61615-31G00-000 SEAL,RR HUB INNER DUST |
61615-31G00-000 |
US $28.29 |
||
|
31
|
31
61616-31G00-000 SEAL,RR HUB OUTER DUST |
61616-31G00-000 |
US $25.09 |
||
|
32
|
32
08331-4162A-000 CIRCLIPClip; |
08331-4162A-000 |
from US $1.96 |
||
|
33
|
33
61651-31G20-000 BAR,RR STABILIZER |
61651-31G20-000 |
from US $145.73 |
||
|
34
|
34
61652-31G20-000
BUSH,RR STABILIZER
|
61652-31G20-000 |
— | ||
| replacement | |||||
|
34
|
34
61652-34K00-000 Bush,rr Stabilizer |
61652-34K00-000 |
US $9.74 |
||
|
35
|
35
61650-31G00-000 PLATE,RR STABILIZER |
61650-31G00-000 |
from US $41.58 |
||
|
36
|
36
09103-08283-000
BOLT(8X16)
Bolt (8x16); |
09103-08283-000 |
— | ||
| replacements | |||||
|
36
|
36
09103-08283-A05
BOLT(8X16)
Bolt (8x16); |
09103-08283-A05 |
— | ||
|
36
|
36
09103-08570-000 Bolt,front GripBolt (8x16); |
09103-08570-000 |
from US $3.69 |
||
|
37
|
37
61660-31G20-000 JOINT,RR STABILIZER |
61660-31G20-000 |
US $106.37 |
||
|
38
|
38
09159-10223-000
NUT
|
09159-10223-000 |
— | ||
|
39
|
39
09160-10039-000 WASHER(10.5X22X2.3)Washer (10.5x22x2.3); |
09160-10039-000 |
from US $1.06 |
||
