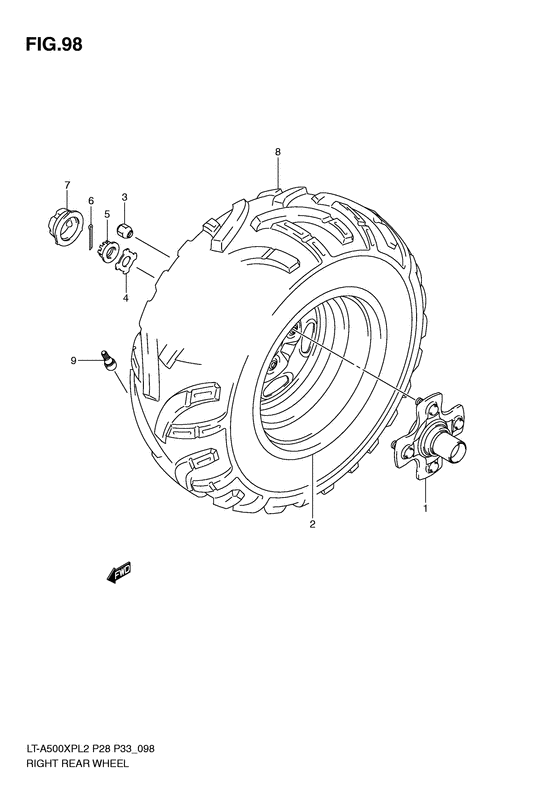

Right rear wheel (Lt-a500xpl2 p28) Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-31G01-000 Hub, rear wheel lhHub, rear wheel rh; |
64110-31G01-000 |
US $193.50 |
||
| replacement | |||||
|
1
|
1
64110-31G10-000 HUB,RR WHEELHub, rear wheel rh; |
64110-31G10-000 |
US $255.22 |
||
|
2
|
2
65310-31G20-YSR
RIM,RR WHEEL(12X7.5AT)
Rim, rear wheel (12x7.5at) (black); For yt9,ylg |
65310-31G20-YSR |
— | ||
| replacement | |||||
|
2
|
2
65310-31G60-291 RIM,RR WHEEL(12X7.5AT)Rim, rear wheel (12x7.5at) (black); For yt9,ylg |
65310-31G60-291 |
from US $332.37 |
||
|
2
|
2
65310-31G60-291 RIM,RR WHEEL(12X7.5AT)Rim, rear wheel (12x7.5at) (black); For yt9,ylg,yu1 |
65310-31G60-291 |
from US $332.37 |
||
|
3
|
3
09159-10114-000 NUT |
09159-10114-000 |
from US $4.48 |
||
|
4
|
4
64723-03G00-000 WASHER,HUBWasher, hub; |
64723-03G00-000 |
from US $10.19 |
||
|
5
|
5
09141-20008-000 NUT |
09141-20008-000 |
from US $24.36 |
||
|
6
|
6
04111-4035A-000 PINPin, cotter |
04111-4035A-000 |
from US $2.18 |
||
|
7
|
7
54725-09F01-000 CAP,WHEEL CTR |
54725-09F01-000 |
US $13.43 |
||
|
8
|
8
65110-31G20-000 TIRE,RRTire, rear (at25x10-12); |
65110-31G20-000 |
from US $275.29 |
||
|
9
|
9
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) Valve assy, wheel rim (tr412); |
43130-24A00-000 |
from US $4.41 |
||
