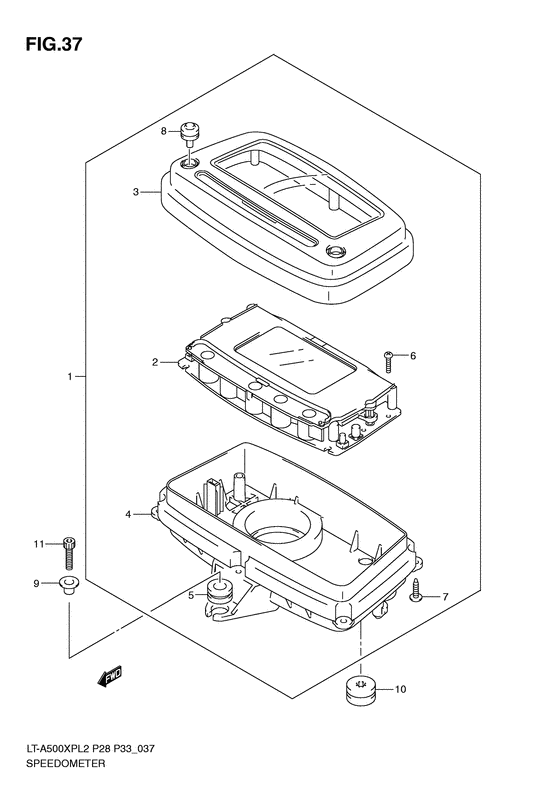

Speedometer (Lt-a500xpzl2 p33) Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-11H60-000 Speedometer ass |
34100-11H60-000 |
from US $301.55 |
||
|
2
|
2
34120-11H50-000
Speedometer
|
34120-11H50-000 |
— | ||
|
3
|
3
34150-31G30-000 CASE,UPR |
34150-31G30-000 |
US $74.07 |
||
|
4
|
4
34111-31G30-000
CASE,LWR
|
34111-31G30-000 |
— | ||
|
5
|
5
34995-31G30-000
CUSHION,RUBBER
|
34995-31G30-000 |
— | ||
|
6
|
6
34147-31G30-000 SCREW(3X10)Screw (3x10); |
34147-31G30-000 |
from US $2.79 |
||
|
7
|
7
34149-31G30-000
SCREW(3X12)
Screw (3x12); |
34149-31G30-000 |
— | ||
|
8
|
8
34124-31G30-000 SWITCH RUBBER |
34124-31G30-000 |
from US $10.52 |
||
| replacement | |||||
|
8
|
8
34124-03GE0-000 SWITCH,RUBBERSwitch rubber |
34124-03GE0-000 |
US $69.92 |
||
|
9
|
9
34187-47F00-000 SPACER,SPEEDOMETERSpacer, speedometer Spacer, speedometer; |
34187-47F00-000 |
from US $4.32 |
||
|
10
|
10
34955-13E00-000
CUSHION
Cushion, meter no.1; |
34955-13E00-000 |
— | ||
| replacement | |||||
|
10
|
10
34955-13E01-000 Cushion,speedometerCushion, meter no.1; |
34955-13E01-000 |
from US $2.82 |
||
|
11
|
11
07130-0520B-000 BoltBolt, speedometer |
07130-0520B-000 |
from US $4 |
||
