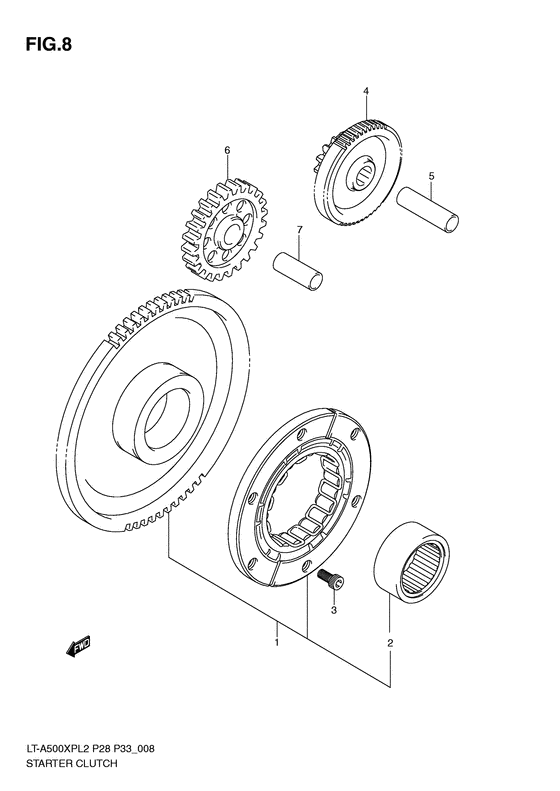

Starter clutch Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12600-11810-000 Clutch Set, Starter |
12600-11810-000 |
from US $207.92 |
||
|
2
|
2
09263-31009-000 BEARING(31X39X17.8)Bearing (31x39x17.8); |
09263-31009-000 |
from US $16.10 |
||
|
3
|
3
09106-08190-000 BOLT(8X16)Bolt (8x16); |
09106-08190-000 |
from US $3.62 |
||
|
4
|
4
12611-11H00-000 GEAR,STARTER IDLE NO.1 |
12611-11H00-000 |
US $104.55 |
||
|
5
|
5
09206-12006-000 PIN(8X12X45.5)Pin, starter idle gear no.2 Pin (8x12x45.5); |
09206-12006-000 |
from US $5.02 |
||
|
6
|
6
12612-31G00-000 GEAR,STARTER IDLE NO.2 |
12612-31G00-000 |
from US $41.58 |
||
|
7
|
7
09206-12007-000 PIN(8X12X33)Pin (8x12x33); |
09206-12007-000 |
from US $10.22 |
