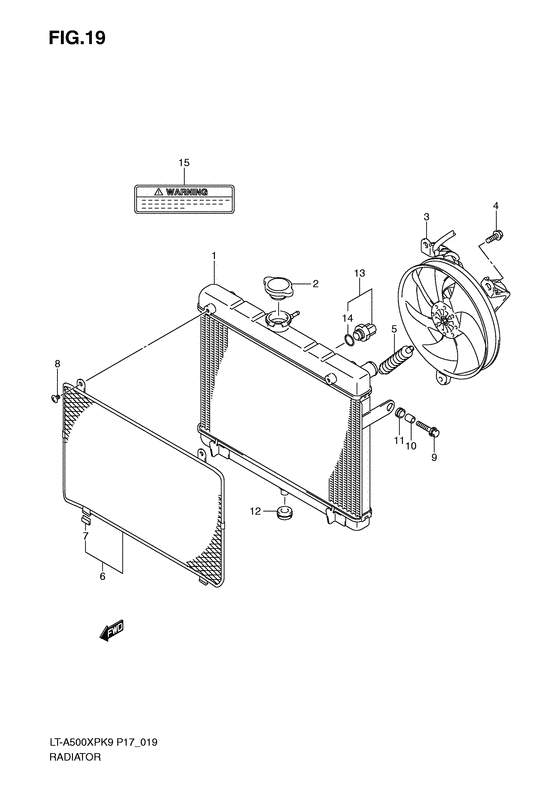

Radiator Diagram Suzuki LT-A500 KingQuad 500AXi LE Power Steering
- Model code
- LT-A500XPZ K9
- Engine Capacity
- 493
- Year
- 2009
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*9710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17710-31G20-000
Radiator assy
|
17710-31G20-000 |
— | ||
| replacement | |||||
|
1
|
1
17710-31G40-000 RADIATOR ASSY |
17710-31G40-000 |
US $277.53 |
||
|
2
|
2
17730-14G00-000 CAP,RADIATOR(1.1)Cap assy, radiator Cap assy, radiator; |
17730-14G00-000 |
from US $12.46 |
||
|
3
|
3
17800-31G10-000 FAN ASSY,RADIATOR |
17800-31G10-000 |
from US $313.48 |
||
|
4
|
4
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
5
|
5
17820-07G10-000 BOOT,RDTR FAN MOTORBoot, rdtr fan motor Boot, rdtr fan motor; |
17820-07G10-000 |
US $10.08 |
||
|
6
|
6
17760-09F00-000
COVER,RADIATOR
|
17760-09F00-000 |
— | ||
| replacement | |||||
|
6
|
6
17760-09F01-000 Cover Comp,radiator |
17760-09F01-000 |
US $71.03 |
||
|
7
|
7
17765-09F00-000
PROTECTOR,CTR
Protector; |
17765-09F00-000 |
— | ||
| replacement | |||||
|
7
|
7
17765-09F01-000 Protector,ctrProtector; |
17765-09F01-000 |
from US $2.17 |
||
|
8
|
8
02142-0608B-000 SCREWScrew; |
02142-0608B-000 |
from US $0.77 |
||
|
9
|
9
09118-06097-000 BOLT(6X25)Bolt, 6x25; |
09118-06097-000 |
from US $0.91 |
||
|
10
|
10
09180-06290-000 SPACER(6.5X10X12)Spacer, 6.5x10x12 Spacer, 6.5x10x12; |
09180-06290-000 |
from US $1.76 |
||
|
11
|
11
09320-10042-000 CUSHION |
09320-10042-000 |
from US $1.67 |
||
|
12
|
12
09320-12036-000 CUSHIONCushion, holder Cushion, lower; |
09320-12036-000 |
from US $1.92 |
||
|
13
|
13
17680-50F00-000
SWITCH,FAN THERMO
|
17680-50F00-000 |
— | ||
| replacement | |||||
|
13
|
13
17680-50F01-000 Switch Comp,rdtr Fan |
17680-50F01-000 |
from US $32.80 |
||
|
14
|
14
17689-50F00-000 O-RING |
17689-50F00-000 |
from US $1.60 |
||
|
15
|
15
17991-02F40-000
LABEL,COOLING FAN
P17 |
17991-02F40-000 |
— | ||
| replacement | |||||
|
15
|
15
17991-02F41-000 Label,cooling FanP17 |
17991-02F41-000 |
from US $3.39 |
||
|
15
|
15
17991-02F01-000
LABEL,COOLING FAN
Label, cooling fan; P24 |
17991-02F01-000 |
— | ||
| replacement | |||||
|
15
|
15
17991-02F02-000 Label,cooling FanLabel, cooling fan; P24 |
17991-02F02-000 |
from US $3.39 |
||
