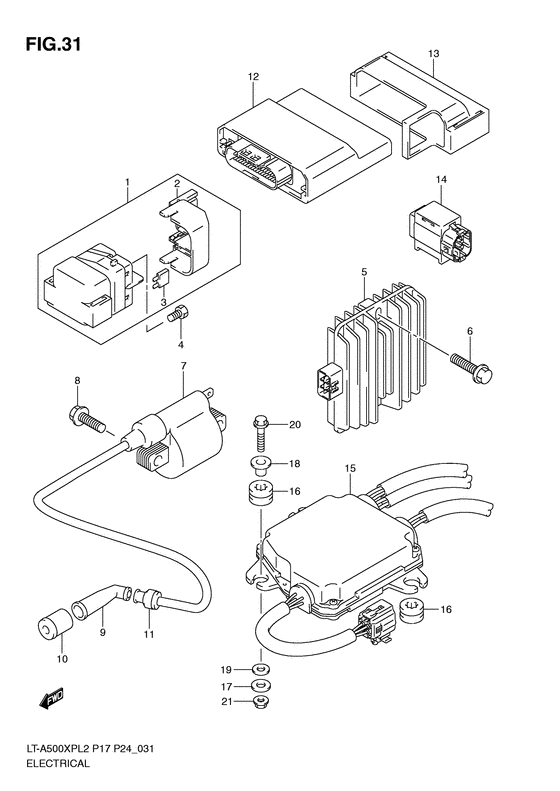

Electrical Diagram Suzuki LT-A500 KingQuad 500AXi LE Power Steering
- Model code
- LT-A500XPZ L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-41G00-000
RELAY ASSY,STARTING MOTOR
Relay assy, starting motor; |
31800-41G00-000 |
— | ||
| replacement | |||||
|
1
|
1
31800-41G10-000 RELAY ASSY,STARTING MOTORRelay assy, starting motor; |
31800-41G10-000 |
from US $88.20 |
||
|
2
|
2
31861-38G00-000 COVERCover, starter relay |
31861-38G00-000 |
from US $2.43 |
||
|
3
|
3
09481-30501-000 FUSE(30A)Fuse (30a); |
09481-30501-000 |
from US $1.08 |
||
|
4
|
4
09128-06013-000 SCREW(6X8)Screw Screw (6x8); |
09128-06013-000 |
from US $1.94 |
||
|
5
|
5
32800-42F00-000 Rectifier Assy |
32800-42F00-000 |
from US $203.83 |
||
|
6
|
6
02162-0625B-000 SCREW |
02162-0625B-000 |
from US $3.32 |
||
|
7
|
7
33410-19B10-000 COIL ASSY,IGNITION |
33410-19B10-000 |
US $133.40 |
||
|
8
|
8
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
9
|
9
33510-43010-000 Cap,spark plugCap, spark plug |
33510-43010-000 |
from US $19.73 |
||
|
10
|
10
33541-44D00-000 SEAL,SPARK PLUGSeal, spark plug cap; |
33541-44D00-000 |
from US $4.93 |
||
|
11
|
11
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, high tension cord; |
33542-38B00-000 |
from US $1.52 |
||
|
12
|
12
32920-31H70-000
CONTROL UNIT,FI
|
32920-31H70-000 |
— | ||
| replacement | |||||
|
12
|
12
32920-31H71-000 Control Unit,fi |
32920-31H71-000 |
US $891.99 |
||
|
13
|
13
32980-31G00-000 HOLDER,FI CONTROL UNIT |
32980-31G00-000 |
from US $7.95 |
||
|
14
|
14
33960-06G10-000 SENSOR ASSY,FUEL CUT |
33960-06G10-000 |
from US $60.04 |
||
|
15
|
15
32910-31H00-000
CONTROL UNIT,EPS
|
32910-31H00-000 |
— | ||
| replacement | |||||
|
15
|
15
32910-31H01-000 Control Unit,eps |
32910-31H01-000 |
from US $714.56 |
||
|
16
|
16
32912-31G00-000 CUSHION,EPS |
32912-31G00-000 |
US $1.95 |
||
|
17
|
17
09160-06094-000 WASHER(6.5X15X1.0)Washer (6.5x15x1.5) Washer (6.5x15x1.5); |
09160-06094-000 |
from US $0.91 |
||
|
18
|
18
09169-06075-000 WASHER |
09169-06075-000 |
from US $1.22 |
||
|
19
|
19
09169-06076-000 WASHER |
09169-06076-000 |
from US $4.88 |
||
|
20
|
20
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
21
|
21
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
