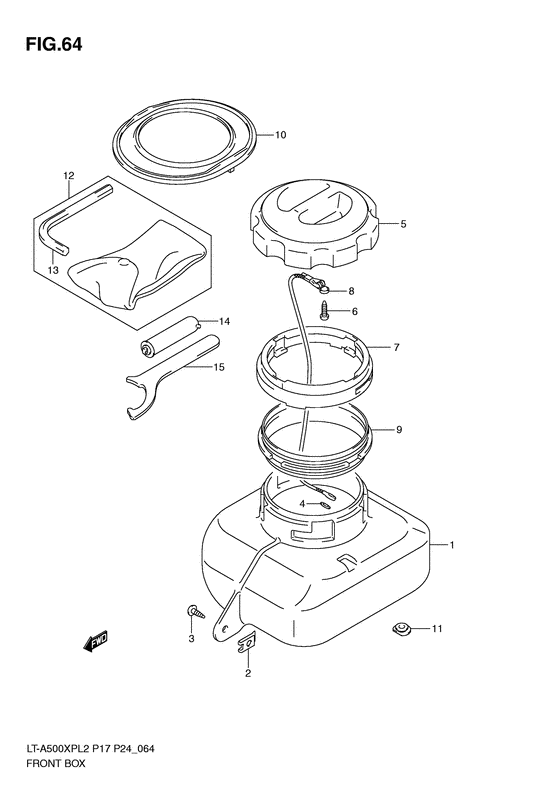

Front box Diagram Suzuki LT-A500 KingQuad 500AXi LE Power Steering
- Model code
- LT-A500XPZ L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92111-31G10-000 BODY,FR BOX |
92111-31G10-000 |
US $36.99 |
||
|
2
|
2
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
3
|
3
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
4
|
4
09160-05013-000 WASHER(5.2X16X1)Washer Washer (5.2x16x1); |
09160-05013-000 |
from US $0.76 |
||
|
5
|
5
92112-31G00-000 LID,FR BOX |
92112-31G00-000 |
US $33.71 |
||
| replacement | |||||
|
5
|
5
92112-31G01-000 LID,FRONT BOX |
92112-31G01-000 |
US $35.58 |
||
|
6
|
6
03511-0512B-000 SCREW |
03511-0512B-000 |
from US $3.42 |
||
|
7
|
7
92113-03G00-000 HOLDER,FR BOX |
92113-03G00-000 |
US $23.52 |
||
|
8
|
8
92114-03G10-000 Stopper, front box |
92114-03G10-000 |
US $26.65 |
||
| replacement | |||||
|
8
|
8
92114-03G20-000 STOPPER,FR BOX |
92114-03G20-000 |
from US $5.30 |
||
|
9
|
9
92141-31G00-000 CUSHION,FR BOX |
92141-31G00-000 |
US $24.41 |
||
|
10
|
10
92142-31G00-000 CUSHION,FR BOX NO.1Cushion, no.1; |
92142-31G00-000 |
from US $11.92 |
||
|
11
|
11
09250-10011-000
CAP(OD:18)
Cap (od:18); |
09250-10011-000 |
— | ||
| replacement | |||||
|
11
|
11
09250-10033-000 CapCap (od:18); |
09250-10033-000 |
from US $1.68 |
||
|
12
|
12
09800-21055-000
TOOL ASSY
|
09800-21055-000 |
— | ||
| replacement | |||||
|
12
|
12
09800-21102-000 Tool Assy |
09800-21102-000 |
from US $27.27 |
||
|
13
|
13
09816-00103-000 SPANNER,HEXAGON(4)Hexagon, spanner 4; |
09816-00103-000 |
from US $2.72 |
||
|
14
|
14
96200-18A02-000 GAUGE ASSY,AIR PRESSUREGuage assy, air Gauge, air; |
96200-18A02-000 |
US $67.61 |
||
|
15
|
15
09822-00003-000 CLAMP |
09822-00003-000 |
from US $5.59 |
||
