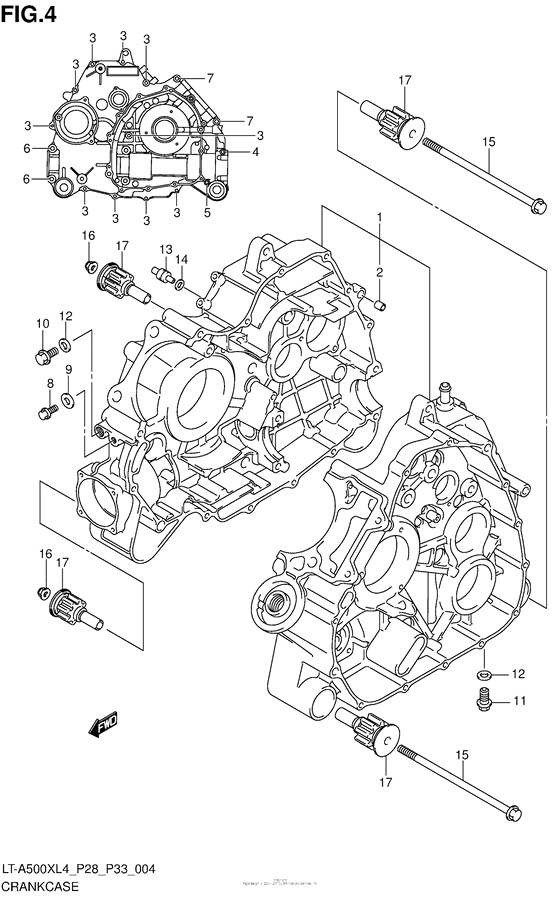

Crankcase Diagram Suzuki LT-A500 KingQuad 500AXi Limited Edition
- Model code
- LT-A500XZ L4
- Engine Capacity
- 493
- Year
- 2014
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11301-11871-000 CRANKCASE SET |
11301-11871-000 |
from US $1,197.12 |
||
|
2
|
2
04211-11169-000 PINPin, dowel |
04211-11169-000 |
from US $1.06 |
||
|
3
|
3
01547-0650A-000 Bolt |
01547-0650A-000 |
from US $0.91 |
||
|
4
|
4
01547-0680A-000 BOLTBolt (6x80) |
01547-0680A-000 |
from US $4.49 |
||
|
5
|
5
01547-0690A-000 Bolt |
01547-0690A-000 |
from US $1.22 |
||
|
6
|
6
01550-0850A-000 Bolt |
01550-0850A-000 |
from US $5 |
||
|
7
|
7
01550-0875A-000 BOLT |
01550-0875A-000 |
from US $1.60 |
||
|
8
|
8
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
9
|
9
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
10
|
10
09247-12006-000 PLUG(12X10) |
09247-12006-000 |
from US $1.98 |
||
|
11
|
11
09247-12104-000 PLUG(12X9) |
09247-12104-000 |
from US $2.24 |
||
|
12
|
12
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
|
13
|
13
09493-20014-000 JET,OIL GALLERYJet, t/m oil gallery |
09493-20014-000 |
from US $11.20 |
||
|
14
|
14
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet |
09280-04004-000 |
from US $1.82 |
||
|
15
|
15
09103-10118-000 BOLT(10X195)Bolt (l:195) |
09103-10118-000 |
from US $14.69 |
||
|
16
|
16
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
17
|
17
11651-31G10-000 BUSH,ENGINE MOUNTING |
11651-31G10-000 |
US $29.63 |
