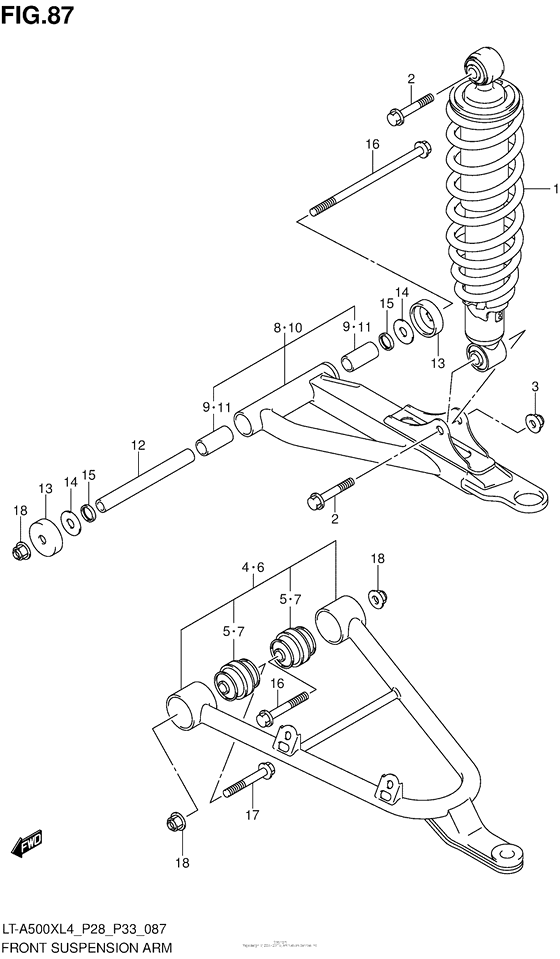

Front Suspension Arm Diagram Suzuki LT-A500 KingQuad 500AXi Limited Edition
- Model code
- LT-A500XZ L4
- Engine Capacity
- 493
- Year
- 2014
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52100-11H10-019 ABSORBER ASSY,FR SHOCK |
52100-11H10-019 |
from US $185.93 |
||
|
2
|
2
09103-10126-000 BOLT(10X48)Bolt (10x48) |
09103-10126-000 |
from US $2.13 |
||
|
3
|
3
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
4
|
4
52410-31820-000 ARM SET,SUSPENSION LWR,R |
52410-31820-000 |
from US $357.51 |
||
|
5
|
5
09319-10055-000 BUSHBush, suspension arm |
09319-10055-000 |
from US $11.68 |
||
|
6
|
6
52420-31820-000 ARM SET,SUSPENSION LWR,L |
52420-31820-000 |
US $354.18 |
||
|
7
|
7
09319-10055-000 BUSHBush, suspension arm |
09319-10055-000 |
from US $11.68 |
||
|
8
|
8
52430-31820-000 ARM SET,SUSPENSION UPR,R |
52430-31820-000 |
from US $189.52 |
||
|
9
|
9
51236-31G00-000 BUSH,SUSPENSION ARM PIVOT |
51236-31G00-000 |
US $22.73 |
||
|
10
|
10
52440-31820-000 ARM SET,SUSPENSION UPR,L |
52440-31820-000 |
from US $114.77 |
||
|
11
|
11
51236-31G00-000 BUSH,SUSPENSION ARM PIVOT |
51236-31G00-000 |
US $22.73 |
||
|
12
|
12
52455-31G10-000 SPACER,FR SUSPENSION ARM PIVOT |
52455-31G10-000 |
US $36.72 |
||
|
13
|
13
51255-18900-000 DUST SEAL,KNUCKLE ARMSeal, fr suspension arm pivot |
51255-18900-000 |
from US $4.80 |
||
|
14
|
14
08211-10281-000 WASHER |
08211-10281-000 |
from US $3.21 |
||
|
15
|
15
52454-45G00-000 SEAL,SPNSN ARM PVT INNER DUST |
52454-45G00-000 |
US $10.03 |
||
|
16
|
16
09103-10389-000 BOLT(10X160)Bolt, suspension upper (10x160) |
09103-10389-000 |
from US $13.19 |
||
|
17
|
17
09103-10255-000 BOLT(10X57)Bolt, suspension lower (10x57) |
09103-10255-000 |
from US $9.93 |
||
|
18
|
18
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
