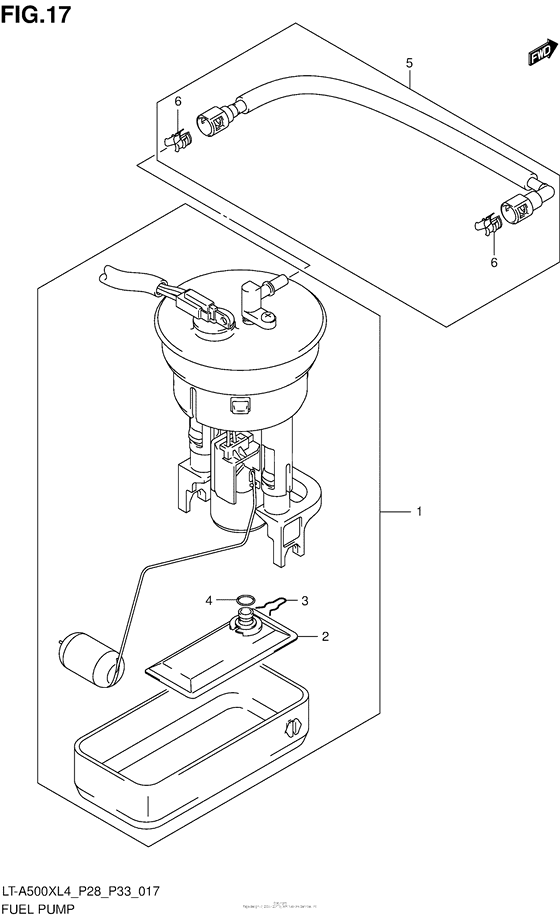

Fuel Pump Diagram Suzuki LT-A500 KingQuad 500AXi Limited Edition
- Model code
- LT-A500XZ L4
- Engine Capacity
- 493
- Year
- 2014
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-31G30-000
PUMP ASSY,FUEL
|
15100-31G30-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-31G31-000 Pump Assy,fuel |
15100-31G31-000 |
US $541.06 |
||
|
2
|
2
15420-31G00-000 FILTER,FUEL PUMP |
15420-31G00-000 |
US $98.19 |
||
|
3
|
3
15421-31G00-000 CLIP |
15421-31G00-000 |
US $4.05 |
||
|
4
|
4
15424-31G00-000 O RING |
15424-31G00-000 |
from US $3.39 |
||
|
5
|
5
15810-31G01-000
HOSE,FUEL
|
15810-31G01-000 |
— | ||
| replacements | |||||
|
5
|
5
15810-31G02-000
HOSE,FUEL
|
15810-31G02-000 |
— | ||
|
5
|
5
15810-31G03-000 Hose Comp,fuel |
15810-31G03-000 |
US $49.66 |
||
|
6
|
6
15815-35F00-000 RETAINER |
15815-35F00-000 |
from US $3.04 |
||
