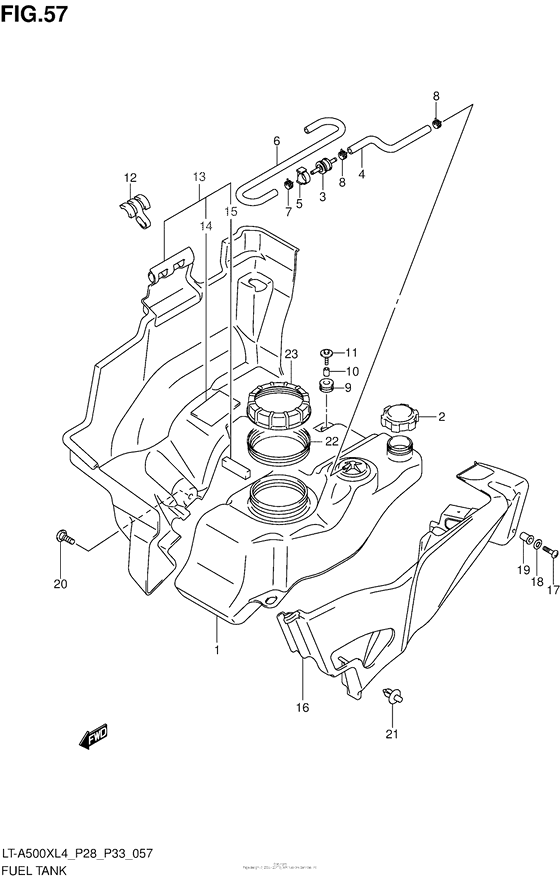

Fuel Tank Diagram Suzuki LT-A500 KingQuad 500AXi Limited Edition
- Model code
- LT-A500XZ L4
- Engine Capacity
- 493
- Year
- 2014
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-31G20-000 TANK ASSY,FUEL |
44100-31G20-000 |
US $328.97 |
||
|
2
|
2
44200-31G00-000 CAP ASSY,FUEL TANK FILLER |
44200-31G00-000 |
US $70.67 |
||
|
3
|
3
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
4
|
4
44425-31G00-000
HOSE,CHECK VALVE
|
44425-31G00-000 |
— | ||
| replacement | |||||
|
4
|
4
44425-31G01-000 Hose,check Valve |
44425-31G01-000 |
from US $9.16 |
||
|
5
|
5
44881-31G00-000 CUSHION,CHECK VALVE |
44881-31G00-000 |
from US $4.89 |
||
|
6
|
6
44434-31G10-000
HOSE,FUEL TANK BREATHER
|
44434-31G10-000 |
— | ||
| replacement | |||||
|
6
|
6
44434-31G11-000 HOSE,FUEL TANK BREATHER |
44434-31G11-000 |
from US $30.18 |
||
|
7
|
7
09401-08409-000 CLIP |
09401-08409-000 |
from US $0.73 |
||
|
8
|
8
09401-09403-000 CLIP |
09401-09403-000 |
from US $1.12 |
||
|
9
|
9
44281-03G00-000 CUSHION,FUEL TANK RR |
44281-03G00-000 |
from US $3.31 |
||
|
10
|
10
09180-06293-000 SPACER(6.5X10X14) |
09180-06293-000 |
from US $1.92 |
||
|
11
|
11
09116-06050-000 BOLT(6X30) |
09116-06050-000 |
from US $3.57 |
||
|
12
|
12
44541-31G00-000 CUSHION,FUEL TANK SIDE |
44541-31G00-000 |
from US $5.12 |
||
|
13
|
13
44390-31G60-000 COVER,F/TANK LO |
44390-31G60-000 |
US $633.10 |
||
|
14
|
14
44542-10G00-000 CUSHION,FUEL TANK NO.1 |
44542-10G00-000 |
from US $5.15 |
||
|
15
|
15
53146-05G00-000 CUSHION,FR FENDER SIDECushion, side |
53146-05G00-000 |
from US $3.53 |
||
|
16
|
16
44391-31G00-000 COVER,FUEL TANK OUTER |
44391-31G00-000 |
from US $87.58 |
||
|
17
|
17
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
18
|
18
09160-05046-000 WASHER(5.5X20X1.4) |
09160-05046-000 |
from US $3.20 |
||
|
19
|
19
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
|
20
|
20
09139-06137-000 SCREW(6X16)Screw |
09139-06137-000 |
from US $1.22 |
||
|
21
|
21
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
22
|
22
44596-10G00-000 PACKING,FUEL PUMPGasket, fuel pump |
44596-10G00-000 |
from US $9.91 |
||
| replacement | |||||
|
22
|
22
44596-10G01-000 Packing,fuel Pump |
44596-10G01-000 |
from US $16.49 |
||
|
23
|
23
44597-10G00-000 RETAINER,FUEL,PUMP |
44597-10G00-000 |
from US $23.18 |
||
