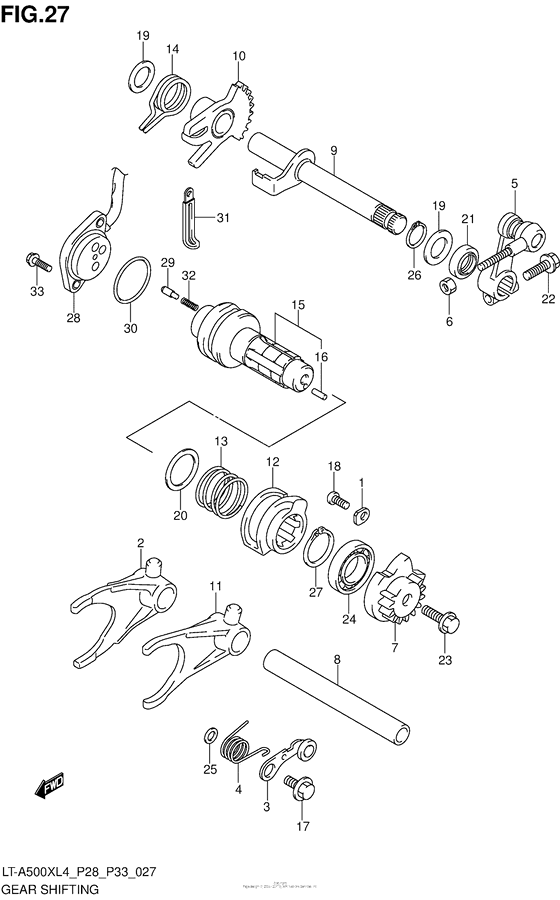

Gear Shifting Diagram Suzuki LT-A500 KingQuad 500AXi Limited Edition
- Model code
- LT-A500XZ L4
- Engine Capacity
- 493
- Year
- 2014
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24741-21A00-000 RETAINER |
24741-21A00-000 |
from US $1.60 |
||
|
2
|
2
25240-31G10-000 FORK,GEAR SHIFT REVERSE |
25240-31G10-000 |
from US $41.22 |
||
|
3
|
3
25350-31G00-000 STOPPER,SHIFT CAM |
25350-31G00-000 |
US $7.40 |
||
|
4
|
4
25355-35F01-000 SPRING,SHIFTSpring, shift cam stopper |
25355-35F01-000 |
from US $2.28 |
||
|
5
|
5
25360-11H00-000 ARM,SELECT |
25360-11H00-000 |
from US $37.90 |
||
|
6
|
6
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
7
|
7
25381-11H00-000 PLATE,GEAR SHIFT CAM STOPPER |
25381-11H00-000 |
US $26.13 |
||
|
8
|
8
25411-38A00-000 SHAFT,GEAR SHIFT FORK(L:115)Shaft, sub t/m gear shift |
25411-38A00-000 |
from US $13.73 |
||
|
9
|
9
25510-31G00-000
SHAFT,GEAR SHIFT
|
25510-31G00-000 |
— | ||
| replacement | |||||
|
9
|
9
25510-31G01-000 Shaft Comp,sub T/m Shift No.2 |
25510-31G01-000 |
from US $44.16 |
||
|
10
|
10
25540-31G00-000 GEAR,SUB T/M SHIFT |
25540-31G00-000 |
from US $15.05 |
||
|
11
|
11
29510-31G10-000 FORK,SUB T/M GEAR SHIFT |
29510-31G10-000 |
US $103.60 |
||
|
12
|
12
29611-31G00-000 CAM,SUB T/M GEAR SHIFT |
29611-31G00-000 |
from US $41.95 |
||
|
13
|
13
29612-31G00-000 SPRING,SUB T/M SHIFT FORK |
29612-31G00-000 |
from US $2.13 |
||
|
14
|
14
29613-31G00-000 SPRING,SHIFT ARM RETURN |
29613-31G00-000 |
from US $3.31 |
||
|
15
|
15
29620-31G11-000 SHAFT,SUB T/M GEAR SHIFT |
29620-31G11-000 |
from US $96.78 |
||
|
16
|
16
04221-04089-000 PINPin, bal sprocket driven |
04221-04089-000 |
from US $0.76 |
||
|
17
|
17
09111-06041-000 BOLT(6X14.3)Bolt, sub t/m shift cam |
09111-06041-000 |
from US $4 |
||
|
18
|
18
09125-06122-000 SCREW(6X12) |
09125-06122-000 |
from US $3.35 |
||
|
19
|
19
09181-14195-000 SHIM(14X24X1)Washer, sub t/m shift s |
09181-14195-000 |
from US $4.13 |
||
|
20
|
20
09181-25139-000 SHIM(25X32X1)Washer, shift cam spring |
09181-25139-000 |
from US $4.10 |
||
|
21
|
21
09283-14006-000 SEAL,OIL(14X22X6) |
09283-14006-000 |
from US $3.62 |
||
|
22
|
22
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
23
|
23
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
24
|
24
08110-69040-000 Bearing |
08110-69040-000 |
from US $19.32 |
||
|
25
|
25
08211-06121-000 WASHERWasher, shift cam stopper |
08211-06121-000 |
from US $2.45 |
||
|
26
|
26
08331-3114A-000 CIRCLIPCirclip, sub t/m gr shift |
08331-3114A-000 |
from US $0.91 |
||
|
27
|
27
08331-31259-000 CIRCLIP |
08331-31259-000 |
from US $1.38 |
||
|
28
|
28
37720-31G00-000 BASE ASSY,GEAR SHIFT TERMINAL |
37720-31G00-000 |
US $128.95 |
||
|
29
|
29
09209-05011-000 PIN(5X15.5)Contact |
09209-05011-000 |
from US $1.51 |
||
|
30
|
30
09280-35006-000 O RING(D:2.4,ID:35.5)O-ring, gear shift sw |
09280-35006-000 |
from US $2.08 |
||
|
31
|
31
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
32
|
32
09440-04010-000 SPRING |
09440-04010-000 |
from US $1.06 |
||
|
33
|
33
07120-0516A-000 BOLT |
07120-0516A-000 |
from US $3.59 |
||
