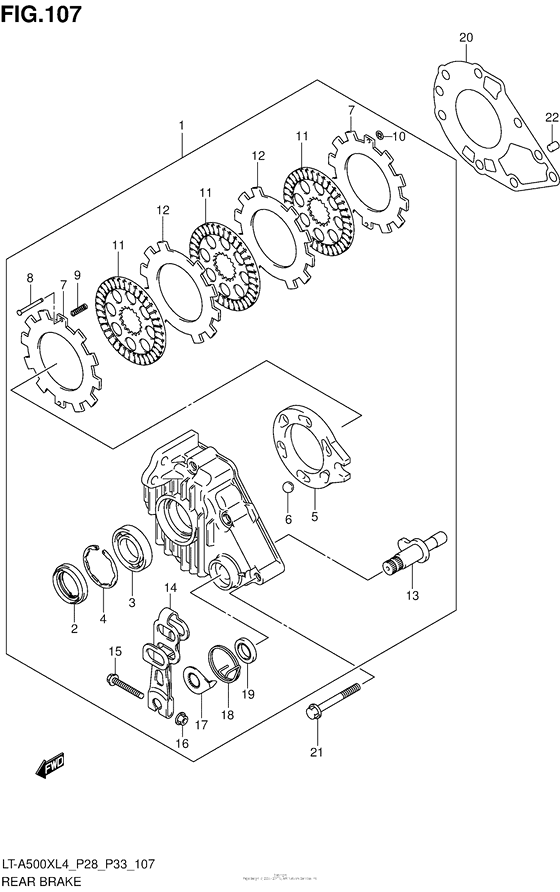

Rear Brake Diagram Suzuki LT-A500 KingQuad 500AXi Limited Edition
- Model code
- LT-A500XZ L4
- Engine Capacity
- 493
- Year
- 2014
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64200-31G20-000 BRAKE ASSY,RR |
64200-31G20-000 |
from US $556.16 |
||
|
2
|
2
09283-34008-000 SEAL,OIL(34X52X9) |
09283-34008-000 |
from US $11.44 |
||
|
3
|
3
08113-60050-000 BEARINGBearing, lh |
08113-60050-000 |
from US $10.72 |
||
|
4
|
4
64215-31G00-000 CIRCLIP,RR BRAKE CASE |
64215-31G00-000 |
from US $4.20 |
||
|
5
|
5
64292-31G00-000 PLATE,PRESSURE |
64292-31G00-000 |
US $72.40 |
||
|
6
|
6
64295-31G00-000 BALL |
64295-31G00-000 |
US $12.56 |
||
|
7
|
7
64293-31G00-000 PLATE,SIDE |
64293-31G00-000 |
US $35.58 |
||
|
8
|
8
64297-31G00-000 PIN,SIDE PLATE |
64297-31G00-000 |
US $9.18 |
||
|
9
|
9
64296-31G00-000 SPRING,SIDE PLATE |
64296-31G00-000 |
US $8.65 |
||
|
10
|
10
64298-31G00-000 NUT,SIDE PLATE |
64298-31G00-000 |
US $6.83 |
||
|
11
|
11
64420-31G00-000 PLATE,FRICTION |
64420-31G00-000 |
US $87.99 |
||
|
12
|
12
64294-31G00-000 PLATE,SEPARATOR |
64294-31G00-000 |
US $33.39 |
||
|
13
|
13
64440-31G01-000 CAM,RR BRAKE |
64440-31G01-000 |
from US $49.68 |
||
|
14
|
14
64451-31G10-000 LEVER,RR BRAKE CAM |
64451-31G10-000 |
from US $30.36 |
||
|
15
|
15
64455-31G00-000
BOLT,RR BRAKE CAM LEVER
|
64455-31G00-000 |
— | ||
|
16
|
16
64456-31G00-000
NUT,RR BRAKE CAM LEVER
|
64456-31G00-000 |
— | ||
|
17
|
17
64492-31G00-000
PLATE,BRAKE LINING INDICATOR
|
64492-31G00-000 |
— | ||
|
18
|
18
64484-31G00-000 SPRING,RR BRAKE CAM LEVER |
64484-31G00-000 |
US $16.95 |
||
|
19
|
19
64443-31G01-000 SEAL,RR BRAKE CAM |
64443-31G01-000 |
US $33.39 |
||
|
20
|
20
64124-31G00-000 GASKET,RR BRAKE CASE |
64124-31G00-000 |
from US $8 |
||
|
21
|
21
09103-08332-000 BOLT(8X53)Bolt, rear |
09103-08332-000 |
from US $6.26 |
||
|
22
|
22
09261-09002-000 PIN(9X10)Pin, rr brake case knock |
09261-09002-000 |
from US $4.76 |
