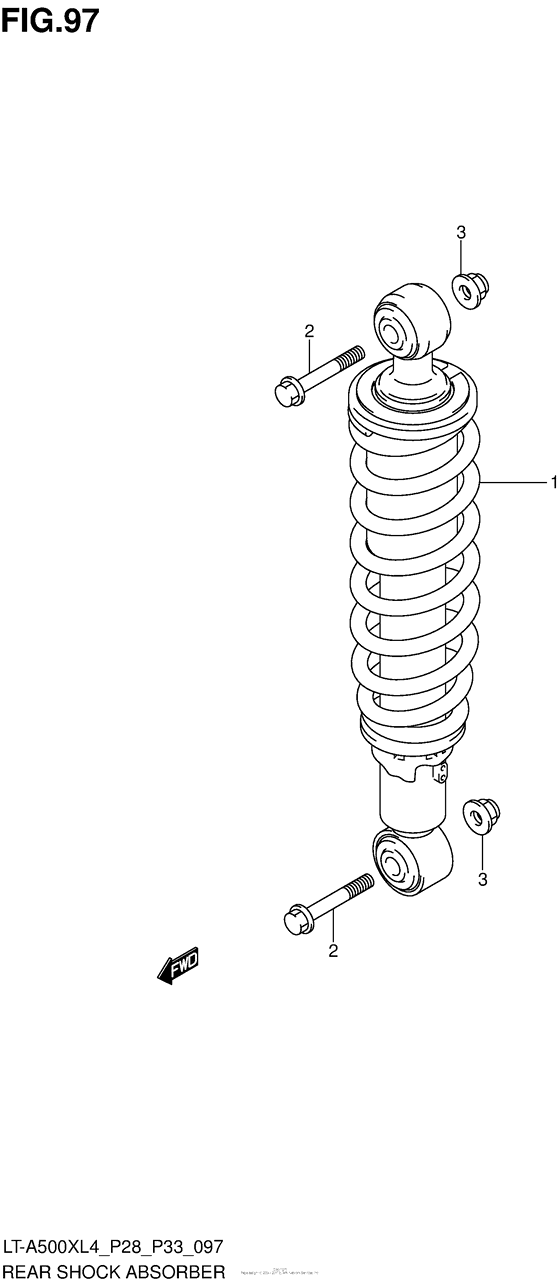

Rear Shock Absorber Diagram Suzuki LT-A500 KingQuad 500AXi Limited Edition
- Model code
- LT-A500XZ L4
- Engine Capacity
- 493
- Year
- 2014
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-11H10-019
ABSORBER ASSY,RR SHOCK
|
62100-11H10-019 |
— | ||
|
2
|
2
09103-10385-000 BOLT(10X48) |
09103-10385-000 |
from US $9.45 |
||
|
3
|
3
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
