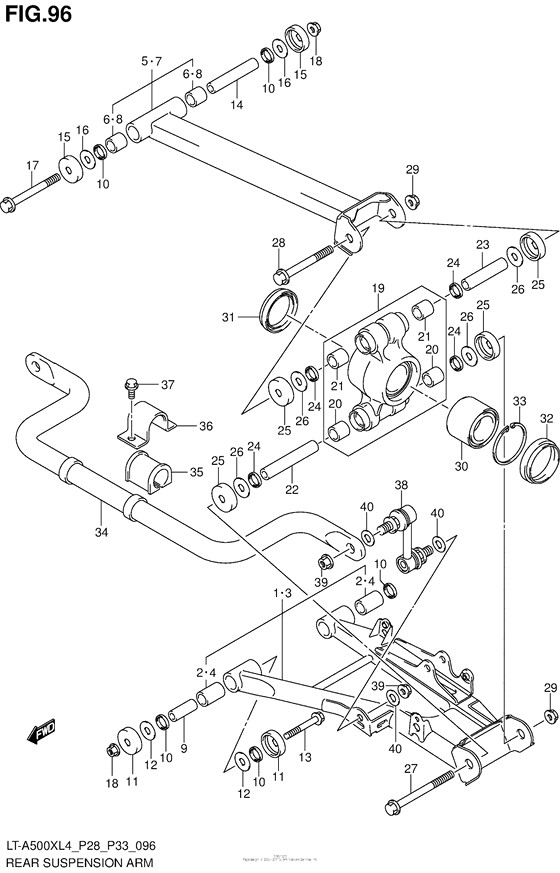

Rear Suspension Arm Diagram Suzuki LT-A500 KingQuad 500AXi Limited Edition
- Model code
- LT-A500XZ L4
- Engine Capacity
- 493
- Year
- 2014
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61510-31821-000 ARM SET,RR SUSPENSION LWR,R |
61510-31821-000 |
from US $387.11 |
||
|
2
|
2
51236-31G00-000 BUSH,SUSPENSION ARM PIVOT |
51236-31G00-000 |
US $22.73 |
||
|
3
|
3
61520-31821-000 ARM SET,RR SUSPENSION LWR,L |
61520-31821-000 |
from US $394.43 |
||
|
4
|
4
51236-31G00-000 BUSH,SUSPENSION ARM PIVOT |
51236-31G00-000 |
US $22.73 |
||
|
5
|
5
61530-31830-000 ARM SET,RR SUSPENSION UPR,RArm set, rr suspension upper, r |
61530-31830-000 |
from US $131.38 |
||
|
6
|
6
51236-31G00-000 BUSH,SUSPENSION ARM PIVOT |
51236-31G00-000 |
US $22.73 |
||
|
7
|
7
61540-31830-000 ARM SET,RR SUSPENSION UPR,L |
61540-31830-000 |
from US $131.38 |
||
|
8
|
8
51236-31G00-000 BUSH,SUSPENSION ARM PIVOT |
51236-31G00-000 |
US $22.73 |
||
|
9
|
9
61552-31G10-000 SPACER,RR SPNSN ARM LWR |
61552-31G10-000 |
from US $8.98 |
||
|
10
|
10
52454-45G00-000 SEAL,SPNSN ARM PVT INNER DUST |
52454-45G00-000 |
US $10.03 |
||
|
11
|
11
51255-18900-000 DUST SEAL,KNUCKLE ARMSeal, fr suspension arm pivot |
51255-18900-000 |
from US $4.80 |
||
|
12
|
12
08211-10281-000 WASHER |
08211-10281-000 |
from US $3.21 |
||
|
13
|
13
09103-10392-000 BOLT(10X70)Bolt, rr spnsn arm lower |
09103-10392-000 |
from US $2.89 |
||
|
14
|
14
61554-31G00-000 SPACERSpacer, rr spnsn arm upper |
61554-31G00-000 |
from US $12 |
||
|
15
|
15
51255-31G00-000 SEAL,RR SPNSN ARM UPR DUST |
51255-31G00-000 |
US $22.70 |
||
|
16
|
16
08211-10281-000 WASHER |
08211-10281-000 |
from US $3.21 |
||
|
17
|
17
09103-10388-000 BOLT(10X120)Bolt, rr spnsn arm upper |
09103-10388-000 |
from US $9.01 |
||
|
18
|
18
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
19
|
19
61600-11820-000 KNUCKLE SET,RR SUSPENSION |
61600-11820-000 |
from US $160.45 |
||
|
20
|
20
51236-31G00-000 BUSH,SUSPENSION ARM PIVOT |
51236-31G00-000 |
US $22.73 |
||
|
21
|
21
61551-31G10-000 BUSH,RR KNUCKLE UPR |
61551-31G10-000 |
from US $7.29 |
||
|
22
|
22
61554-31G00-000 SPACERSpacer, rr spnsn arm upper |
61554-31G00-000 |
from US $12 |
||
|
23
|
23
61553-31G10-000 SPACER,RR KNUCKLE UPR |
61553-31G10-000 |
US $23.87 |
||
|
24
|
24
52454-45G00-000 SEAL,SPNSN ARM PVT INNER DUST |
52454-45G00-000 |
US $10.03 |
||
|
25
|
25
51255-18900-000 DUST SEAL,KNUCKLE ARMSeal, fr suspension arm pivot |
51255-18900-000 |
from US $4.80 |
||
|
26
|
26
08211-10281-000 WASHER |
08211-10281-000 |
from US $3.21 |
||
|
27
|
27
09103-10388-000 BOLT(10X120)Bolt, rr spnsn arm upper |
09103-10388-000 |
from US $9.01 |
||
|
28
|
28
09103-10387-000 BOLT(10X96)Bolt, rr knuckle upper |
09103-10387-000 |
from US $9.67 |
||
|
29
|
29
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
30
|
30
43440-58J00-000
BEARING,FR WHEEL
|
43440-58J00-000 |
— | ||
| replacement | |||||
|
30
|
30
43440-58J01-000 BEARING,FR WHEEL |
43440-58J01-000 |
from US $53.57 |
||
|
31
|
31
61615-31G00-000 SEAL,RR HUB INNER DUST |
61615-31G00-000 |
US $28.29 |
||
|
32
|
32
61616-31G00-000 SEAL,RR HUB OUTER DUST |
61616-31G00-000 |
US $25.09 |
||
|
33
|
33
08331-4162A-000 CIRCLIP |
08331-4162A-000 |
from US $1.96 |
||
|
34
|
34
61651-31G10-000 BAR,RR STABILIZER |
61651-31G10-000 |
from US $121.44 |
||
|
35
|
35
61652-31G20-000
BUSH,RR STABILIZER
|
61652-31G20-000 |
— | ||
| replacement | |||||
|
35
|
35
61652-34K00-000 Bush,rr Stabilizer |
61652-34K00-000 |
US $9.74 |
||
|
36
|
36
42415-66D00-000 BRACKET,STABILIZER BAR MOUNT |
42415-66D00-000 |
from US $5 |
||
|
37
|
37
09103-08283-A05
BOLT(8X16)
|
09103-08283-A05 |
— | ||
| replacement | |||||
|
37
|
37
09103-08570-000 Bolt,front Grip |
09103-08570-000 |
from US $3.69 |
||
|
38
|
38
61660-31G20-000 JOINT,RR STABILIZER |
61660-31G20-000 |
US $106.37 |
||
|
39
|
39
09159-10223-000
NUT
|
09159-10223-000 |
— | ||
|
40
|
40
09160-10039-000 WASHER(10.5X22X2.3) |
09160-10039-000 |
from US $1.06 |
||
