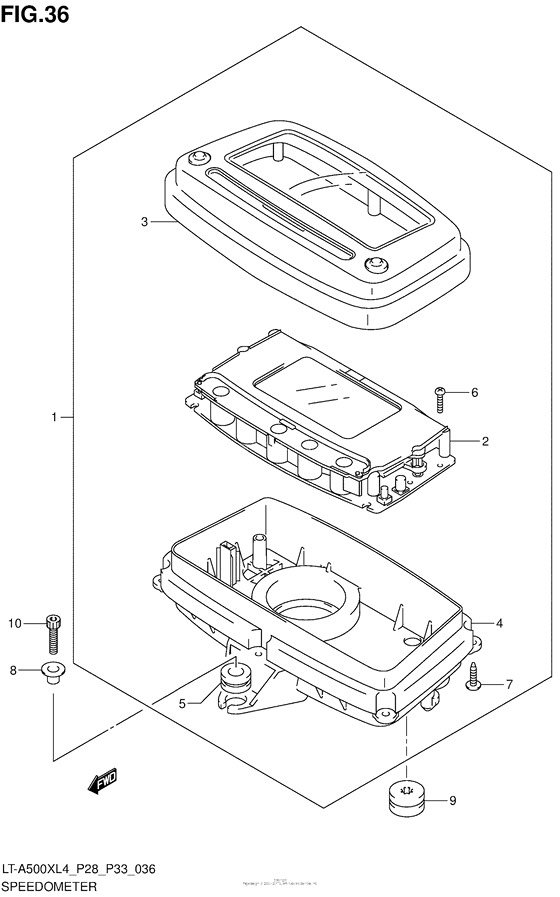

Speedometer (Lt-A500Xzl4 P28) Diagram Suzuki LT-A500 KingQuad 500AXi Limited Edition
- Model code
- LT-A500XZ L4
- Engine Capacity
- 493
- Year
- 2014
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-11HA0-000 SPEEDOMETER ASSY |
34100-11HA0-000 |
from US $401.28 |
||
|
2
|
2
34120-11HA0-000
Speedometer
|
34120-11HA0-000 |
— | ||
|
3
|
3
34150-31G30-000 CASE,UPR |
34150-31G30-000 |
US $74.07 |
||
|
4
|
4
34111-31G30-000
CASE,LWR
|
34111-31G30-000 |
— | ||
|
5
|
5
34995-31G30-000
CUSHION,RUBBER
|
34995-31G30-000 |
— | ||
|
6
|
6
34147-31G30-000 SCREW(3X10) |
34147-31G30-000 |
from US $2.79 |
||
|
7
|
7
34149-31G30-000
SCREW(3X12)
|
34149-31G30-000 |
— | ||
|
8
|
8
34187-47F00-000 SPACER,SPEEDOMETERSpacer, speedometer |
34187-47F00-000 |
from US $4.32 |
||
|
9
|
9
34955-13E00-000
CUSHION
|
34955-13E00-000 |
— | ||
| replacement | |||||
|
9
|
9
34955-13E01-000 Cushion,speedometer |
34955-13E01-000 |
from US $2.82 |
||
|
10
|
10
07130-0520B-000 BoltBolt, speedometer |
07130-0520B-000 |
from US $4 |
||
