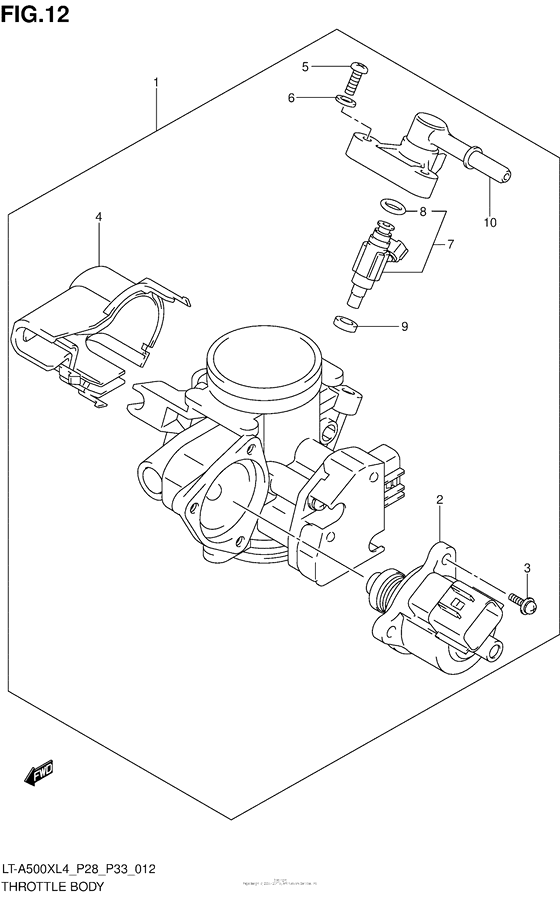

Throttle Body Diagram Suzuki LT-A500 KingQuad 500AXi Limited Edition
- Model code
- LT-A500XZ L4
- Engine Capacity
- 493
- Year
- 2014
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-31H01-000
BODY ASSY,THROTTLE
|
13400-31H01-000 |
— | ||
| replacements | |||||
|
1
|
1
13400-31H02-000
BODY ASSY,THROTTLE
|
13400-31H02-000 |
— | ||
|
1
|
1
13400-31H03-000 Body Assy,throttle |
13400-31H03-000 |
US $882.06 |
||
|
2
|
2
13520-31G00-000 MOTER,ISC STEPPING |
13520-31G00-000 |
from US $126.59 |
||
|
3
|
3
13601-13G00-000 SCREWBolt |
13601-13G00-000 |
from US $1.77 |
||
|
4
|
4
13578-31G00-000 COVER |
13578-31G00-000 |
from US $7.58 |
||
|
5
|
5
13601-11J00-000 SCREW |
13601-11J00-000 |
from US $2.83 |
||
|
6
|
6
13602-29G00-000
PACKING
|
13602-29G00-000 |
— | ||
| replacement | |||||
|
6
|
6
13602-29G01-000 Packing |
13602-29G01-000 |
from US $1.73 |
||
|
7
|
7
15710-11H00-000 INJECTOR ASSY,FUEL |
15710-11H00-000 |
US $368.85 |
||
|
8
|
8
15717-16G00-000 O RING |
15717-16G00-000 |
from US $5.47 |
||
|
9
|
9
15722-29G00-000 SEAL |
15722-29G00-000 |
from US $4.10 |
||
|
10
|
10
15731-31G10-000 Delivery Pipe |
15731-31G10-000 |
US $236.08 |
||
