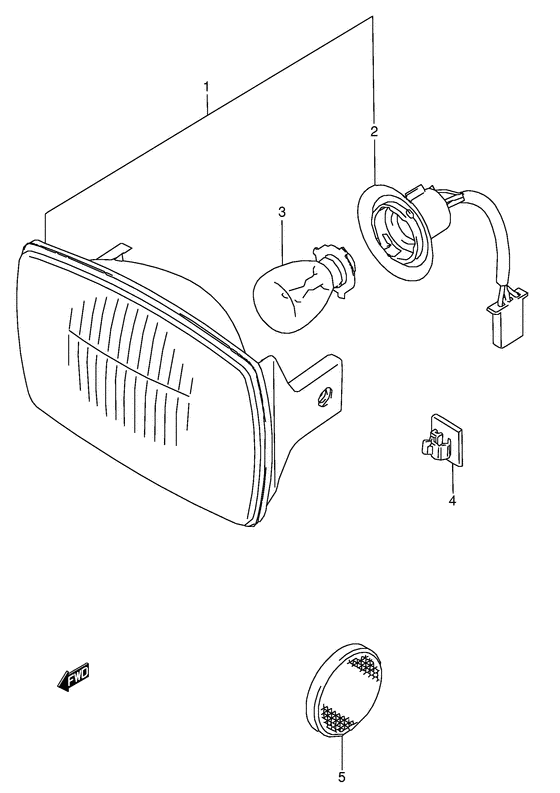

Headlamp Diagram Suzuki LT-F160 QuadRunner
- Model code
- LT-F160 K3
- Engine Capacity
- 158
- Year
- 2003
- Sales region
- Canada (P28)
- Frame
- KM434AG43A*31100001~
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-02C30-000 HEADLAMP ASSY |
35100-02C30-000 |
from US $135.79 |
||
|
2
|
2
35171-36X50-000 SOCKET,HEADLAMP |
35171-36X50-000 |
from US $11.89 |
||
|
3
|
3
09471-12080-000 BULB(12V45/45W,STANLEY,70281A)Bulb (12v,45/45w); |
09471-12080-000 |
from US $9.86 |
||
|
4
|
4
09403-06310-000 CLAMP |
09403-06310-000 |
from US $2.15 |
||
|
5
|
5
35950-14A00-000 REFLECTOR,REFLEX FRReflex-reflector assy, fr Reflector, front side; |
35950-14A00-000 |
from US $21.60 |
