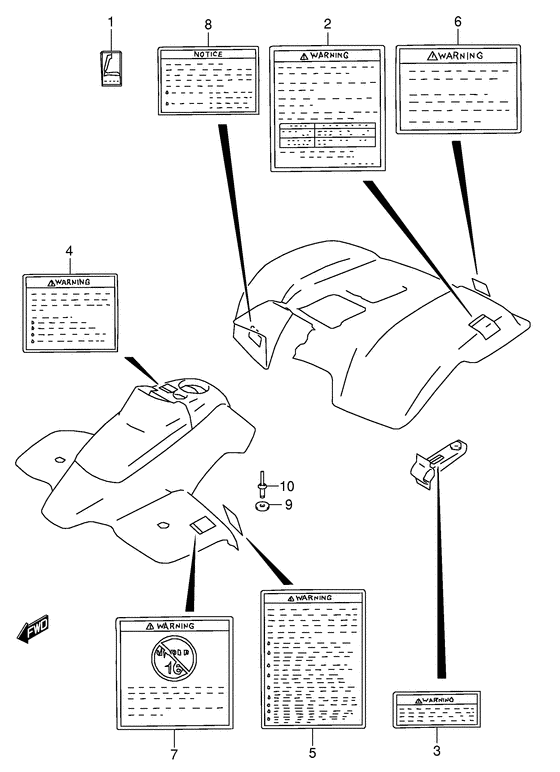

Label Diagram Suzuki LT-F160 QuadRunner
- Model code
- LT-F160 K3
- Engine Capacity
- 158
- Year
- 2003
- Sales region
- Canada (P28)
- Frame
- KM434AG43A*31100001~
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68392-24210-000 LABEL,GEAR SHIFT PATTERNLabel, gear shift Label, gear shift pattern; |
68392-24210-000 |
from US $1.62 |
||
|
2
|
2
68332-02CB0-000 LABEL,TIRE INFORMATIONLabel, tire information; |
68332-02CB0-000 |
from US $14.06 |
||
|
2
|
2
68332-02CA0-000
Label, tire information
|
68332-02CA0-000 |
— | ||
| replacement | |||||
|
2
|
2
68332-02CA1-000
Label, tire (english)
|
68332-02CA1-000 |
— | ||
|
3
|
3
68617-02C40-000
LABEL,WARNING TRAILER
Label, warning trailer; |
68617-02C40-000 |
— | ||
|
3
|
3
68617-02C50-000
LABEL,WARNING TRAILER
Label, warning trailer; |
68617-02C50-000 |
— | ||
|
4
|
4
68366-02C10-000
LABEL,WARNING REVERSE
Label, warning reverse; |
68366-02C10-000 |
— | ||
| replacement | |||||
|
4
|
4
68366-02C11-000 Label,warning ReverseLabel, warning reverse; |
68366-02C11-000 |
US $8.18 |
||
|
4
|
4
68366-02C20-000
LABEL,WARNING
Label, warning reverse; |
68366-02C20-000 |
— | ||
|
5
|
5
68921-09F00-000 LABEL,GENERAL WARNINGLabel, warning |
68921-09F00-000 |
from US $29.03 |
||
|
5
|
5
68366-20B60-000
LABEL,GENERAL WARNING
|
68366-20B60-000 |
— | ||
| replacement | |||||
|
5
|
5
68366-20B61-000 Label,general Warning |
68366-20B61-000 |
from US $14.87 |
||
|
6
|
6
68367-09F00-000 LABEL,NO PASSENGERLabel, warning no passenger; |
68367-09F00-000 |
from US $12.36 |
||
|
6
|
6
68367-20B60-000
LABEL,NO PASSENGER
Label, warning no passenger; |
68367-20B60-000 |
— | ||
| replacement | |||||
|
6
|
6
68367-20B61-000 Label,no PassengerLabel, warning no passenger; |
68367-20B61-000 |
US $10.39 |
||
|
7
|
7
68931-09F00-000 LABEL,AGE 16 |
68931-09F00-000 |
US $33.05 |
||
|
7
|
7
68367-04640-000
Label, age.16
|
68367-04640-000 |
— | ||
| replacements | |||||
|
7
|
7
68367-04641-000
LABEL,AGE 16
|
68367-04641-000 |
— | ||
|
7
|
7
68367-04642-000 Label,age 16 |
68367-04642-000 |
US $9.20 |
||
|
8
|
8
68341-02C00-000 LABEL,NOTICE CHOKE LIMITERLabel, notice choke limiter Label, notice choke limiter; |
68341-02C00-000 |
US $10.44 |
||
|
8
|
8
68341-02C10-000
LABEL,NOTICE CHOKE LIMITER
Label, notice choke limiter; |
68341-02C10-000 |
— | ||
|
9
|
9
68928-09F00-000 WASHER |
68928-09F00-000 |
from US $1.99 |
||
|
10
|
10
68929-09F00-000 PIVET,WARNING LABEL |
68929-09F00-000 |
from US $1.95 |
||
|
11
|
11
99011-02C73-28B MANUAL,OWNER'SDrawing not shown |
99011-02C73-28B |
US $15.46 |
||
