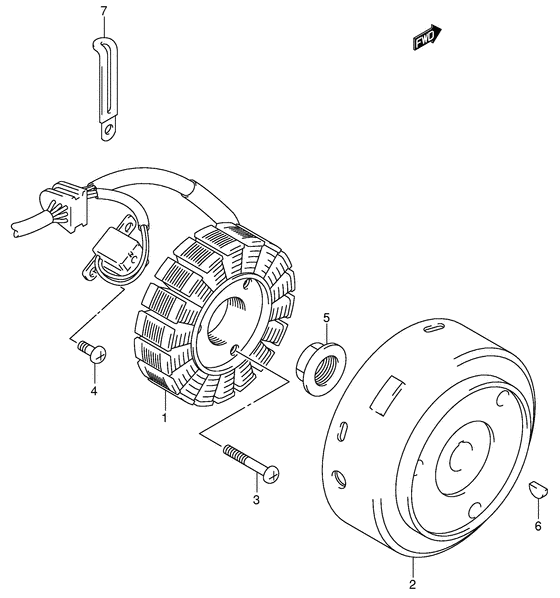

Magneto Diagram Suzuki LT-F160 QuadRunner
- Model code
- LT-F160 K3
- Engine Capacity
- 158
- Year
- 2003
- Sales region
- Canada (P28)
- Frame
- KM434AG43A*31100001~
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-02C10-000
STATOR ASSY
|
32101-02C10-000 |
— | ||
| replacement | |||||
|
1
|
1
32101-02C11-000 Stator Assy |
32101-02C11-000 |
from US $401.28 |
||
|
2
|
2
32102-02C10-000 ROTOR ASSY |
32102-02C10-000 |
from US $461.12 |
||
|
3
|
3
09125-05130-000 SCREW(5X30) |
09125-05130-000 |
US $11 |
||
|
4
|
4
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
5
|
5
31792-18A00-000 NUT,MAGNETO ROTOR |
31792-18A00-000 |
from US $5.78 |
||
|
6
|
6
08341-31039-000 KEYKey; |
08341-31039-000 |
from US $1.60 |
||
|
7
|
7
09404-06432-000
CLAMP(L:65)
Clamp (l:65); |
09404-06432-000 |
— | ||
| replacement | |||||
|
7
|
7
09404-06039-000 Clamp(L:65)Clamp (l:65); |
09404-06039-000 |
from US $1.82 |
||
