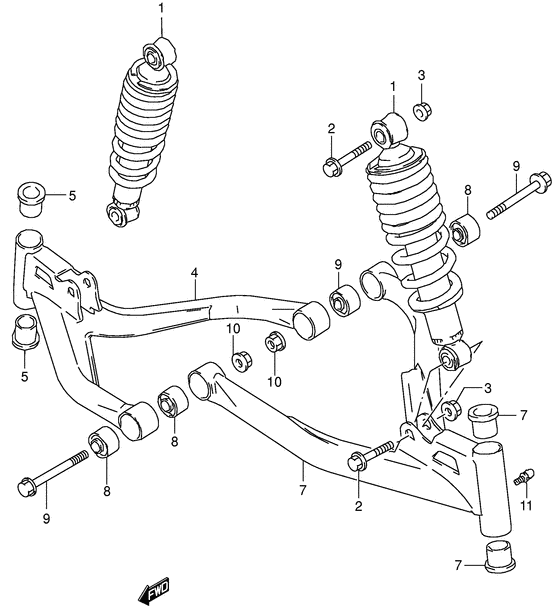

Suspension arm Diagram Suzuki LT-F160 QuadRunner
- Model code
- LT-F160 K3
- Engine Capacity
- 158
- Year
- 2003
- Sales region
- Canada (P28)
- Frame
- KM434AG43A*31100001~
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52100-02C00-019 ABSORBER ASSY,FR SHOCKAbsorber assy, front shock (black) Absorber assy, front shock (black); |
52100-02C00-019 |
from US $204.24 |
||
|
2
|
2
61181-02C00-000 BOLT,RR SHOCK ABSORBERBolt, lower Bolt (10x40); |
61181-02C00-000 |
from US $3.28 |
||
|
3
|
3
08319-31107-000 NUT |
08319-31107-000 |
from US $1.98 |
||
|
4
|
4
52410-02C00-019 ARM,SUSPENSION,R(BLACK)Arm, suspension rh (black) Arm, suspension rh (black); |
52410-02C00-019 |
from US $142.42 |
||
|
5
|
5
51236-40B00-000 BUSH,KINGPIN |
51236-40B00-000 |
from US $10.94 |
||
|
6
|
6
52420-02C00-019 ARM,SUSPENSION,L(BLACK)Arm, suspension lh (black) Arm, suspension lh (black); |
52420-02C00-019 |
from US $142.42 |
||
|
7
|
7
51236-40B00-000 BUSH,KINGPIN |
51236-40B00-000 |
from US $10.94 |
||
|
8
|
8
09319-10049-000 BUSHBush, suspension arm pivot (10x28.1x28); |
09319-10049-000 |
from US $23.14 |
||
|
9
|
9
09103-10173-000 BOLT(10X80)Bolt, suspension arm pivot (10x80); |
09103-10173-000 |
from US $9.35 |
||
|
10
|
10
08316-20103-000
Nut
|
08316-20103-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-2010B-000 NUT |
08316-2010B-000 |
from US $0.76 |
||
|
11
|
11
08351-21008-000
Grease nipple
|
08351-21008-000 |
— | ||
| replacement | |||||
|
11
|
11
08351-2100A-000 NIPPLE |
08351-2100A-000 |
from US $2.40 |
||
