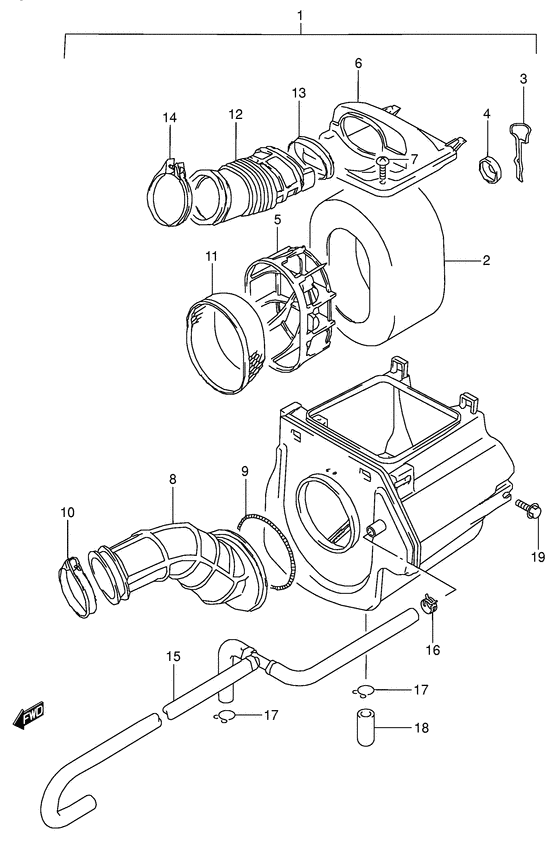

Air cleaner Diagram Suzuki LT-F160 QuadRunner
- Model code
- LT-F160 K5
- Engine Capacity
- 158
- Year
- 2005
- Sales region
- Australia (P24)
- Frame
- KM434AG43A*51100001~
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-02C01-000
CLEANER ASSY,AIR
|
13700-02C01-000 |
— | ||
| replacement | |||||
|
1
|
1
13700-02C02-000 Cleaner Assy,air |
13700-02C02-000 |
from US $248.40 |
||
|
2
|
2
13780-02C00-000 FILTER |
13780-02C00-000 |
from US $28 |
||
|
3
|
3
13823-20400-000 PIN,SNAPSnap pin Snap pin; |
13823-20400-000 |
from US $2.36 |
||
|
4
|
4
13796-20400-000 WASHER |
13796-20400-000 |
from US $2.36 |
||
|
5
|
5
13791-02C00-000 HOLDER,FILTER |
13791-02C00-000 |
from US $10.52 |
||
|
6
|
6
13740-02C00-000 CAP |
13740-02C00-000 |
from US $15.79 |
||
|
7
|
7
02142-05203-000
Screw
|
02142-05203-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
8
|
8
13881-02C00-000
TUBE,OUTLET
|
13881-02C00-000 |
— | ||
| replacement | |||||
|
8
|
8
13881-02C01-000 Tube,outlet |
13881-02C01-000 |
from US $44.16 |
||
|
9
|
9
13826-38300-000 CLAMP,AIR CLEANER SIDE |
13826-38300-000 |
from US $2.56 |
||
|
10
|
10
09402-46208-000 CLAMP |
09402-46208-000 |
from US $1.96 |
||
|
11
|
11
13810-02C00-000 TRAP |
13810-02C00-000 |
from US $19.87 |
||
|
12
|
12
13891-02C00-000 TUBE,INLET JOINTTube, inlet joint |
13891-02C00-000 |
from US $19.87 |
||
|
13
|
13
13898-02C00-000 RING |
13898-02C00-000 |
from US $3.53 |
||
|
14
|
14
09402-48208-000 CLAMP |
09402-48208-000 |
from US $2.24 |
||
|
15
|
15
13850-02C00-000 TUBE ASSY,BREATHERTube, breather |
13850-02C00-000 |
from US $15.79 |
||
|
16
|
16
09401-14404-000 CLIP |
09401-14404-000 |
from US $3.59 |
||
|
17
|
17
09401-14301-000 CLIPClip Clip; |
09401-14301-000 |
from US $2.13 |
||
|
18
|
18
13878-09F00-000
PLUG,DRAIN
Plug, drain; |
13878-09F00-000 |
— | ||
| replacement | |||||
|
18
|
18
13878-09F01-000 Plug,drainPlug, drain; |
13878-09F01-000 |
from US $4.38 |
||
|
19
|
19
09118-06017-000 BOLT(6X16)Bolt (6x16); |
09118-06017-000 |
from US $3.25 |
||
