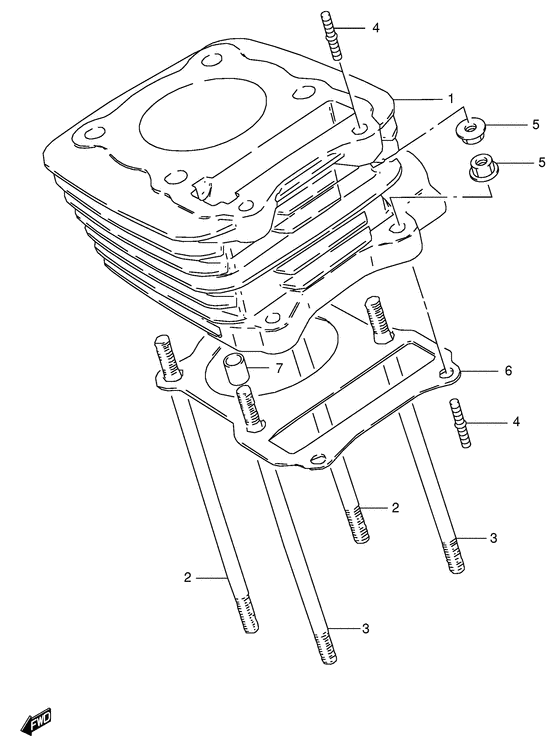

Cylinder Diagram Suzuki LT-F160 QuadRunner
- Model code
- LT-F160 K5
- Engine Capacity
- 158
- Year
- 2005
- Sales region
- Australia (P24)
- Frame
- KM434AG43A*51100001~
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11210-02C00-0F0 CYLINDER |
11210-02C00-0F0 |
from US $283.36 |
||
|
2
|
2
09108-08170-000 BOLT,STUDStud bolt (l:147); |
09108-08170-000 |
US $96.40 |
||
|
3
|
3
09108-08222-000 BOLT,STUDStud bolt (l:142) Stud bolt (l:142); |
09108-08222-000 |
US $50.80 |
||
|
4
|
4
01421-06203-000
Stud bolt (l:20)(green)
Stud bolt; |
01421-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0620A-000 BOLT,STUDStud bolt; |
01421-0620A-000 |
from US $1.12 |
||
|
5
|
5
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
11241-24402-000 GASKET,CYLINDERGasket, cylinder |
11241-24402-000 |
from US $11.85 |
||
|
7
|
7
04211-11149-000 PINPin; |
04211-11149-000 |
from US $1.12 |
||
