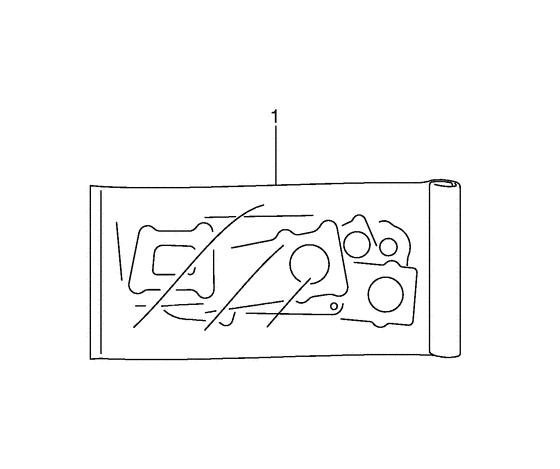

Gasket set Diagram Suzuki LT-F160 QuadRunner
- Model code
- LT-F160 K5
- Engine Capacity
- 158
- Year
- 2005
- Sales region
- Australia (P24)
- Frame
- KM434AG43A*51100001~
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11401-02844-000
Gasket set
Model k3/k4, opt |
11401-02844-000 |
— | ||
| replacement | |||||
|
1
|
1
11401-02846-000 GASKET SETModel k3/k4, opt |
11401-02846-000 |
from US $95.68 |
||
|
1
|
1
11401-02845-000
Gasket set
Model k5, opt |
11401-02845-000 |
— | ||
| replacement | |||||
|
1
|
1
11401-02846-000 GASKET SETModel k5, opt |
11401-02846-000 |
from US $95.68 |
||
|
1
|
1
11401-02846-000 GASKET SETModel k6/k7, opt |
11401-02846-000 |
from US $95.68 |
||
|
2
|
2
11141-02C01-000 GASKET,CYLINDER HEADGasket, cylinder head Not shown |
11141-02C01-000 |
from US $8.83 |
||
|
3
|
3
11241-24402-000 GASKET,CYLINDERGasket, cylinder Not shown |
11241-24402-000 |
from US $11.85 |
||
|
4
|
4
11482-02C10-000 GASKET,CLUTCH COVERGasket, clutch cover Not shown |
11482-02C10-000 |
from US $12.55 |
||
|
5
|
5
11483-02C10-000 GASKET,MAGNETO COVERGasket, magneto cover Not shown |
11483-02C10-000 |
from US $8.76 |
||
|
6
|
6
11495-02C10-000
Gasket,adjust c
Model k3/k4/k5, not shown |
11495-02C10-000 |
— | ||
| replacement | |||||
|
6
|
6
11495-02C11-000 GASKET,CL RLSE ADJ CAPModel k3/k4/k5, not shown |
11495-02C11-000 |
from US $4.38 |
||
|
6
|
6
11495-02C11-000 GASKET,CL RLSE ADJ CAPModel k6/k7, not shown |
11495-02C11-000 |
from US $4.38 |
||
|
7
|
7
12837-32410-000 GASKET,TENSIONER ADJUSTERGasket, adjuster Gasket, tensioner adjuster; Not shown |
12837-32410-000 |
from US $1.60 |
||
|
8
|
8
14181-02C01-000
GASKET,EXHAUST PIPE
Gasket, exhaust pipe; Not shown |
14181-02C01-000 |
— | ||
| replacement | |||||
|
8
|
8
14181-18C00-000 GASKET,EXHAUSTGasket, exhaust pipe Gasket, exhaust pipe; Not shown |
14181-18C00-000 |
from US $4.10 |
||
|
9
|
9
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); Not shown |
09168-06023-000 |
from US $1.51 |
||
|
10
|
10
09168-08008-000
GASKET(8.2X14X1)
Gasket (8.2x14x1); Not shown, model k3/k4 |
09168-08008-000 |
— | ||
| replacement | |||||
|
10
|
10
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) Gasket (8.2x14x1); Not shown, model k3/k4 |
09168-08016-000 |
from US $1.22 |
||
|
10
|
10
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) Gasket (8.2x14x1); Not shown, model k5/k6/k7 |
09168-08016-000 |
from US $1.22 |
||
|
11
|
11
09168-08013-000 GASKET(8.5X20X2.3)Gasket (8.5x20x2.3); Not shown, model k3/k4 |
09168-08013-000 |
from US $2.28 |
||
|
11
|
11
09168-08021-000 GASKET(8.5X17X2.3) CopperGasket (8.5x17x2.3) Gasket (8.5x17x2.3); Not shown, model k5/k6/k7 |
09168-08021-000 |
from US $1.22 |
||
|
12
|
12
09168-08015-000 GASKET(8.2X14X1.6)Gasket (8.2x14x1.6); Not shown |
09168-08015-000 |
from US $1.28 |
||
|
13
|
13
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket (14.1x18x1.5); Not shown, model k3/k4 |
09168-14004-000 |
from US $1.22 |
||
|
13
|
13
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket (13.8x18.8x4.8); Not shown, model k5/k6/k7 |
09168-14002-000 |
— | ||
| replacement | |||||
|
13
|
13
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket (13.8x18.8x4.8); Not shown, model k5/k6/k7 |
09168-14004-000 |
from US $1.22 |
||
|
14
|
14
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring (d:1.2,id:4.0); Not shown |
09280-04004-000 |
from US $1.82 |
||
|
15
|
15
09280-09005-000 O RING(D:1.9,ID:8.6)O ring (d:1.9,id:8.6); Not shown |
09280-09005-000 |
from US $1.67 |
||
|
16
|
16
09280-10016-000 O RING(D:1.9,ID:9.8)O ring O ring (d:1.9,id:9.8); Not shown |
09280-10016-000 |
from US $1.52 |
||
|
17
|
17
09280-12006-000 O RING(D:2.2,ID:11.8)O ring (d:2.2,id:11.8); Not shown |
09280-12006-000 |
from US $1.51 |
||
|
18
|
18
09280-13004-000 O-RING (D:1.9,ID:13)O ring (d:1.9,id:13.0); Not shown |
09280-13004-000 |
from US $1.31 |
||
|
19
|
19
09280-16008-000 O RING(D:3.2,ID:15.8)O ring (d:3.2,id:15.8) O ring (d:3.2,id:15.8); Not shown |
09280-16008-000 |
from US $2.75 |
||
|
20
|
20
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap O ring (d:3.1,id:16.8); Not shown |
09280-17003-000 |
from US $1.51 |
||
|
21
|
21
09280-21008-000 O RING(D:2.5,ID:21)O ring (d:2.5,id:21) O ring (d:2.5,id:21.0); Not shown |
09280-21008-000 |
from US $0.95 |
||
|
22
|
22
09280-24003-000 O RING(D:3,ID:24.5)O ring, outer O ring (d:3.0,id:24.5); Not shown, model k3/k4 |
09280-24003-000 |
from US $1.67 |
||
|
23
|
23
09280-26005-000 O RING(D:2.4,ID:26.2)O ring (d:2.4,id:26.2) O ring (d:2.4,id:26.2); Not shown |
09280-26005-000 |
from US $1.82 |
||
|
24
|
24
09280-30001-000 O RING(D:3,ID:29.5)O ring (d:3.0,id:29.5); Not shown |
09280-30001-000 |
from US $1.51 |
||
|
25
|
25
09280-30008-000 O RING(D:2.3,ID:29.7)O ring (d:2.3,id:29.7); Not shown |
09280-30008-000 |
from US $11.90 |
||
|
26
|
26
09280-54002-000 O RING(D:2.4,ID:53.6)O ring (d:2.4,id:53.6) O ring (d:2.4,id:53.6); Not shown |
09280-54002-000 |
from US $3.15 |
||
|
27
|
27
09280-60005-000 O RING(D:2.4,ID:60.5)O ring (d:2.4,id:60.5) O ring (d:2.4,id:60.5); Not shown |
09280-60005-000 |
from US $1.76 |
||
|
28
|
28
09280-70009-000 O RING(D:2.5,ID:71.9)O ring (d:2.5,id:71.9) O ring (d:2.5,id:71.9); Not shown |
09280-70009-000 |
from US $7.43 |
||
