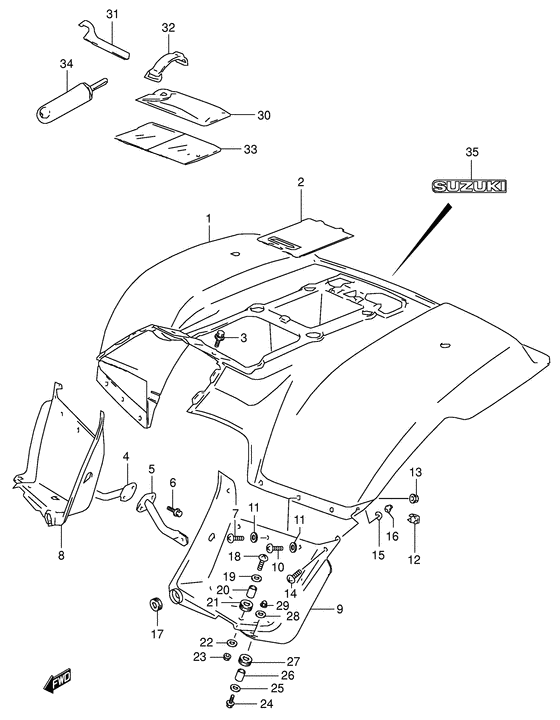

Rear fender Diagram Suzuki LT-F160 QuadRunner
- Model code
- LT-F160 K5
- Engine Capacity
- 158
- Year
- 2005
- Sales region
- Australia (P24)
- Frame
- KM434AG43A*51100001~
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-02C21-YU1
FENDER,RR
Fender, rear (yellow); |
63111-02C21-YU1 |
— | ||
| replacement | |||||
|
1
|
1
63111-02C01-YU1
Fender,rear
Fender, rear (yellow); |
63111-02C01-YU1 |
— | ||
|
2
|
2
63171-02C00-291
COVER,RR FENDER
Cover, fender (black); |
63171-02C00-291 |
— | ||
|
3
|
3
09118-06017-000 BOLT(6X16) |
09118-06017-000 |
from US $3.25 |
||
|
4
|
4
63140-02C00-000 REINF,RR FENDER,RReinforcement, rh |
63140-02C00-000 |
US $18.95 |
||
|
5
|
5
63150-02C00-000
REINF,RR FENDER,L
|
63150-02C00-000 |
— | ||
|
6
|
6
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
02142-06203-000
Screw
|
02142-06203-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0620A-000 SCREW |
02142-0620A-000 |
from US $0.68 |
||
|
8
|
8
63330-02C10-291 BODY,MUDGUARD,RBody, mud guard rh (black) Body, mud guard rh (black); |
63330-02C10-291 |
US $52.62 |
||
|
9
|
9
63340-02C10-291
BODY,MUDGUARD,L
Body, mud guard lh (black); |
63340-02C10-291 |
— | ||
|
10
|
10
09136-06004-000 SCREW(6X12) |
09136-06004-000 |
from US $0.77 |
||
|
11
|
11
09160-06109-000 WASHER(6.5X18X1.6)Model k3/k4/k5/k6 |
09160-06109-000 |
from US $0.80 |
||
|
11
|
11
09160-06156-000 WASHER(6.5X18X1.6)Model k7 |
09160-06156-000 |
from US $3.08 |
||
|
12
|
12
09146-06003-000 NUT |
09146-06003-000 |
from US $3.35 |
||
|
13
|
13
08319-31067-000 NUTNut, center Nut, center; |
08319-31067-000 |
from US $1.44 |
||
|
14
|
14
02142-05123-000
Screw 5x12
Screw; |
02142-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0512A-000 SCREWScrew, lower Screw; |
02142-0512A-000 |
from US $0.80 |
||
|
15
|
15
08322-01053-000
Washer
|
08322-01053-000 |
— | ||
| replacements | |||||
|
15
|
15
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
15
|
15
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
16
|
16
08319-31053-000
Nut
|
08319-31053-000 |
— | ||
| replacement | |||||
|
16
|
16
08319-3105B-000 NUT |
08319-3105B-000 |
from US $1.37 |
||
|
17
|
17
09320-08021-000
CUSHION
|
09320-08021-000 |
— | ||
| replacement | |||||
|
17
|
17
09320-08510-000 Cushion(8.5X20X8) |
09320-08510-000 |
from US $1.82 |
||
|
18
|
18
02142-05203-000
Screw
|
02142-05203-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
19
|
19
09160-05037-000 WASHER(5.5X16X1.2)Washer; |
09160-05037-000 |
from US $0.91 |
||
|
20
|
20
09180-06248-000 SPACER(6.1X8X9.5) |
09180-06248-000 |
from US $1.68 |
||
|
21
|
21
09320-08013-000
CUSHION
|
09320-08013-000 |
— | ||
| replacement | |||||
|
21
|
21
09320-08509-000 Cushion(8X22X7) |
09320-08509-000 |
from US $1.98 |
||
|
22
|
22
09160-05501-000 WASHER(5.5X20X1.2)Washer (5.5x20x1.2) Model k3/k4/k5/k6 |
09160-05501-000 |
from US $0.76 |
||
|
22
|
22
09160-05051-000 WASHER(5.5X20X1.2)Model k7 |
09160-05051-000 |
US $11.40 |
||
|
23
|
23
08319-31053-000
Nut
|
08319-31053-000 |
— | ||
| replacement | |||||
|
23
|
23
08319-3105B-000 NUT |
08319-3105B-000 |
from US $1.37 |
||
|
24
|
24
01550-05163-000
Screw, sensor lead
|
01550-05163-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-0516B-000 BOLT |
01550-0516B-000 |
from US $3.94 |
||
|
25
|
25
09160-05501-000 WASHER(5.5X20X1.2)Washer (5.5x20x1.2) Model k3/k4/k5/k6 |
09160-05501-000 |
from US $0.76 |
||
|
25
|
25
09160-05051-000 WASHER(5.5X20X1.2)Model k7 |
09160-05051-000 |
US $11.40 |
||
|
26
|
26
09180-06248-000 SPACER(6.1X8X9.5) |
09180-06248-000 |
from US $1.68 |
||
|
27
|
27
09320-08013-000
CUSHION
|
09320-08013-000 |
— | ||
| replacement | |||||
|
27
|
27
09320-08509-000 Cushion(8X22X7) |
09320-08509-000 |
from US $1.98 |
||
|
28
|
28
09160-05037-000 WASHER(5.5X16X1.2)Washer; |
09160-05037-000 |
from US $0.91 |
||
|
29
|
29
08313-10053-000
Nut
|
08313-10053-000 |
— | ||
| replacement | |||||
|
29
|
29
08313-1005B-000 NUT |
08313-1005B-000 |
from US $3.69 |
||
|
30
|
30
09800-21019-000
TOOL ASSY
|
09800-21019-000 |
— | ||
| replacement | |||||
|
30
|
30
09800-21075-000 Tool Assy |
09800-21075-000 |
US $51.07 |
||
|
31
|
31
09822-00004-000 CLAMPClamp, wrench Clamp, wrench; |
09822-00004-000 |
from US $16.56 |
||
|
32
|
32
09462-000E6-000
Band
|
09462-000E6-000 |
— | ||
| replacement | |||||
|
32
|
32
09462-00046-000 BANDBand, battery |
09462-00046-000 |
from US $5.32 |
||
|
33
|
33
94980-01C01-000 BAG,OWNER'S MANUALBag, manual (150x296); |
94980-01C01-000 |
US $22.42 |
||
|
34
|
34
96200-18A02-000 GAUGE ASSY,AIR PRESSUREGuage assy, air Gauge, air; |
96200-18A02-000 |
US $67.61 |
||
|
35
|
35
68111-19B30-HW1 EMBLEM,SUZUKI |
68111-19B30-HW1 |
US $15.64 |
||
