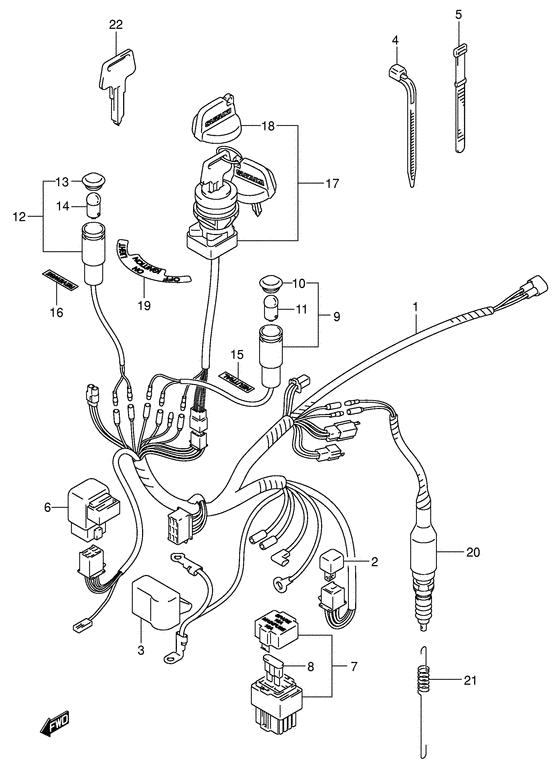

Wiring harness Diagram Suzuki LT-F160 QuadRunner
- Model code
- LT-F160 K5
- Engine Capacity
- 158
- Year
- 2005
- Sales region
- Australia (P24)
- Frame
- KM434AG43A*51100001~
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-02C60-000 HARNESS,WIRING |
36610-02C60-000 |
US $300.12 |
||
|
2
|
2
32800-16A00-000 Rectifier AssyRectifier assy Rectifier assy; |
32800-16A00-000 |
from US $15.97 |
||
|
3
|
3
33624-02C00-000
CAP,BATTERY PLUS TERMINAL
Cap, battery (+); |
33624-02C00-000 |
— | ||
|
4
|
4
09407-11401-000 CLAMP(L:95)Clamp, stator lead Clamp (l:95); |
09407-11401-000 |
from US $1.76 |
||
|
4
|
4
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); |
09407-14403-000 |
from US $2.08 |
||
|
4
|
4
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $1.98 |
||
|
4
|
4
09407-25401-000 CLAMP(L:235)Clamp (l:235) Clamp (l:235); |
09407-25401-000 |
from US $2.08 |
||
|
5
|
5
09407-12402-000 CLAMP(L:120)Clamp, wiring harness Clamp; |
09407-12402-000 |
from US $1.98 |
||
|
6
|
6
38740-24X50-000 RELAY ASSYRelay, neutral start Relay, neutral start; |
38740-24X50-000 |
from US $25.08 |
||
|
7
|
7
36740-04701-000 BOX ASSY,FUSE |
36740-04701-000 |
from US $24.80 |
||
|
8
|
8
09481-15101-000 FUSE(15A)Fuse (15a) Fuse (15a); |
09481-15101-000 |
from US $1.28 |
||
|
9
|
9
36320-02C00-000
LAMP ASSY,NEUTRAL
|
36320-02C00-000 |
— | ||
|
10
|
10
36321-43000-000 LENS |
36321-43000-000 |
from US $3.86 |
||
|
11
|
11
09471-12001-000 SPEEDOMETER BULB(12V3.4W,STANLEY,A72A)Bulb (12v,3.4w) Bulb (12v,3.4w); |
09471-12001-000 |
from US $1.92 |
||
|
12
|
12
36360-02C00-000
LAMP ASSY,REVERSE
|
36360-02C00-000 |
— | ||
|
13
|
13
36361-43200-000 LENS |
36361-43200-000 |
from US $2.83 |
||
|
14
|
14
09471-12001-000 SPEEDOMETER BULB(12V3.4W,STANLEY,A72A)Bulb (12v,3.4w) Bulb (12v,3.4w); |
09471-12001-000 |
from US $1.92 |
||
|
15
|
15
36367-02C00-000 LABEL,NEUTRAL |
36367-02C00-000 |
US $4.98 |
||
|
16
|
16
36367-02C10-000 LABEL,REVERSE |
36367-02C10-000 |
US $4.98 |
||
|
17
|
17
37110-02C00-000
SWITCH ASSY,IGNITION
|
37110-02C00-000 |
— | ||
| replacement | |||||
|
17
|
17
37110-02C01-000 Switch Assy,ignition |
37110-02C01-000 |
from US $126.09 |
||
|
18
|
18
37142-19B00-000
MASCOT,KEY
Mascot, key; |
37142-19B00-000 |
— | ||
| replacement | |||||
|
18
|
18
37142-19B01-000 Mascot,keyMascot, key; |
37142-19B01-000 |
from US $5.76 |
||
|
19
|
19
37139-02C01-000 PLATE,CONTROL INDENTIFICATIONLabel, contral identification Label, control identification; |
37139-02C01-000 |
US $7.51 |
||
|
20
|
20
37740-25C01-000 SWITCH ASSY,STOP LAMP |
37740-25C01-000 |
from US $59.98 |
||
|
21
|
21
09443-06058-000
Spring
Spring, stop lamp; |
09443-06058-000 |
— | ||
| replacement | |||||
|
21
|
21
09443-06088-000 SPRINGSpring, stop lamp; |
09443-06088-000 |
from US $7.33 |
||
|
22
|
22
37146-19B00-000 KEY,BLANK(TYPE:C)Key, blank type c Key, blank (type:c); Opt |
37146-19B00-000 |
from US $8.32 |
||
|
22
|
22
37146-19B10-000 KEY,BLANK(TYPE:D)Key, blank type d Key, blank (type:d); Opt |
37146-19B10-000 |
from US $4.82 |
||
|
22
|
22
37146-19B20-000 KEY,BLANK(TYPE:E)Key, blank (type:e); Opt |
37146-19B20-000 |
from US $4.82 |
||
|
22
|
22
37146-19B30-000 KEY,BLANK(TYPE:F)Key, blank (type:f); Opt |
37146-19B30-000 |
from US $8.32 |
||
